Adattatore modulo di trasferimento DeLOCK M12 17 poli codifica A maschio su morsettiera a 18 poli

The DeLOCK M12 Transfer Module Adapter provides a compact and secure interface between devices with a 17-pin A-coded male M12 connector and electrical circuits using an 18-pin terminal block. Designed for industrial and automation environments, the adapter simplifies wiring and supports reliable signal and power transmission while occupying minimal space for installation in switch cabinets and other confined areas.

Advantages

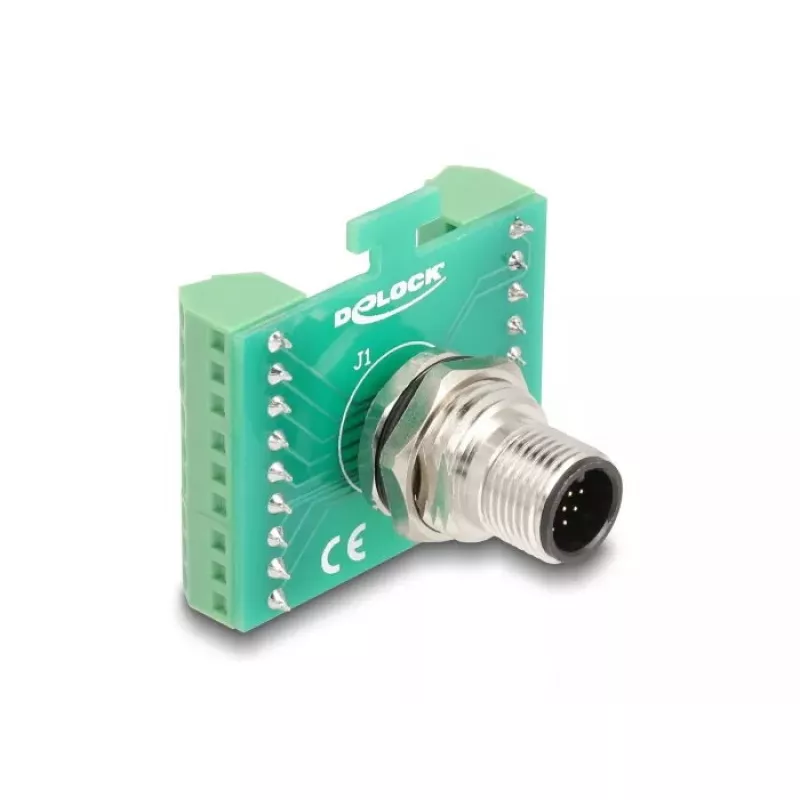

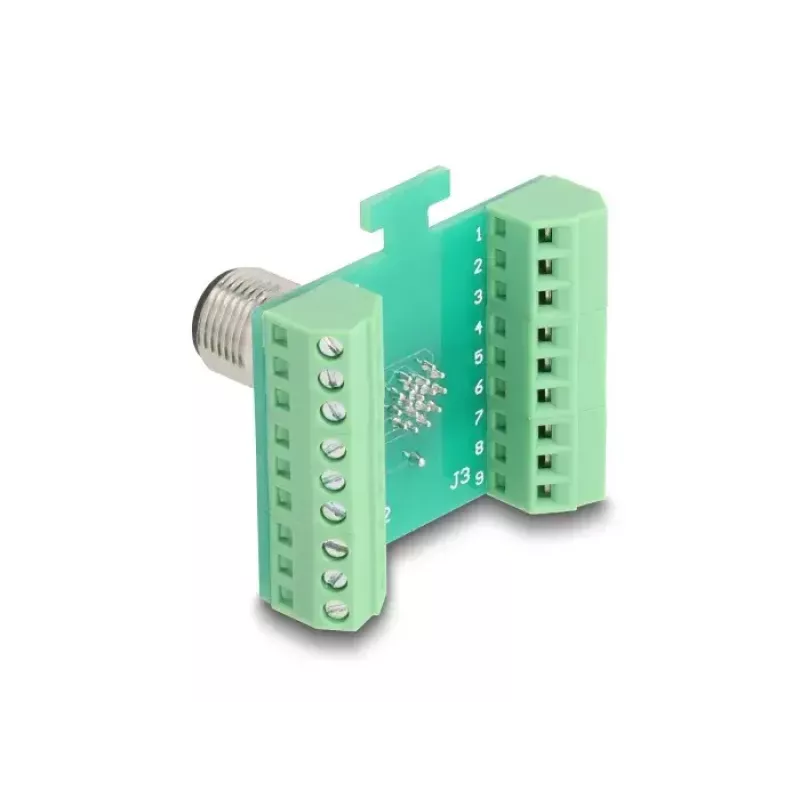

The adapter combines a 17-pin A-coded male M12 connector with an 18-pin terminal block in a compact green housing, enabling straightforward field wiring without additional converters. Its robust M12 connection ensures secure mating and stable contact, while the terminal block allows easy access to individual conductors for testing, maintenance, or custom wiring schemes.

Suitable for

• Industrial automation equipment
• Building automation systems
• Control cabinets and switchgear with limited space
• Field wiring, maintenance and testing tasks

Key specifications

• Connector: 17-pin A-coded male M12
• Terminal block: 18-pin screw/terminal connection
• Colour: Green
• Brand: DELOCK, MPN: 60661, EAN: 4043619606610

How to use

Connect the M12 male connector of the adapter to the corresponding A-coded M12 female port on the device until the connector is fully engaged. Secure individual conductors in the 18-pin terminal block according to the wiring diagram or application requirements, tightening the terminal screws to ensure reliable electrical contact. Install the adapter in the switch cabinet or mounting location, allowing sufficient clearance for cable routing and service access.

Recommendations

Use the adapter in environments compatible with M12 connector specifications and ensure correct pin assignment before applying power. Verify tightness of terminal screws after initial installation and after any maintenance to maintain reliable connections.
