InLine 69927W Accoppiatore di rete IP68, 3 poli, spina/presa, M20, nero

The InLine 69927W is an IP68 mains coupler with a 3-pin plug/socket connection, designed for secure and weatherproof power connections. It features gold-plated copper contacts for high conductivity and a robust nylon (PA66) housing with silicone seal, suitable for fine cables with a diameter of 4–14 mm and cross-sections up to 6 mm².

Key features

• IP68 protection against water and dust

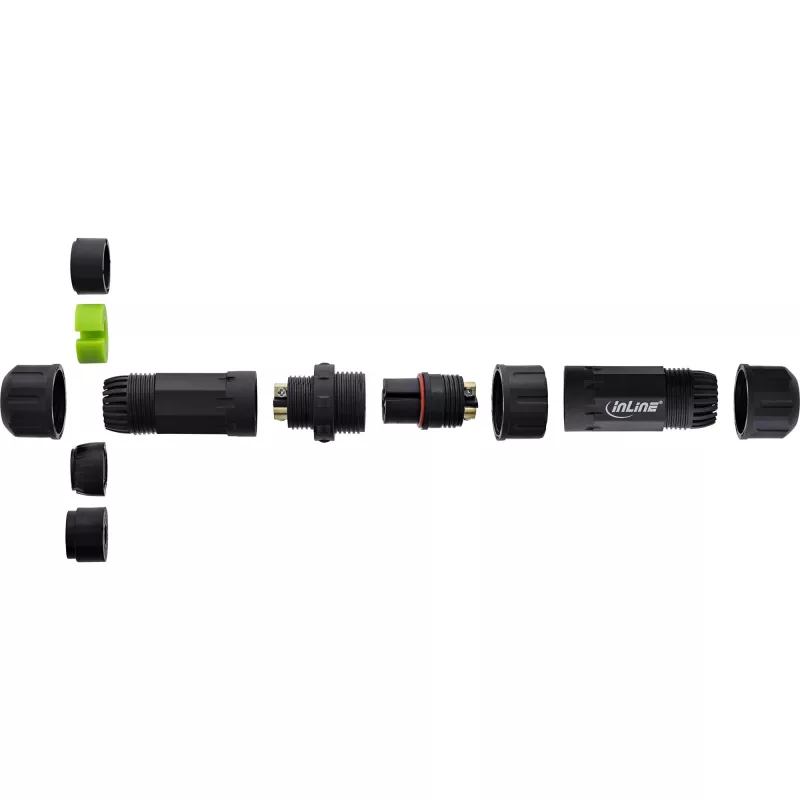

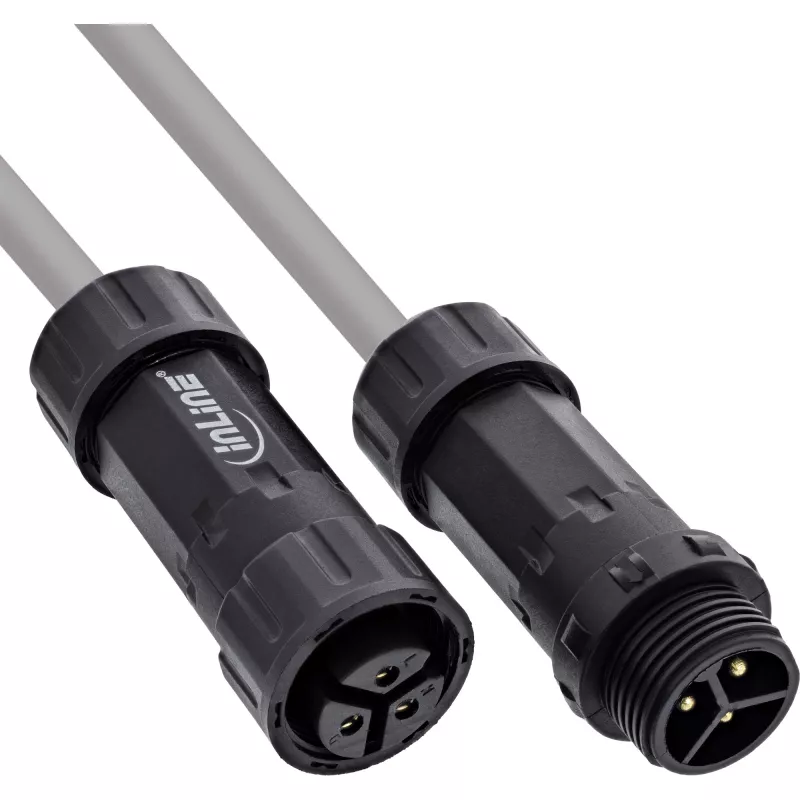

• 3-pin plug/socket connection with screw system and snap-lock

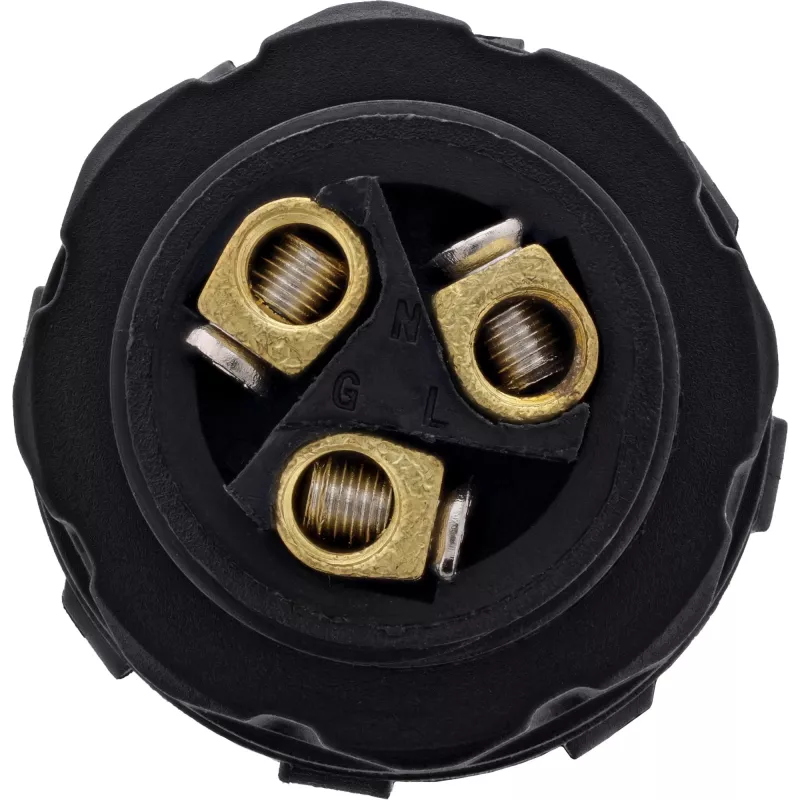

• Gold-plated copper contacts for high conductivity

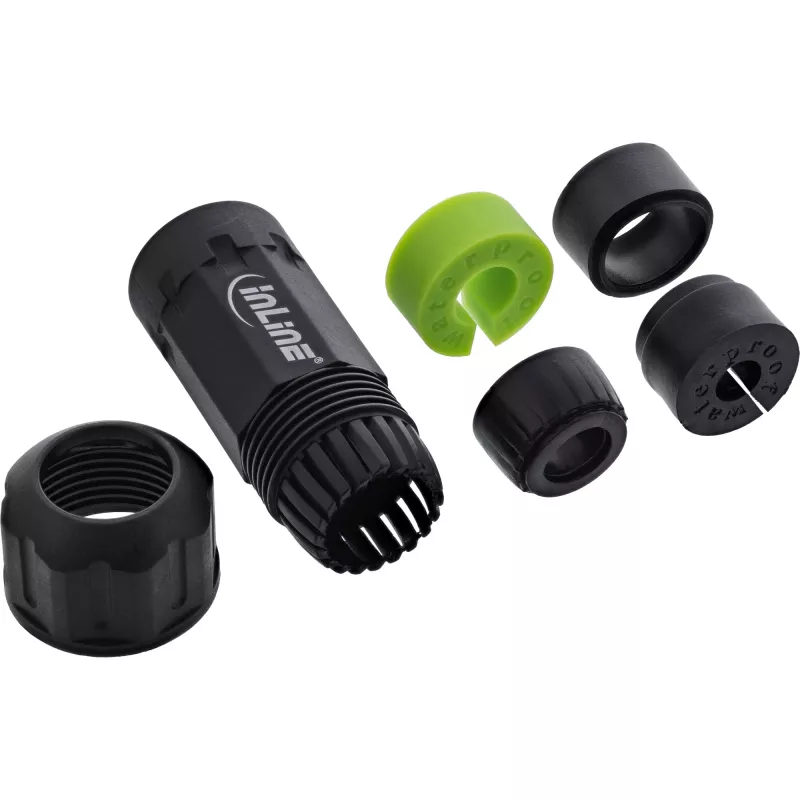

• Robust nylon (PA66) housing with silicone seal
• Suitable for cable diameters from 4–14 mm and cross-sections up to 6 mm²
• Temperature range: -40 °C to +105 °C

Specifications

• Brand: InLine
• MPN: 69927W
• Product colour: Black
• Material: Nylon (PA66)
• Thread size: M20
• Contact material: Gold-plated copper contacts
• Seal: Silicone
• Temperature range: -40 °C to +105 °C
• IP protection rating: IP68
• Cable diameter: 4–14 mm
• Conductor cross-section: 0.5–6 mm²
• Design: 2-way (plug/socket)
• Number of poles: 3-pole
• Rated voltage: 500 V
• Rated current: 20 A
• Variant: IP68
• Side A: 3-pin screw connection
• Side B: 3-pin screw connection
• Country of origin: Taiwan
