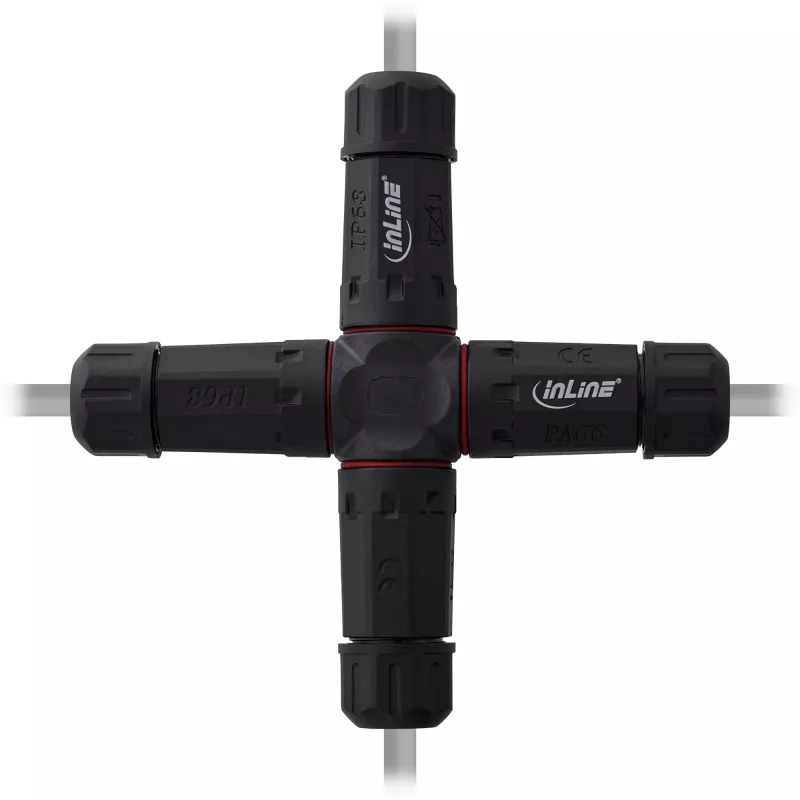

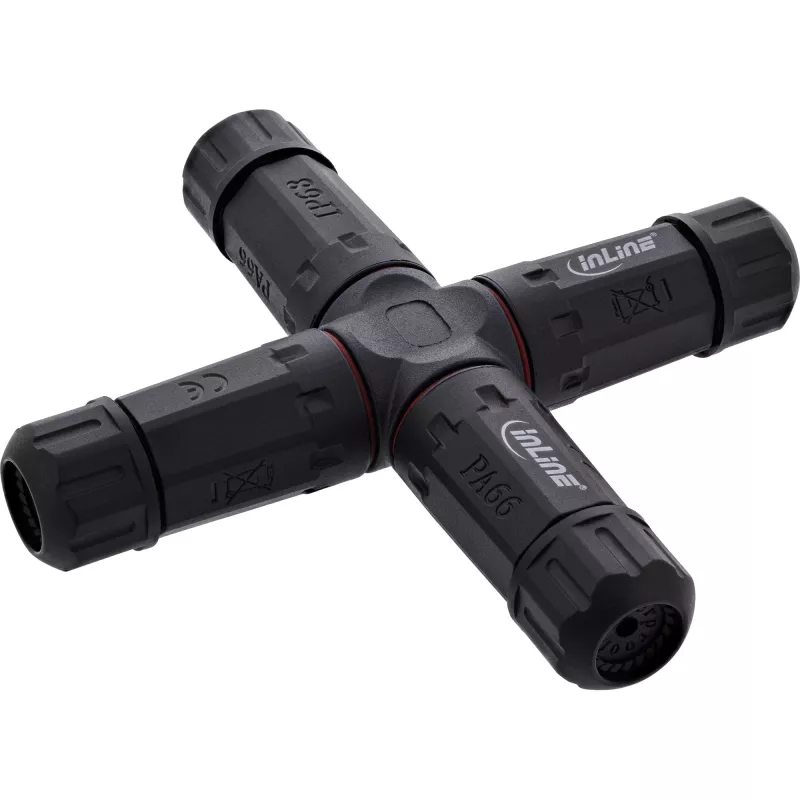

InLine 69927V Accoppiatore di rete IP68, 3 poli, a 4 vie (croce), M20, nero

The InLine 69927V is an IP68 mains coupler with 4-way cross distribution for 3-core cables. It is designed for structured power distribution outdoors or in damp rooms, with a silicone seal and nylon housing.

Key features

• 4-way cross distribution for 3-core cables
• IP68 protection rating

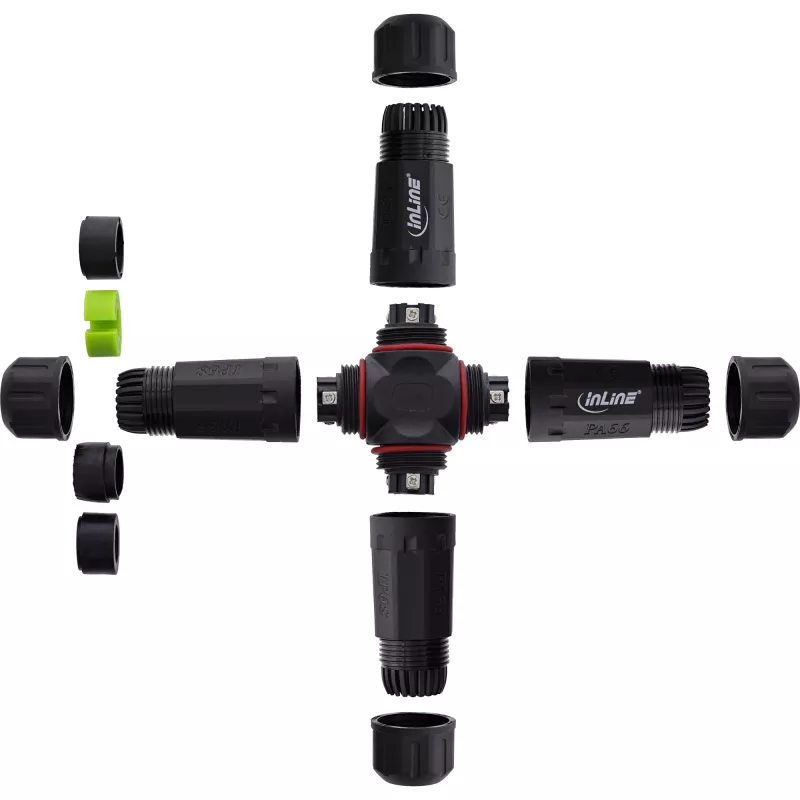

• Tool-free installation with screw cap system
• Nylon (PA66) housing
• Copper contacts

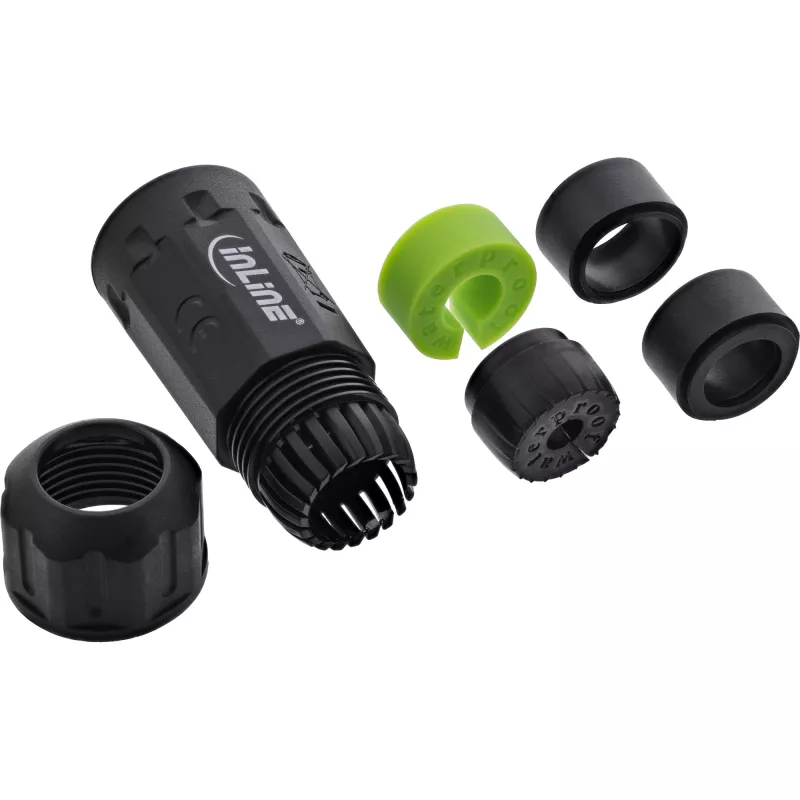

• Silicone seal
• Suitable for cable diameters 4–14 mm and conductor cross-sections 0.5–6 mm²
• Rated for up to 500 V and 24 A

Specifications

• Brand: InLine
• MPN: 69927V
• Product colour: Black
• Design: 4-way
• Number of poles: 3-pole
• Thread size: M20
• Material: Nylon (PA66)
• Contact material: Copper
• Seal: Silicone
• Temperature range: -40 °C to +105 °C
• IP protection rating: IP68
• Cable diameter: 4–14 mm
• Conductor cross-section: 0.5–6 mm²
• Rated voltage: 500 V
• Rated current: 24 A

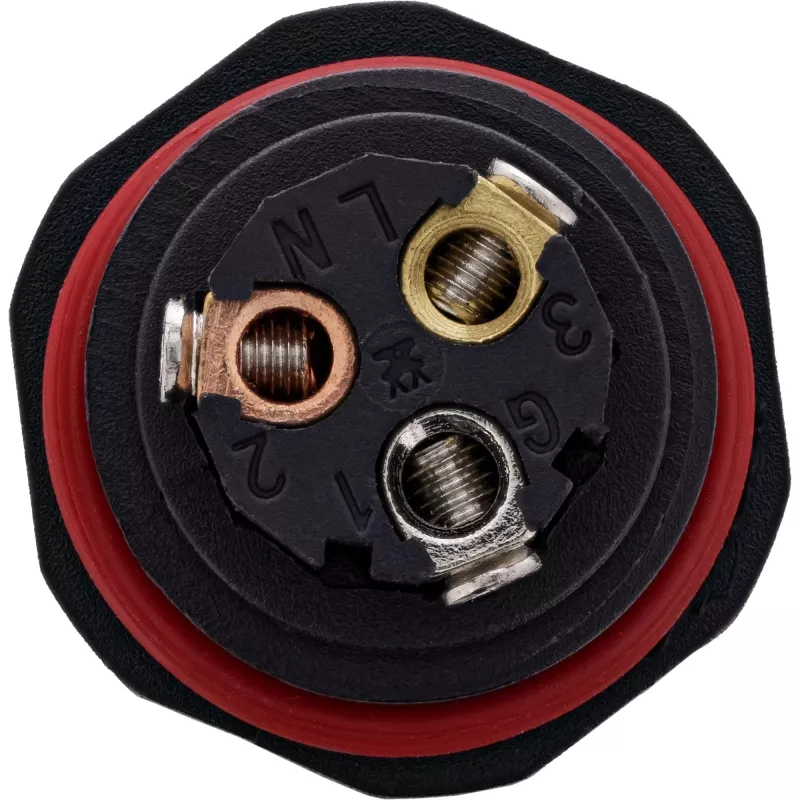

• Side A: 3-pin screw connection
• Side B: 3-pin screw connection
