Adattatore PoE Axis 02208-001

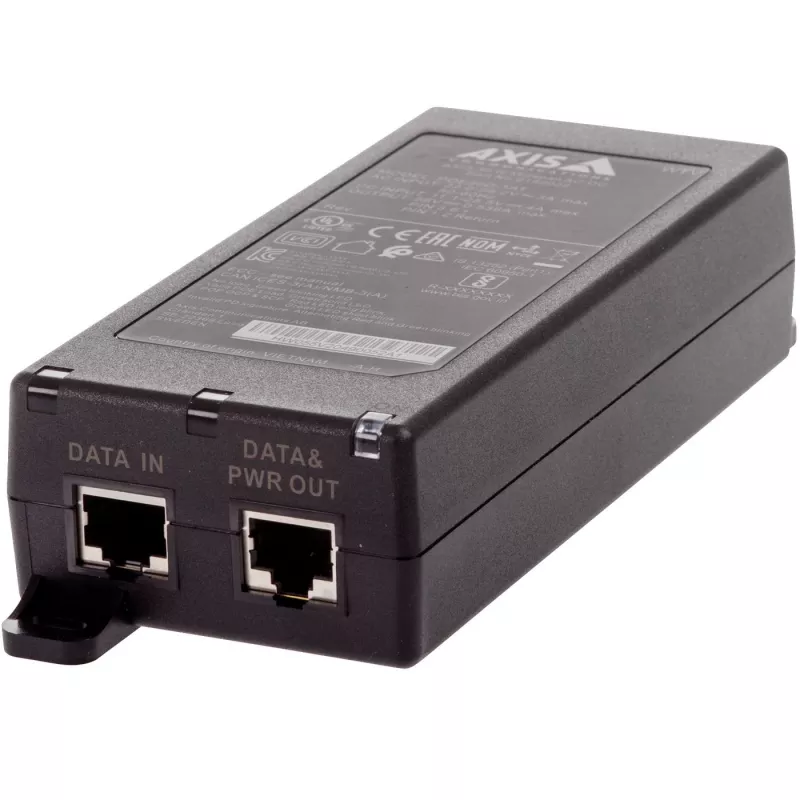

AXIS 30 W Midspan AC/DC (model 02208-001) is a compact PoE adapter designed to deliver up to IEEE 802.3at (30 W) when mains power is not available. It accepts 10–28 V DC or 24 V AC input and supports Fast and Gigabit Ethernet data rates of 10/100/1000 Mbit/s. The adapter provides 56 V PoE output and is suitable for retrofitting box, dome or PTZ cameras, battery-backed installations, solar-powered systems, or devices powered from other equipment.

Advantages

The PoE adapter supports both DC and AC input ranges, allowing flexible installation in environments where new cabling is impractical. It supplies up to 30 W per IEEE 802.3at and supports 10/100/1000 Mbit/s, ensuring compatibility with Fast and Gigabit Ethernet networks. Its compact dimensions and lightweight design make integration into existing setups straightforward. The adapter is compatible with devices that require 24 V AC or 10–28 V DC input sources, including retrofit camera installations and solar or battery-backed systems.

Suitable for

• Retrofitting box, dome and PTZ cameras where 24 V AC cabling is present
• Battery-backed or solar-powered network devices using 10–28 V DC
• Network devices built into other equipment and powered directly from that equipment
• Fast and Gigabit Ethernet links (10/100/1000 Mbit/s) requiring PoE

Key specifications

• Model: AXIS 30 W Midspan AC/DC (02208-001)
• PoE output standard: up to IEEE 802.3at (30 W)
• PoE output voltage: 56 V
• Input voltage: 10–28 V DC or 24 V AC
• Ethernet data rates: 10/100/1000 Mbit/s
• Ethernet ports: 2 (RJ-45)
• Colour: Black
• Weight: 0.233 kg
• Dimensions (W×D×H): 65 × 164 × 37 mm

How to use

Connect the AXIS 30 W Midspan AC/DC to the available 10–28 V DC source or a 24 V AC source depending on your installation. Plug the adapter into the network link using the RJ-45 ports and connect the powered device (camera or other network device) to the PoE-enabled port. Ensure the device supports IEEE 802.3at power classification and that cabling and connectors are in good condition. For devices integrated into other equipment, verify correct voltage and polarity before connecting.

Recommendations

Use 24 V AC input for retrofit camera installations where replacing cabling is not feasible. Choose 10–28 V DC input for battery-backed or solar installations and verify that the connected device accepts IEEE 802.3at power levels. Ensure proper grounding and follow local electrical regulations when installing the adapter.
