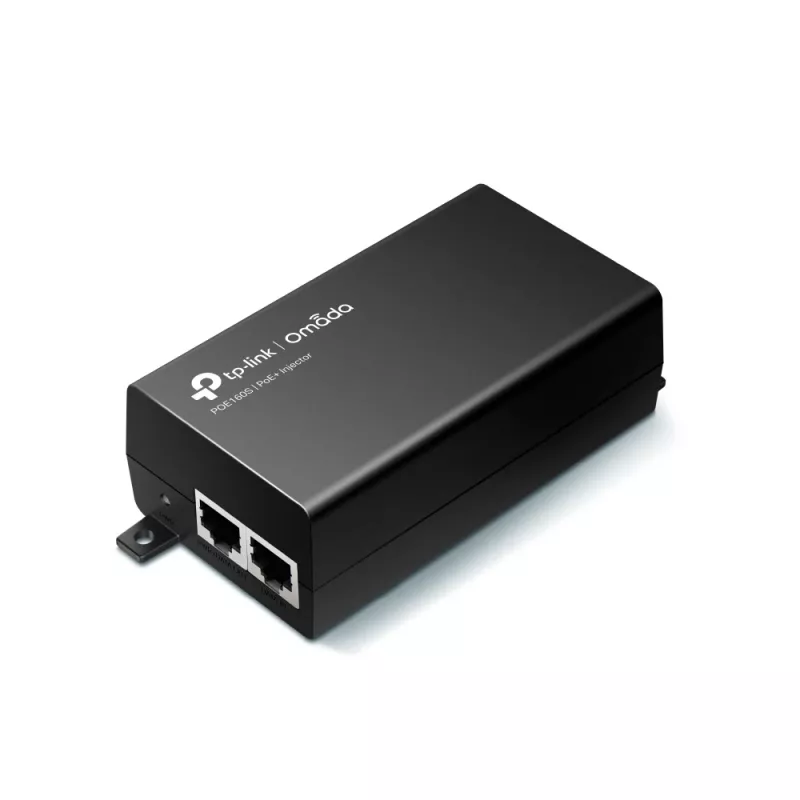

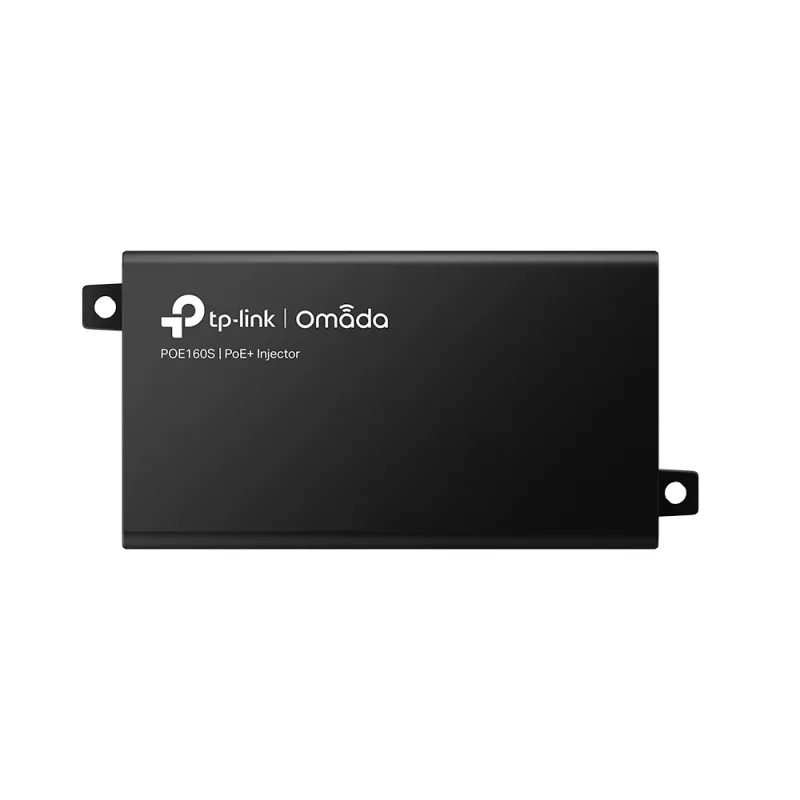

Iniettore PoE+ TP-Link TL-PoE160S

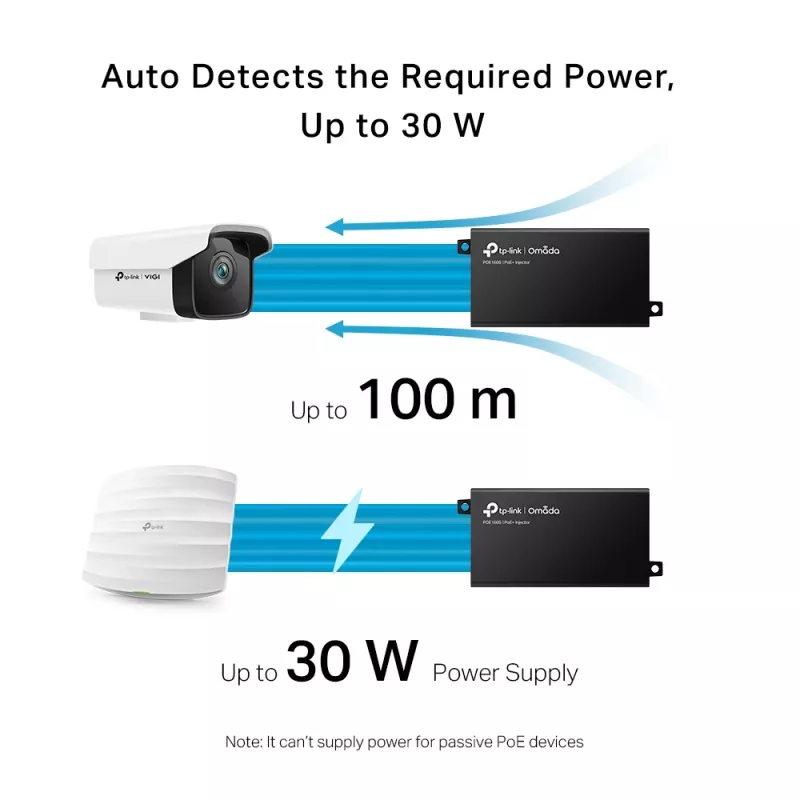

The PoE+ Injector TL-POE160S complies with IEEE 802.3af/at standards and supplies both power and data over a single Ethernet cable to compatible devices. It enables installation of devices such as access points, IP cameras, or IP phones in locations without a nearby power outlet by providing PoE power to IEEE 802.3af/at powered devices or PoE receiver adapters like TP-Link TL-POE10R.

Advantages

The TL-POE160S simplifies deployment by eliminating the need for separate power wiring and allows flexible placement of network devices. It is compatible with IEEE 802.3af/at PoE devices and common PoE receiver adapters, enabling easy expansion of network coverage without additional electrical work.

Key specifications

• Standards: IEEE 802.3af/at compliant
• Function: Power over Ethernet (PoE+) injector
• Compatibility: Works with IEEE 802.3af/at PDs and PoE receiver adapters (e.g., TP-Link TL-POE10R)
• Uses: Power and data delivery to APs, IP cameras, IP phones, and similar devices

How to use

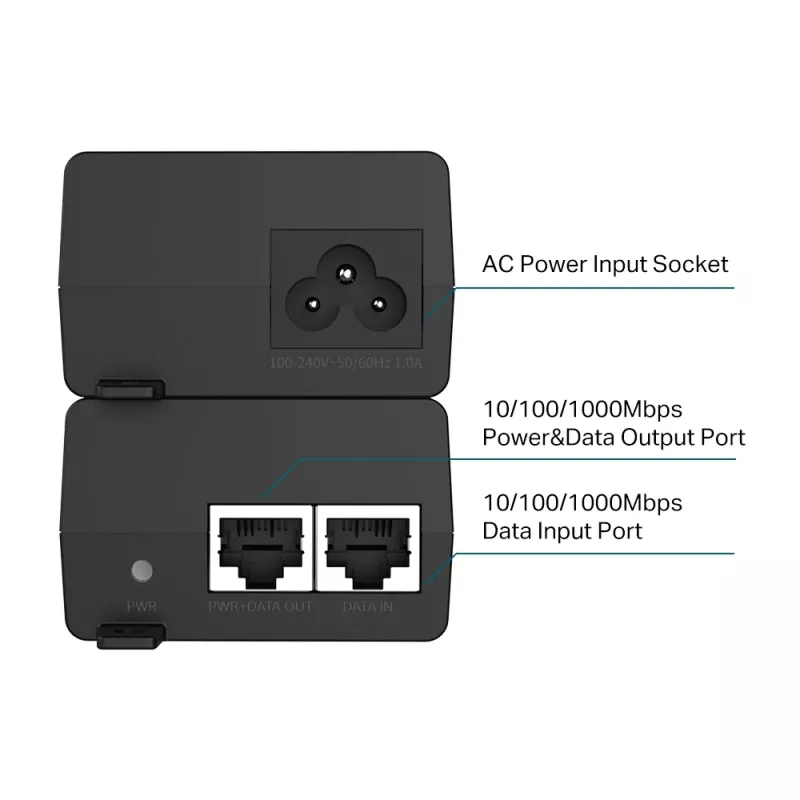

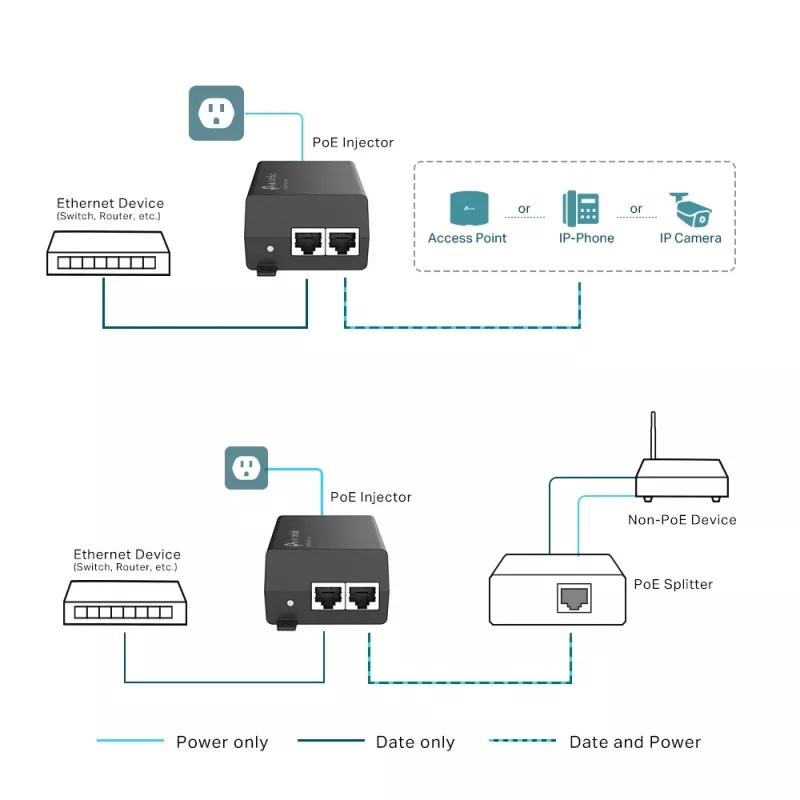

Connect the TL-POE160S to a network switch or router using the data input Ethernet port, then connect the PoE output port to the powered device or PoE receiver adapter with a single Ethernet cable. Plug the injector into mains power to deliver power and data to the connected PD over the Ethernet cable.

Recommendations

Use with IEEE 802.3af/at compliant devices or compatible PoE receiver adapters and follow manufacturer instructions for maximum cable length, power budget, and installation safety.
