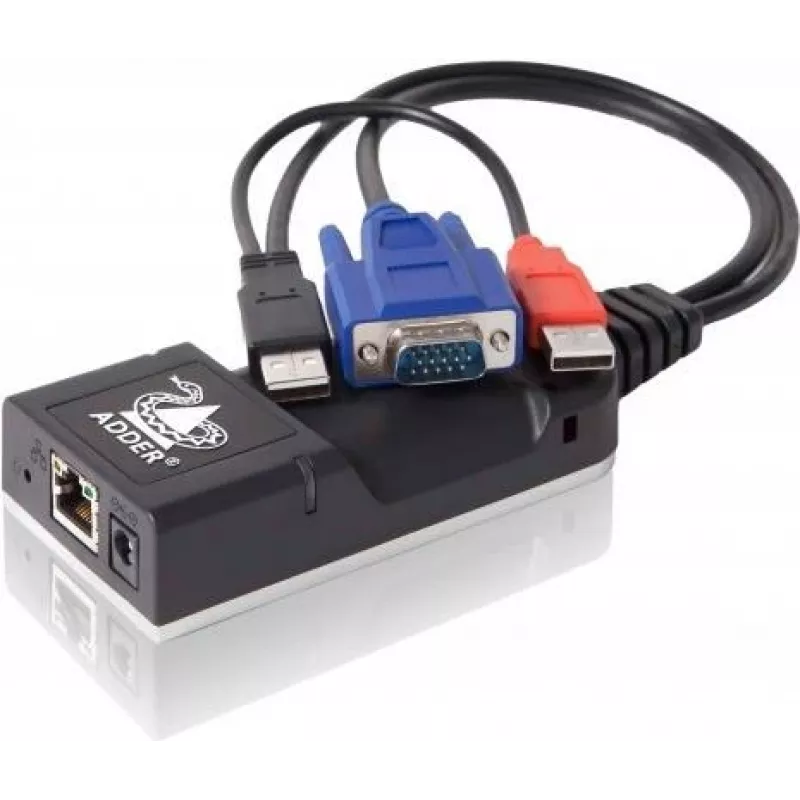

Adder ADDERlink 100T modulo di accesso computer (CAM) VGA per ADDERLink INFINITY KVM ALIF100T-VGA

The Adder ADDERlink 100T VGA CAM stands apart from generic KVM dongles by integrating a VGA video input, USB 2.0, and stereo audio into a single rugged metal module that connects directly to the ADDERLink INFINITY KVM-over-IP platform. It delivers pixel-perfect video up to 1920 x 1200 at 60 Hz with near-zero latency, making it ideal for control rooms, broadcast, and industrial environments where every frame and keystroke matters.

Highlights

• Integrated VGA, USB 2.0, and stereo audio connections
• Supports resolutions up to 1920 x 1200 @ 60 Hz with EDID management
• Powered via USB or KVM link – no external power supply needed
• Robust metal casing for demanding professional use
• Compatible with ADDERLink INFINITY KVM over IP extenders

In daily use

Connect the CAM to a computer's VGA and USB ports, then run a single RJ45 cable to your ADDERLink INFINITY switch or extender. The module handles keyboard, mouse, mass storage, and audio transparently, so operators can work as if they were sitting directly at the machine. Hot-plugging and automatic EDID capture simplify setup, while the compact form factor keeps cable clutter to a minimum.

Full specifications

• Product type: KVM Computer Access Module (CAM)
• Video input: 1x VGA male (integrated cable)
• USB input: 1x USB Type B male (integrated cable)
• Audio: 2x 3.5 mm jacks (line in / line out)
• KVM link: 1x RJ45 Ethernet
• Maximum video resolution: 1920 x 1200 @ 60 Hz
• USB version: 2.0 (HID, mass storage, and other devices)
• Power source: USB or KVM link
• Chassis material: Metal
• Product colour: Black
• Operating temperature: 0 to 40 °C
• Storage temperature: -20 to 60 °C
• Operating relative humidity: 0 to 90 % non-condensing
• Storage relative humidity: 0 to 90 % non-condensing

Final note

For mission-critical KVM deployments, the ADDERlink 100T VGA CAM offers the reliability and signal integrity that only a dedicated, manufacturer-tested module can provide.
