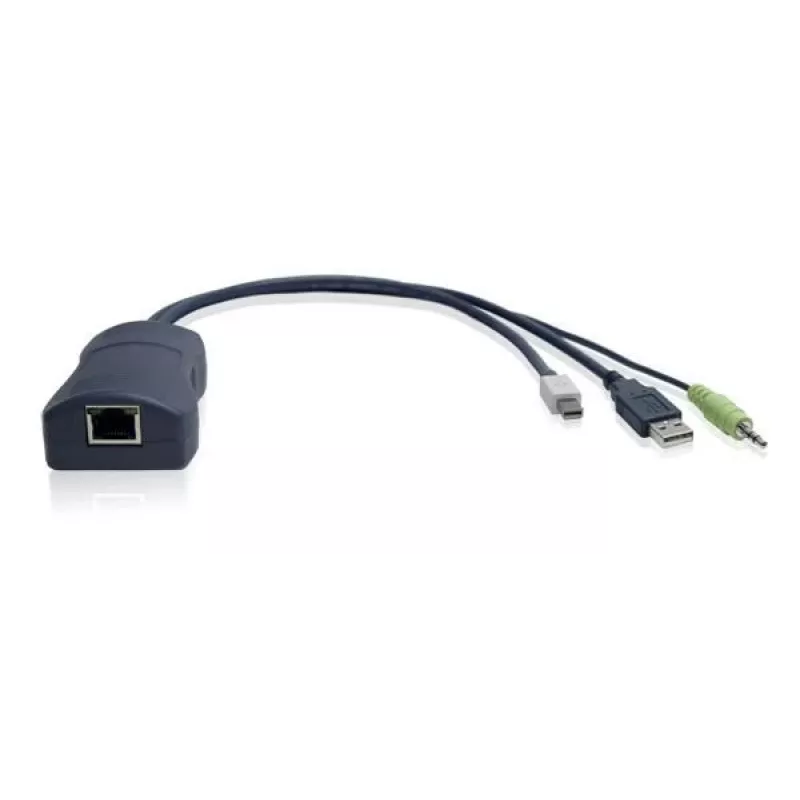

Dongle ADDER CAT-X DVI-D USB modulo di accesso computer per KVM extender

Extending high-quality video and USB keyboard/mouse signals over long distances can be a challenge in professional AV and IT environments. The ADDER CAT-X Dongle solves this by converting a computer's DVI-D video and USB HID signals into a format that travels reliably over standard CATx cabling, enabling remote console access up to 300 metres away.

Who is it for

This dongle is ideal for system administrators, broadcast engineers, and control room operators who need to manage computers from a distance without sacrificing video clarity or USB responsiveness. It is a perfect companion for existing AdderLink CATX series KVM extenders.

Main features

• DVI-D single-link video input supporting resolutions up to 1920 x 1200 @ 60Hz
• USB Type-A connector for keyboard and mouse (USB 2.0 low/full speed)
• RJ45 output for CAT5e, CAT6, or CAT7 UTP cable
• Bus-powered from host computer's USB port – no external power supply needed
• Extends up to 50 m at full WUXGA resolution, or up to 300 m at lower resolutions
• Hot-pluggable with link/status LED indicator
• Compact, durable ABS plastic housing with metal shielding

Specifications

• Video Input: DVI-D Male
• USB Input: USB Type-A Male
• Output: RJ45 Female
• Max Resolution: 1920 x 1200 @ 60Hz
• USB Standard: USB 2.0 (Low/Full Speed for HID)
• Max Distance: 50 m (1920x1200), 300 m (lower resolutions)
• Cable Types: CAT5e, CAT6, CAT7 UTP
• Power: Bus-powered via USB
• Operating Temperature: 0 to 40°C
• Material: ABS Plastic with metal shielding
• Colour: Black
• Certifications: CE, FCC, RoHS

Tips

For best performance, use shielded CAT6 or CAT7 cable in electrically noisy environments. Ensure the host computer's USB port provides sufficient power; if not, consider a powered USB hub. This dongle is designed to work seamlessly with ADDER's CATX series receivers, so pairing it with the correct receiver model is recommended for optimal compatibility.
