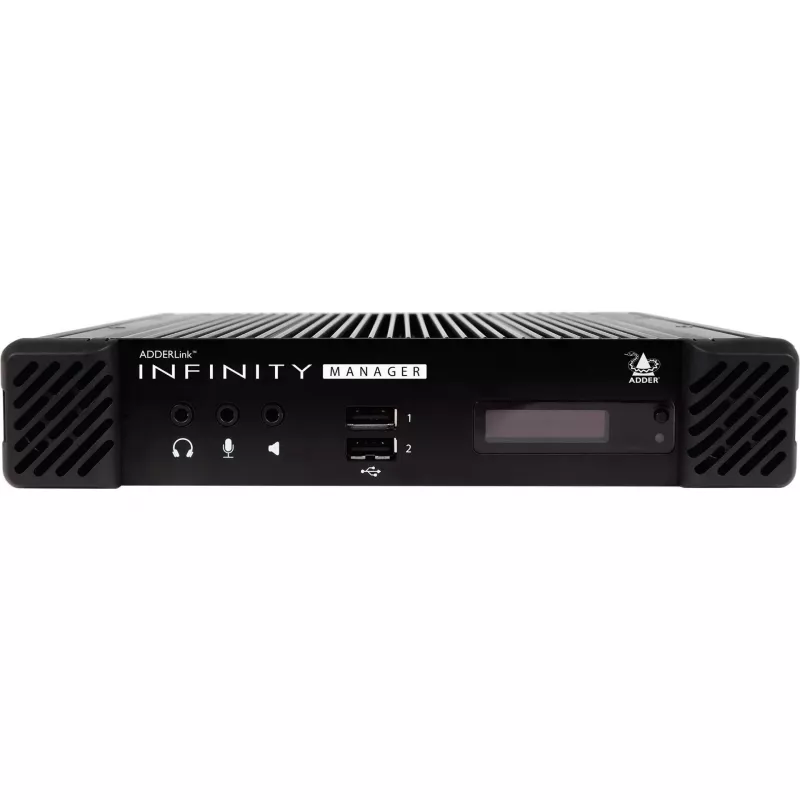

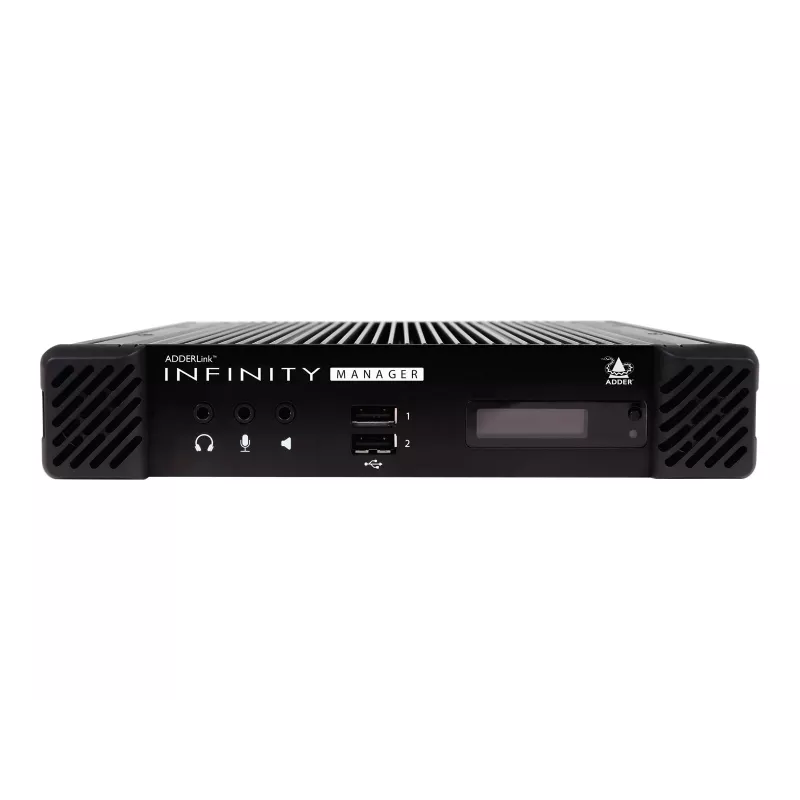

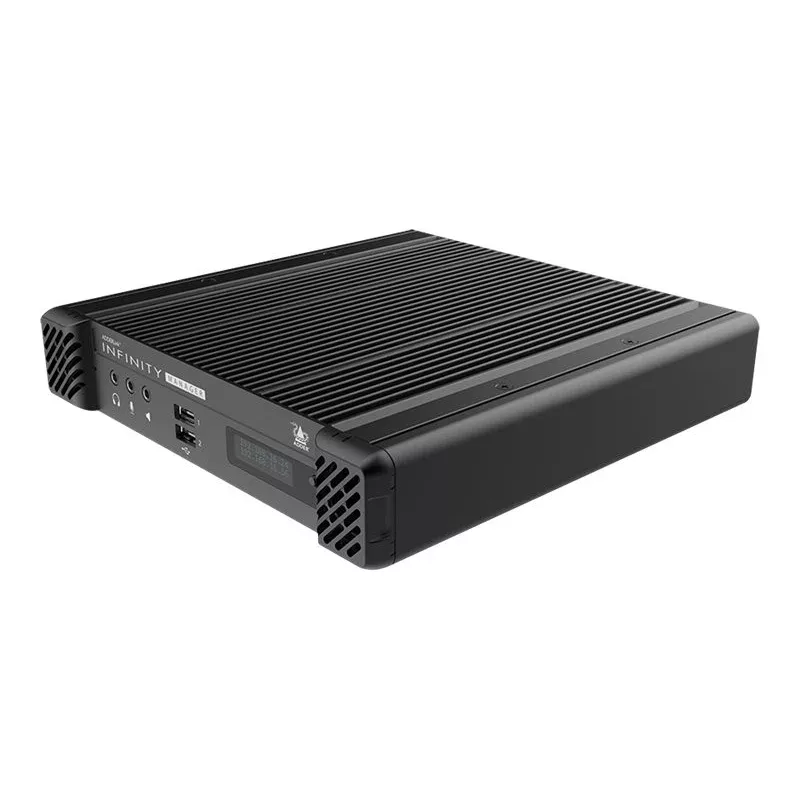

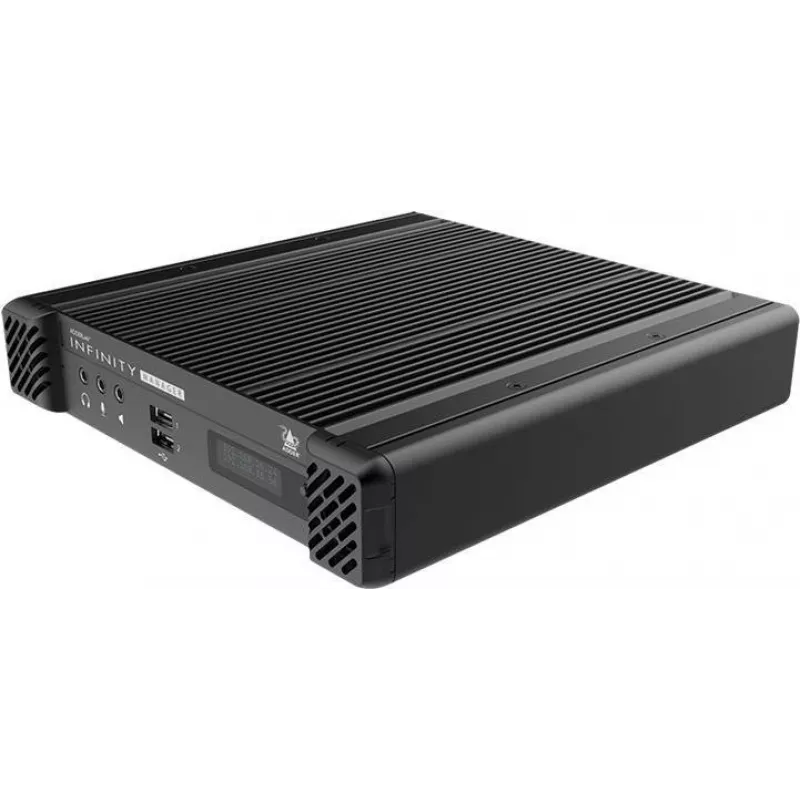

Adder ADDERLINK Manager (ASP-001)

Manage up to 1000 AdderLink KVM/AV devices from a single desktop appliance. The ADDERLINK Manager provides centralized control, configuration, and monitoring for large-scale KVM and AV deployments.

Overview

The Adder ADDERLINK Manager (ASP-001) is a dedicated management appliance designed for AdderLink KVM and AV devices. It offers a web-based GUI and command line interface for device discovery, configuration, firmware updates, user management, and security settings. The unit features a single RJ45 Ethernet port (10/100 Mbps) and one USB-A port for local console access or updates. Power is supplied via an external 5V DC adapter. The desktop form factor includes LED indicators for power, network activity, and status. Optional rackmount kit available.

What stands out

• Centralized management for up to 1000 AdderLink devices
• Dual management interfaces: Web GUI and CLI
• Role-based access control with SSL/TLS encryption
• Supports SNMP and NTP protocols
• Compact desktop design with optional rackmount

Technical details

• Product Type: KVM/AV Management Appliance
• Maximum Managed Devices: 1000
• Management Interface: Web-based GUI, CLI
• Network Interface: 1x RJ45 Ethernet (10/100 Mbps)
• USB Ports: 1x USB-A
• Power Input: 5V DC
• Form Factor: Desktop
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10% to 90% non-condensing
• Protocols: TCP/IP, HTTP/HTTPS, SNMP, NTP

Our verdict

The ADDERLINK Manager is an essential tool for administrators overseeing large AdderLink installations, offering robust security and comprehensive management features in a compact package.
