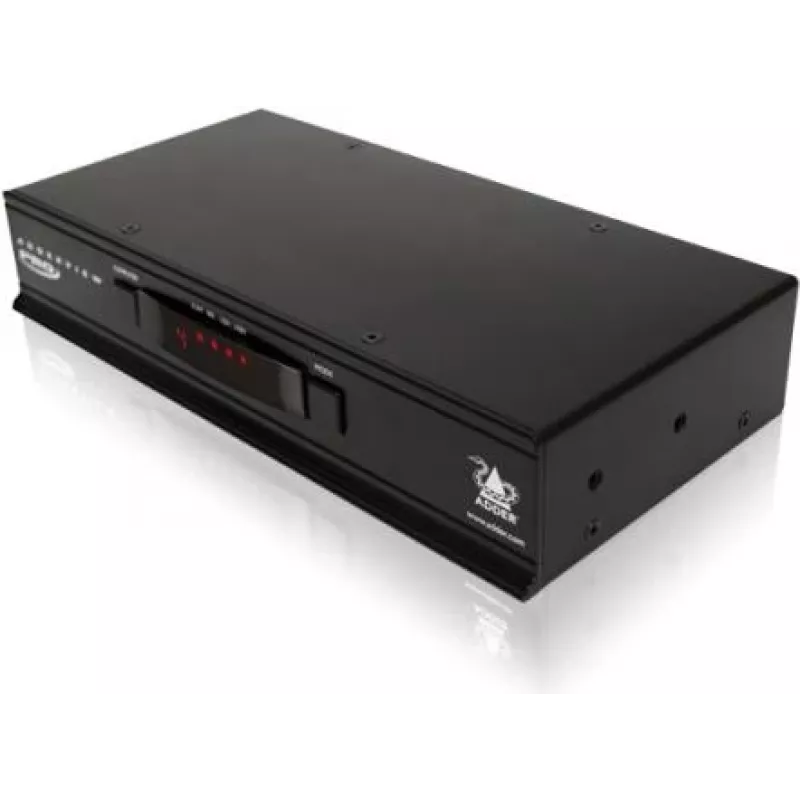

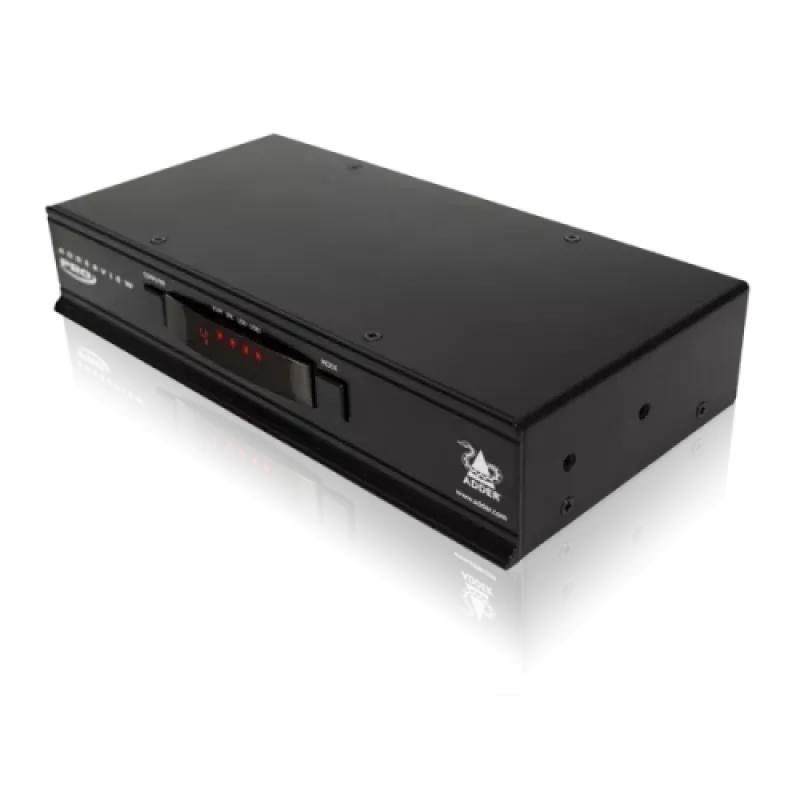

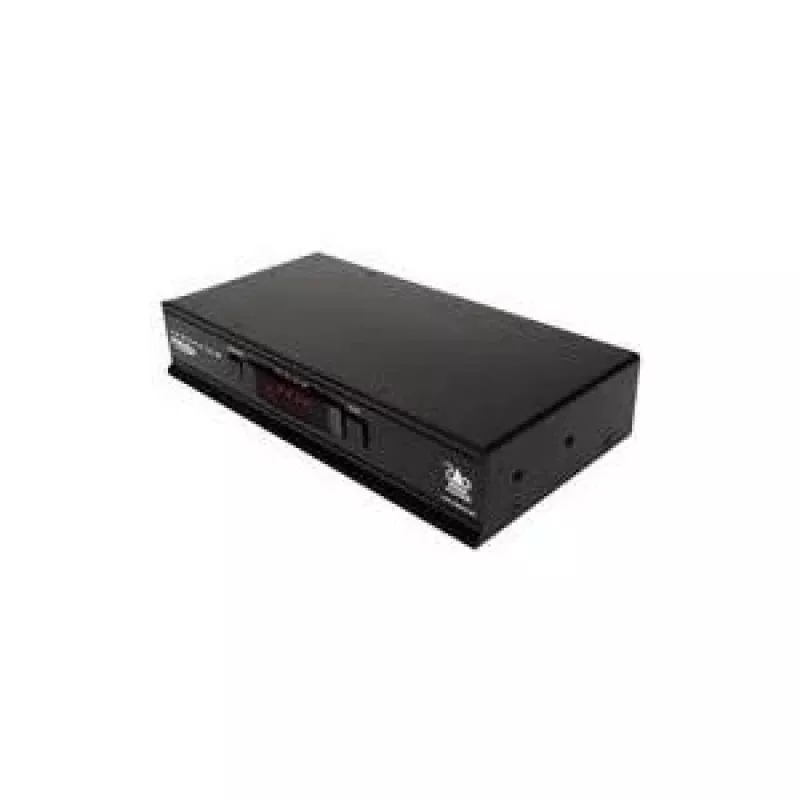

Switch KVM/audio/USB Adder ADDERView 4 PRO DVI - 4 porte, 1 utente locale, montaggio a rack AV4PRO-DVI-IEC

Managing multiple computers from a single workstation can be a challenge, especially when you need to switch between systems quickly and reliably. The Adder ADDERView 4 PRO DVI solves this problem by letting one user control up to four DVI-equipped computers using a single keyboard, mouse, and monitor, with audio support for a complete multimedia experience.

Who is it for

This KVM switch is ideal for IT administrators, control room operators, and power users who need to manage multiple computers without the clutter of multiple peripherals. Its rack-mountable design makes it perfect for server rooms and professional environments where space is at a premium.

Main features

• 4-port KVM switch with DVI-D Single Link video support
• Supports one local user console
• Audio support via 3.5mm jacks for speakers and microphone
• USB 2.0 connectivity for keyboard and mouse
• 1U rack-mountable form factor
• Switching via hotkeys, OSD, front panel buttons, or mouse
• OS independent – works with Windows, macOS, Linux, and more
• Full keyboard and mouse emulation for error-free booting
• DDC/EDID support for optimal video settings
• RS232 control port for integration
• Password protection via OSD

Specifications

• KVM Ports: 4
• Local User Consoles: 1
• Video Interface: DVI-D Single Link
• Maximum Resolution: 1920 x 1200 @ 60Hz
• USB Interface: USB 2.0
• Audio Support: Yes (3.5mm jacks)
• Form Factor: 1U Rack-mountable
• Switching Methods: Hotkeys, OSD, Front Panel Buttons, Mouse
• OS Compatibility: OS Independent
• Peripheral Emulation: Full Keyboard and Mouse
• DDC Support: Yes (EDID)
• Control Port: RS232
• Power Connector: IEC C14
• Hot-Pluggable: Yes
• Security: Password Protection (OSD)

Tips

For best performance, ensure all connected computers support DVI output and use high-quality DVI cables. The OSD menu allows easy configuration and naming of connected computers for quick identification.
