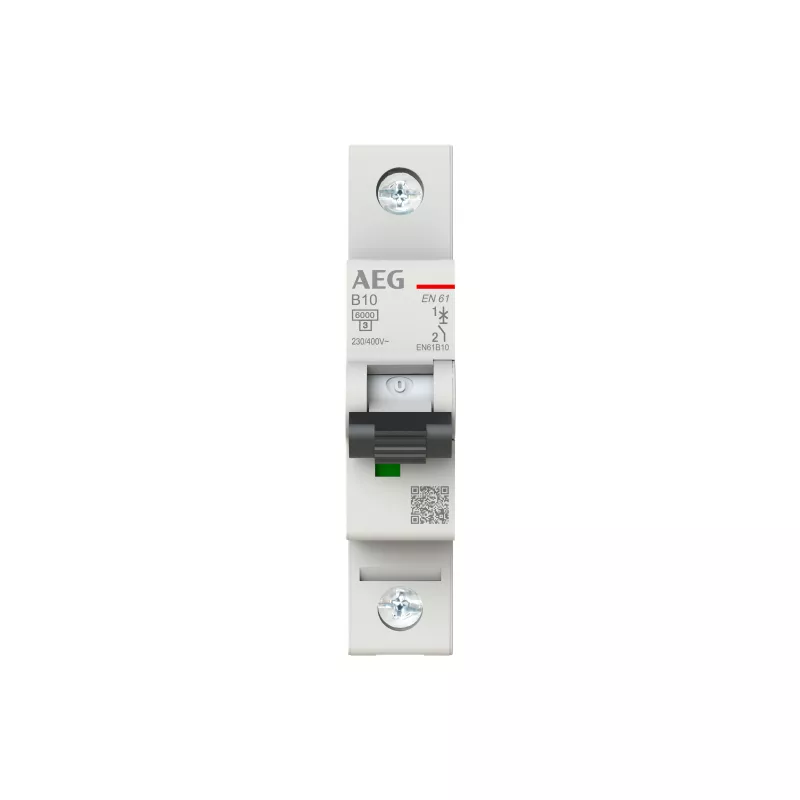

AEG Power Solutions interruttore automatico miniature Elfaplus 6kA B10A 1P (2CDS251088R0105)

The AEG Power Solutions Miniature Circuit Breaker (MCB) from the Elfaplus series is a reliable and compact protection device designed for residential and commercial electrical installations. With a rated current of 10 A and a tripping characteristic B, it provides short-circuit and overload protection for lighting and socket circuits. This 1-pole MCB has a breaking capacity of 6 kA and complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards.

Advantages

High breaking capacity of 6 kA ensures safety in case of short circuits. Energy limiting class 3 reduces stress on downstream equipment. Compact 1-pole design saves space on DIN rail. Screw terminals allow secure and easy wiring for conductors up to 35 mm² rigid or 25 mm² flexible.

Suitable for

• Lighting circuits
• Socket outlets
• Small appliance protection
• Residential and commercial distribution boards

Key specifications

• Product Type: Miniature Circuit Breaker (MCB)
• Series: System pro M compact® S200
• Number of Poles: 1
• Rated Current (In): 10 A
• Tripping Characteristic: B
• Rated Short-Circuit Breaking Capacity (Icn): 6 kA
• Rated Voltage (Ue): 230/400 V AC
• Rated Insulation Voltage (Ui): 440 V
• Frequency: 50/60 Hz
• Energy Limiting Class: 3
• Electrical Endurance: 10000 cycles
• Mechanical Endurance: 20000 cycles
• Mounting Type: DIN Rail (EN 60715)
• Terminal Type: Screw Terminals
• Conductor Cross-Section (Flexible): 0.75 - 25 mm²
• Conductor Cross-Section (Rigid): 0.75 - 35 mm²
• Tightening Torque: 2.8 N·m
• Degree of Protection: IP20 (Terminals), IP40 (Enclosure with cover)
• Ambient Operating Temperature: -25 to +55 °C
• Standards: IEC/EN 60898-1, IEC/EN 60947-2

Recommendations

For optimal protection, always use MCBs with appropriate rated current and breaking capacity for your installation. Ensure correct tightening torque and conductor cross-section as specified.
