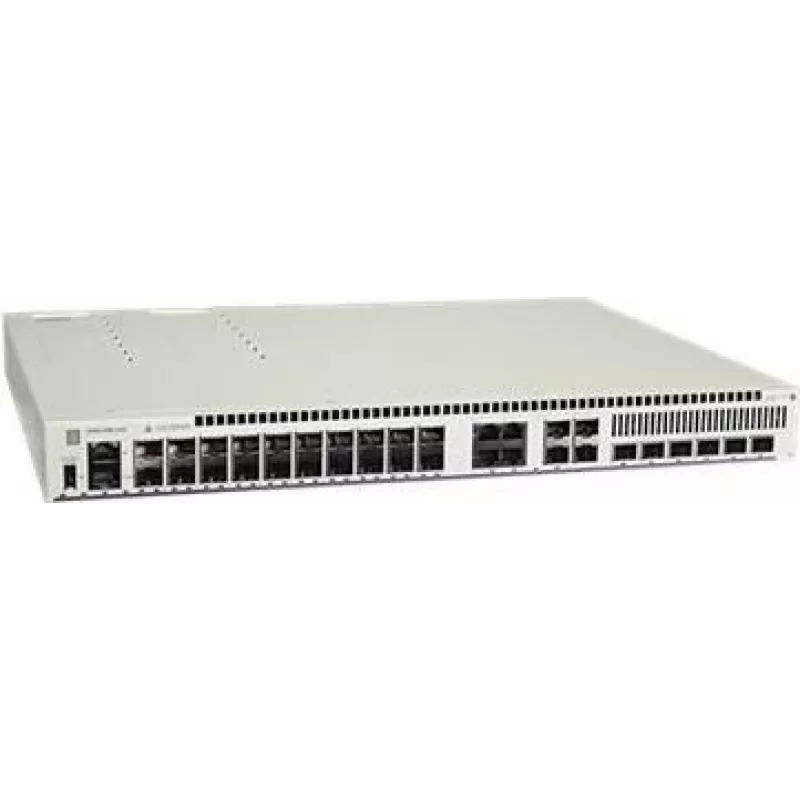

Alcatel-Lucent Enterprise OmniSwitch OS6570M-U28-EU switch L3 Managed Gigabit 24 porte PoE+ 740W

The Alcatel-Lucent Enterprise OmniSwitch OS6570M-U28-EU is a high-performance, Layer 2+/Lite Layer 3 managed Gigabit switch designed for enterprise networks requiring high-speed connectivity and Power over Ethernet (PoE+). With 24 multi-Gigabit RJ-45 ports supporting speeds from 100M to 10G and 4 SFP28 uplink/stacking ports, this switch delivers exceptional throughput and flexibility. It features a total PoE power budget of 740W, making it ideal for powering devices such as IP phones, wireless access points, and surveillance cameras. The switch supports stacking of up to 8 units via Virtual Chassis technology, simplifying management and scalability.

Advantages

This switch offers a robust set of features for demanding network environments. Its multi-Gigabit ports provide future-proof connectivity for high-bandwidth applications, while the generous PoE budget eliminates the need for separate power sources for connected devices. The stacking capability allows for easy expansion and unified management, reducing operational complexity. Advanced security features including 802.1X, ACLs, and DHCP Snooping ensure network integrity.

Suitable for

• Enterprise campus networks requiring high-density 10G connectivity
• Deployments with high-power PoE devices such as PTZ cameras and Wi-Fi 6 access points
• Organizations needing scalable, stackable switching solutions
• Network environments requiring advanced Layer 2 and basic Layer 3 routing

Key specifications

• 24 x 100M/1G/2.5G/5G/10G Multi-Gigabit RJ-45 PoE+ ports
• 4 x 10G/25G SFP28 uplink/stacking ports
• PoE+ (IEEE 802.3at) with 740W total power budget
• Switching capacity: 640 Gbps
• Forwarding rate: 238 Mpps
• Stacking up to 8 units (Virtual Chassis)
• Layer 2+ / Lite Layer 3 (Static, RIP, OSPF)
• Management: CLI, Web GUI (OmniVista), SNMP v1/v2c/v3
• Jumbo frame support up to 9216 bytes
• VLAN support: 4094 VLANs
• MAC address table: 32K entries
• IPv4 routes: 12K, IPv6 routes: 6K
• Internal AC power supply, fan-cooled
• 1U rack-mountable form factor

Recommendations

For optimal performance, pair this switch with Alcatel-Lucent Enterprise OmniVista network management software. Ensure adequate ventilation in the rack to maintain cooling efficiency. Consider using an external redundant power supply (RPS) for mission-critical applications.
