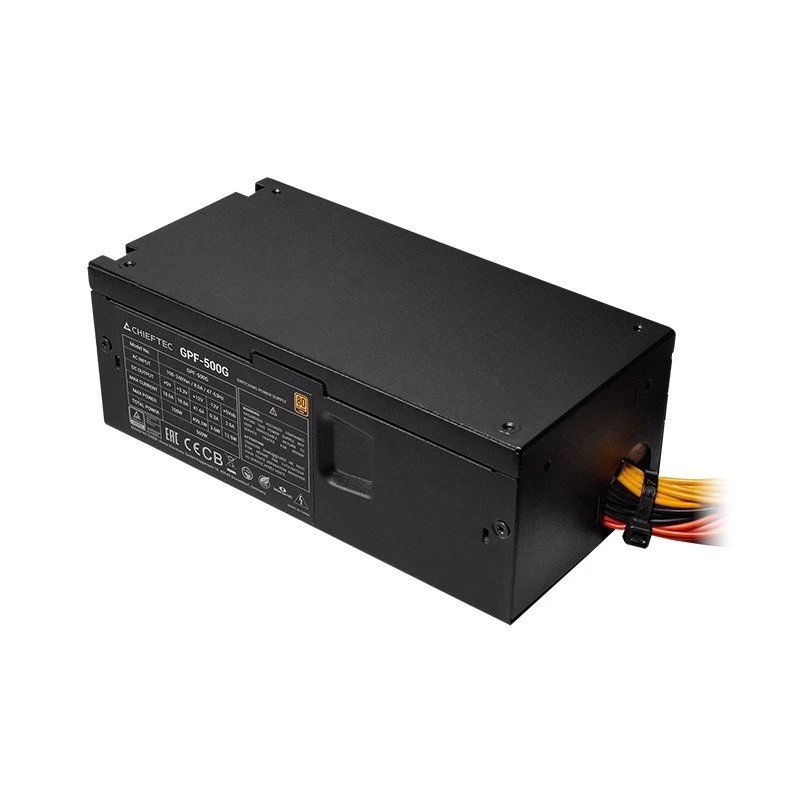

Alimentatore ATX Chieftec Smart GPF-500G 500W 80 PLUS Gold

Delivering 500W of continuous power with 80 PLUS Gold efficiency, the Chieftec Smart GPF-500G ensures over 90% energy conversion at typical loads, reducing heat and electricity costs. Its active PFC and robust protection suite make it a reliable foundation for mainstream PCs and workstations.

Overview

The Chieftec Smart GPF-500G is a non-modular ATX power supply built for stable, efficient operation. It supports ATX 2.3/2.4 standards and features a 120mm hydraulic bearing fan for quiet cooling. With a full set of connectors—including dual PCIe 6+2 pin for graphics cards—it handles a wide range of system configurations.

What stands out

• 80 PLUS Gold certification for high efficiency and lower running costs
• Active PFC with wide input voltage range (100-240V) for global compatibility
• Comprehensive protection: OVP, OPP, SCP, SIP, UVP, OTP
• 120mm hydraulic bearing fan for silent, durable cooling
• 100,000 hours MTBF for long-term reliability

Technical details

• Form Factor: ATX
• Modularity: Non-Modular
• Main Power Connector: 1x 20+4 pin ATX
• CPU Power Connector: 1x 4+4 pin EPS
• PCIe Power Connectors: 2x 6+2 pin
• SATA Power Connectors: 6x
• Peripheral (Molex) Connectors: 3x 4-pin
• Floppy Drive Connector: 1x 4-pin
• Input Voltage: 100 - 240 V AC
• Input Frequency: 50 - 60 Hz
• Fan Size: 120 mm
• Fan Bearing: Hydraulic Bearing
• Colour: Black

Our verdict

The Chieftec Smart GPF-500G balances efficiency, protection, and quiet operation, making it a solid choice for builders who need dependable 500W power without modular complexity.
