Alimentatore LED Mean Well 240W 24V IP67, modello 51405006

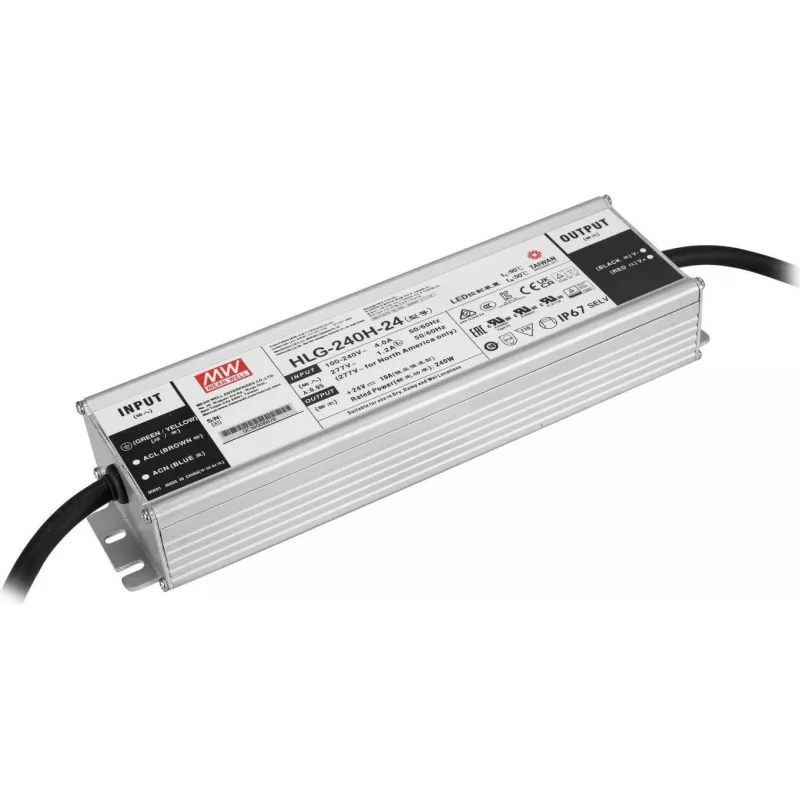

Mean Well LED power supply 240W 24V IP67 model delivers a stable 24V DC constant-voltage output in a weatherproof enclosure. Designed to power high-load LED strips, modules and fixtures, this driver supports continuous operation up to 240 watts and is suitable for both indoor and outdoor installations where dust and water protection is required. The IP67 rating ensures reliable performance in damp or exposed environments, while the robust housing and mounting options allow straightforward integration into lighting systems.

Advantages

The IP67-rated enclosure provides protection against dust ingress and temporary immersion in water, making the unit suitable for exposed and damp locations. The constant-voltage 24V output maintains stable brightness for LED strips and fixtures under varying loads. High power capacity of 240W supports large runs or multiple LED fixtures from a single driver, reducing the need for multiple power supplies. The design includes practical mounting provisions for secure installation and effective thermal management for reliable long-term operation.

Suitable for

Key specifications

How to use

Install the power supply on a stable surface using the provided mounting points, ensuring adequate clearance for heat dissipation and cable access. Connect the AC input to a suitable mains supply following local wiring regulations and safety standards. Connect the 24V DC output to the LED load, observing correct polarity and total load not to exceed 240W. Seal cable entries as required for IP67 integrity after wiring. Verify output voltage and load current before commissioning and perform initial functional tests with the intended LED fixtures.

Recommendations

For reliable long-term operation, keep the device within specified ambient temperature limits and avoid covering the enclosure to ensure effective convection cooling. Use appropriately rated external fuses or circuit protection on the AC input and verify that the combined LED load does not exceed the rated power. For outdoor or exposed installations, use suitable cable glands and sealing methods to maintain IP67 protection.
