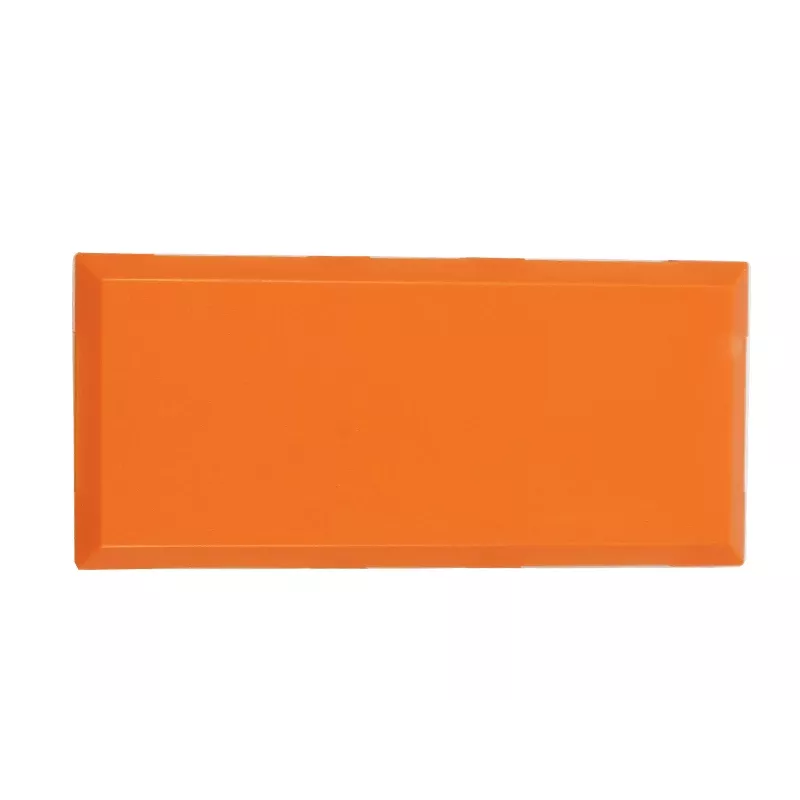

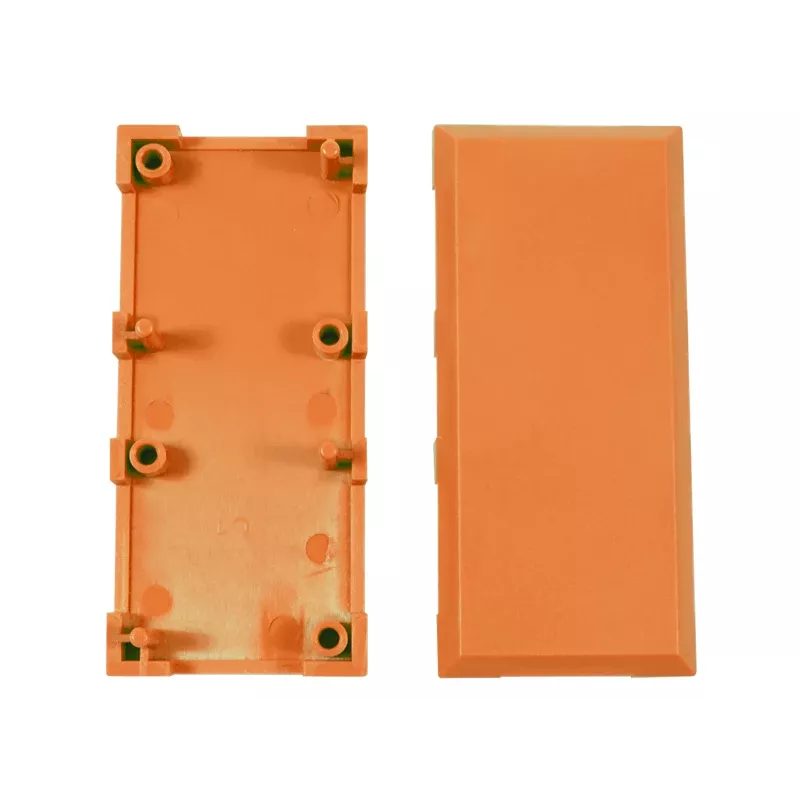

ALLNET ALL-BRICK-0360 Custodia elettrica arancione 110x110x60mm IP65 ABS

The ALLNET ALL-BRICK-0360 is a robust electrical enclosure designed for both outdoor and indoor applications. With its IP65 protection rating and IK07 impact resistance, it provides reliable protection for sensitive electronic components. The orange ABS plastic housing is UV-resistant and features a silicone gasket seal, ensuring long-lasting performance in harsh environments.

Advantages

This enclosure offers excellent durability and weather resistance, making it ideal for industrial and commercial use. The wall-mountable design and smooth walls allow for custom cable entry via drilling or glands. The lid is secured with four stainless steel screws, providing a secure seal.

Suitable for

• Junction boxes for electrical connections
• Distribution boxes for outdoor installations
• Control enclosures for automation systems
• Protection of electronic modules in harsh environments

Key specifications

• Protection Rating: IP65
• Material: ABS Plastic
• Color: Orange
• External Dimensions (L x W x H): 110 x 110 x 60 mm
• Internal Dimensions (L x W x H): Approx. 100 x 100 x 55 mm
• Mounting Type: Wall Mountable
• Lid Fastening: 4 Stainless Steel Screws
• Seal Material: Silicone Gasket
• Operating Temperature Range: -25°C to +70°C
• Impact Resistance: IK07
• Flammability Rating: UL94-V0
• Cable Entry: Smooth walls for custom drilling/glands
• UV Resistance: Yes
• Application Environment: Outdoor & Indoor

Recommendations

For optimal installation, use appropriate cable glands and ensure the silicone gasket is properly seated. This enclosure is suitable for a wide range of electrical and electronic applications where protection from dust and water is required.
