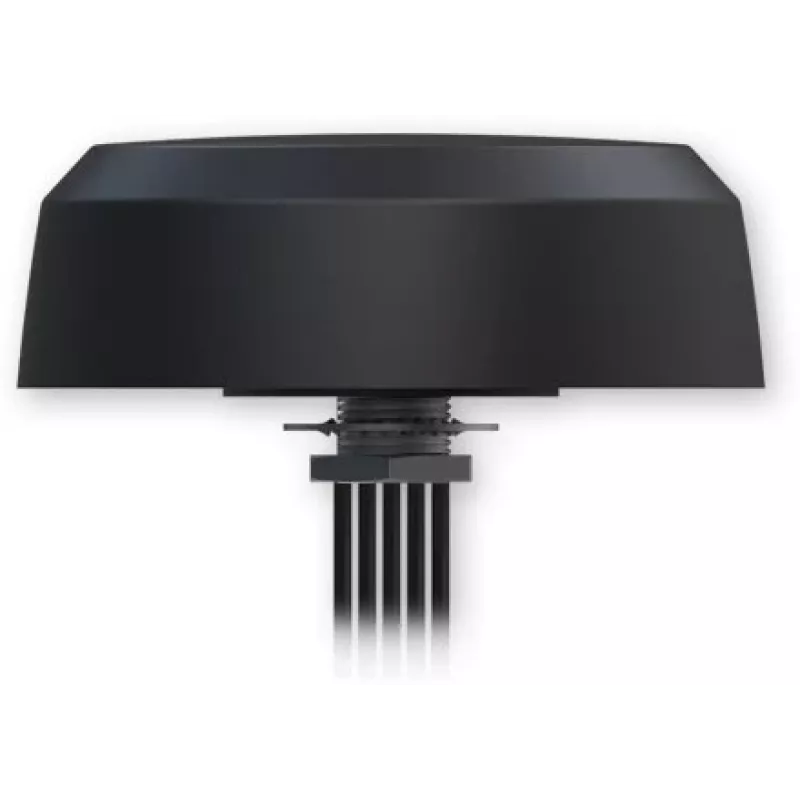

Antenna 5G Combo MIMO Mobile GNSS per montaggio su tetto TELTONIKA PR1KCI49 per veicoli – cellulare multibanda con GNSS integrato

TELTONIKA PR1KCI49 is a roof-mount 5G combo MIMO mobile antenna with integrated GNSS reception, designed for vehicles and other mobile installations. It supports multiple cellular frequency ranges including sub-GHz and mid-to-high bands to provide wide cellular coverage together with GNSS positioning. The antenna is intended for stable mobile connectivity, improved cellular data throughput via MIMO, and reliable satellite positioning for telematics and fleet applications.

Advantages

The antenna combines multi-band cellular coverage with GNSS in a single roof-mount unit, reducing the need for separate antennas and cables. MIMO capability improves data throughput and link reliability for mobile broadband connections. Its vehicle-ready form factor and roof-mount design allow straightforward installation and a stable mounting point for consistent signal reception.

Suitable for

• Vehicle telematics and fleet management
• Mobile internet and cellular data offload
• On-vehicle routers and gateways
• Any mobile installation requiring combined cellular and GNSS reception

Key specifications

• Gain: 4.9 dB (typical)
• Frequency ranges: 600–960 MHz and 1400–6000 MHz
• Functionality: Multi-band cellular (including 5G bands) with MIMO and integrated GNSS reception
• Mount type: Roof-mount for vehicles and mobile installations

How to use

Mount the antenna on the vehicle roof using the appropriate roof-mount hardware and route the antenna cables to the modem or router. Connect the cellular MIMO feed(s) to the corresponding cellular ports and the GNSS feed to the GNSS/GPS input of the device. Ensure cable connections are secure and weather seals are intact to maintain performance.

Recommendations

For best results, place the antenna on a clear, elevated section of the roof away from large metallic obstructions. Use short, low-loss coaxial cables where possible and verify compatibility of connector types with the cellular modem and GNSS receiver before installation.
