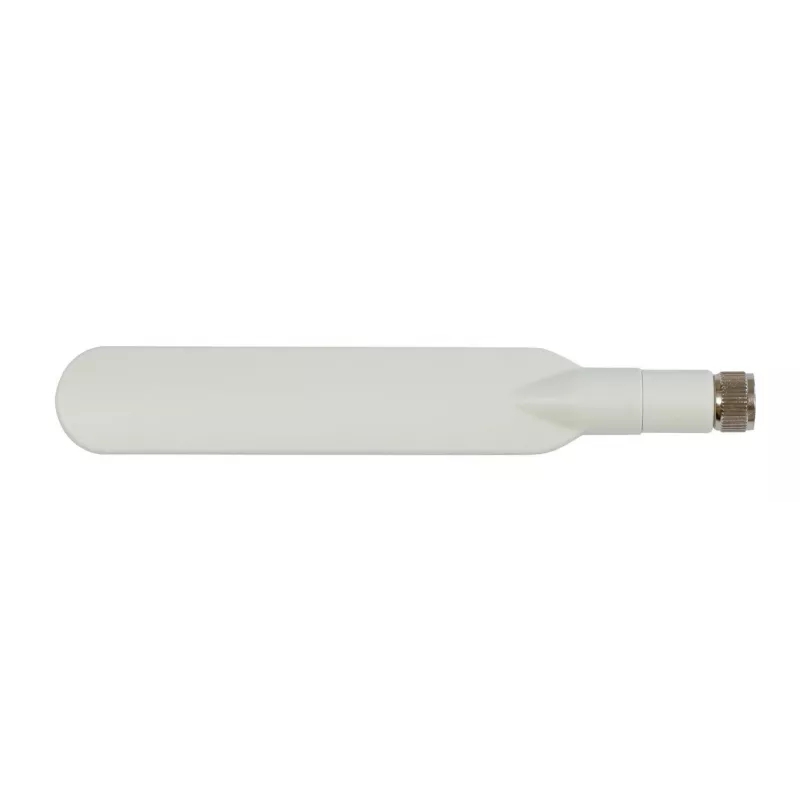

Antenna direzionale MikroTik 2.4Ghz dipolo

The MikroTik 2.4Ghz Dipole Directional antenna provides 5 dBi gain and operates across the 2.4–2.5 GHz band, supporting IEEE 802.11b/g/n. Equipped with an RP-SMA male connector, the antenna is compact (147 mm depth) and lightweight (30 g), suitable for outdoor deployments when paired with compatible devices such as the BaseBox2 to create a 2x2 MIMO 2.4 GHz access point.

Advantages

The antenna delivers a focused 5 dBi gain for improved signal reach on the 2.4 GHz band while remaining small and lightweight for easy installation. The RP-SMA male connector ensures straightforward attachment to devices with RP-SMA female ports. Its waterproof design allows outdoor use when properly mounted, enabling configurations like an outdoor 2x2 MIMO AP with two antennas on a BaseBox2.

Suitable for

• Outdoor campus coverage (camping sites, trailer parks)
• Extending 2.4 GHz Wi‑Fi range for access points and routers
• Creating a 2x2 MIMO 2.4 GHz AP when paired with BaseBox2

Key specifications

• Frequency: 2.4–2.5 GHz
• Gain: 5 dBi
• Standards: IEEE 802.11b/g/n
• Connector: RP-SMA male
• Depth: 147 mm
• Weight: 30 g
• Brand: MikroTik
• MPN: 10123
• EAN: 5704174151005

How to use

Attach the RP-SMA male connector to a compatible RP-SMA female port on your wireless device. For a 2x2 MIMO access point using BaseBox2, mount two dipole antennas on the BaseBox2 connector positions. Ensure antennas are securely tightened and oriented as required for coverage. The compact size allows mounting without additional structural support in many outdoor installations.

Recommendations

Use the antenna outdoors only when the connector is properly fastened and any exposed interfaces are protected; when paired with BaseBox2, confirm both antennas are correctly attached before operating the unit without its top cover.
