MIKROTIK antenna LTE - mANT LTE 5o 5dBi con due connettori SMA

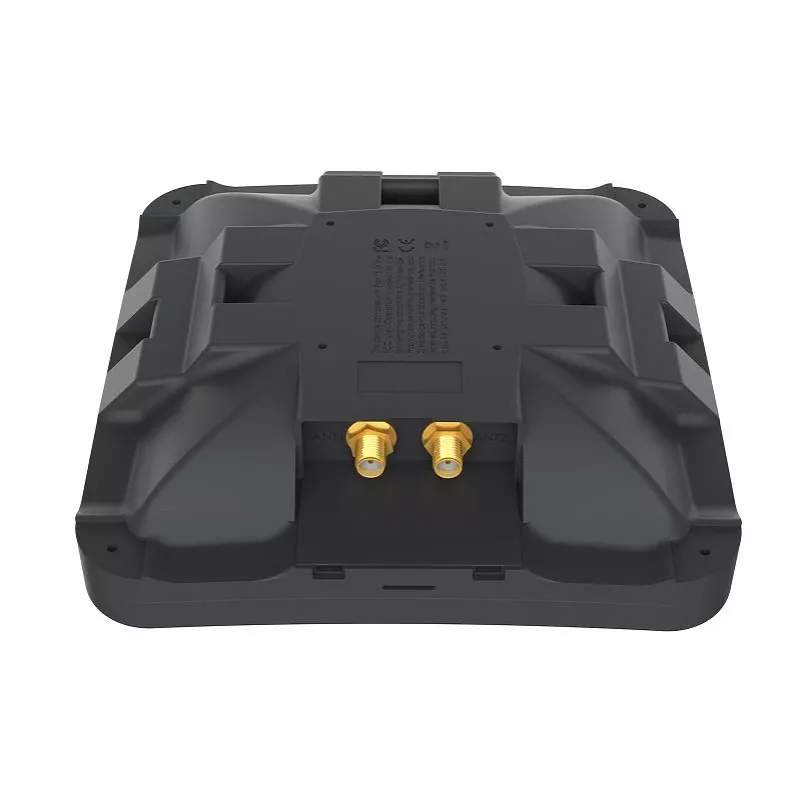

The MikroTik mANT LTE 5o is an omni-directional LTE antenna with 5 dBi gain, covering frequency bands from 0.699 to 2.690 GHz. It is compact (129 × 129 × 34 mm) and uses a female SMA connector. The antenna is designed to improve signal reception and transmission for LTE devices such as the wAP LTE and LtAP series, helping to increase connection reliability and speed in areas with weak LTE coverage.

Advantages

The mANT LTE provides a uniform 360° radiation pattern suitable for multi-directional signal sources and has a 5 dBi gain to boost weak signals. Its compact square form factor and female SMA connector make it easy to mount and connect to compatible MikroTik LTE routers and gateways. The wide frequency support (0.699–2.690 GHz) ensures compatibility with common LTE bands.

Suitable for

• Improving LTE reception for MikroTik wAP LTE and LtAP devices
• Use in locations with inconsistent or weak LTE coverage
• Small installations where a compact omni-directional antenna is needed

Key specifications

• Antenna gain: 5 dBi
• Frequency range: 0.699 – 2.690 GHz
• Connector: female SMA
• Dimensions: 129 mm × 129 mm × 34 mm
• Model/MPN: MTAO-LTE-5D-SQ

How to use

Mount the antenna in a location with minimal obstructions, ideally elevated and centered relative to expected signal sources. Connect the female SMA connector to the corresponding SMA port on your MikroTik LTE device (wAP LTE, LtAP, or similar). Adjust device placement and antenna orientation if connected throughput or signal strength is suboptimal; because the antenna is omni-directional, rotation is generally not required.

Recommendations

For best results, place the mANT LTE 5o away from large metal objects and other antennas to reduce interference. Check local LTE band compatibility before installation and ensure the SMA connection is secure and weather-protected if installed outdoors.
