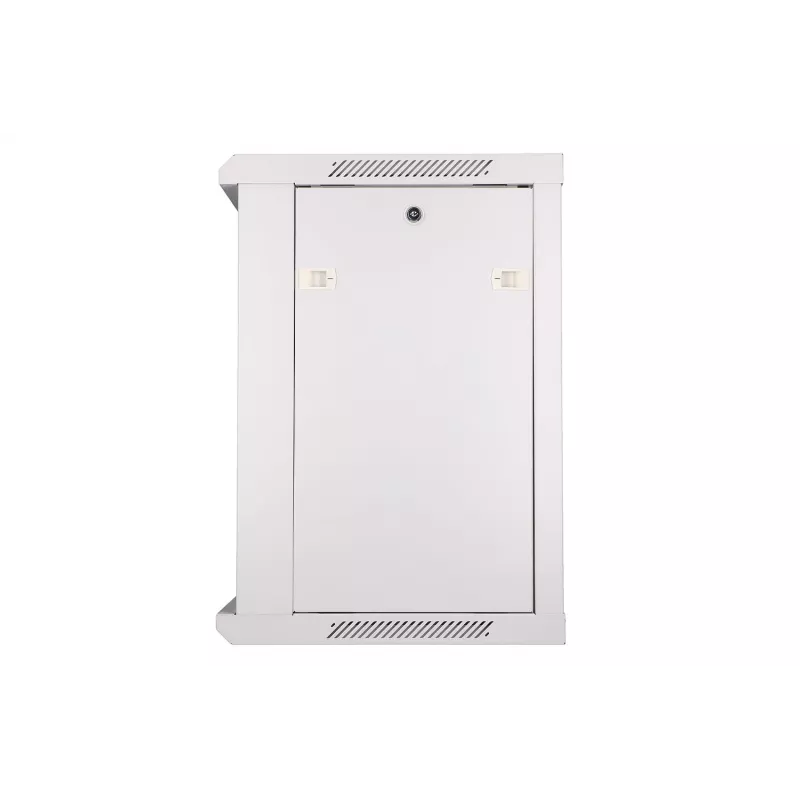

Armadio a parete Extralink armadio rack 12U 600x600 grigio

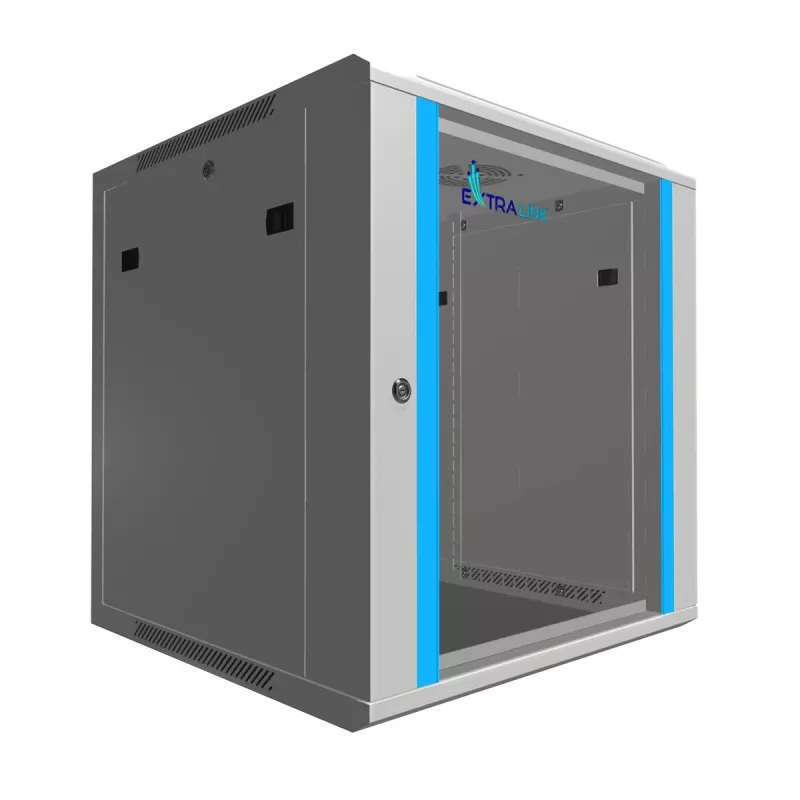

The Extralink rack cabinet is a wall-mounted 12U cabinet designed for offices, server rooms and CCTV control rooms. Constructed from cold-rolled steel with a tempered glass front door that can open to the left or right, the cabinet measures 640 mm in height with a 600 x 600 mm footprint and supports standard 19" equipment.

Advantages

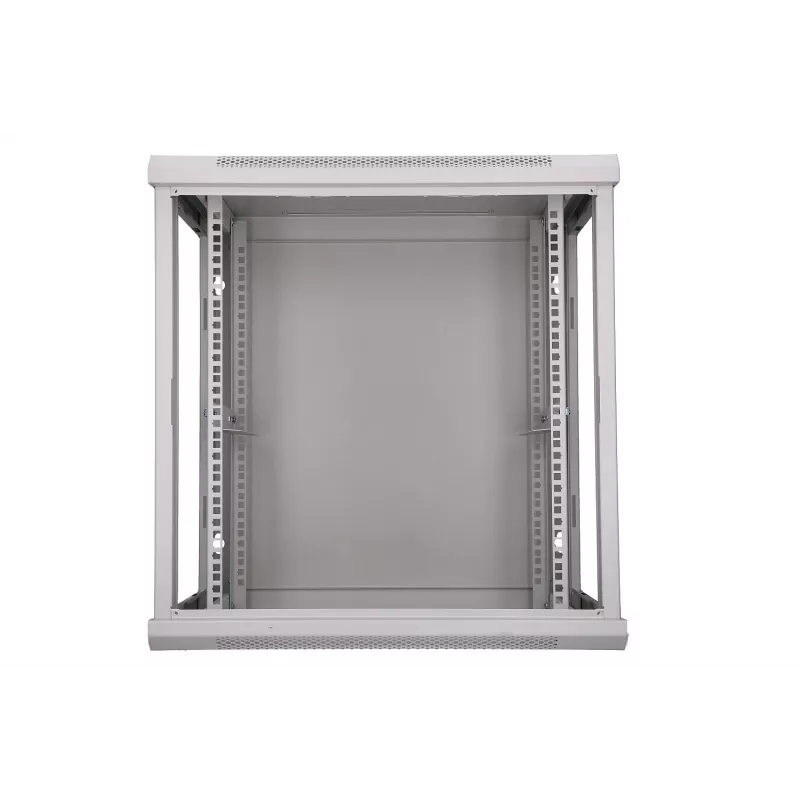

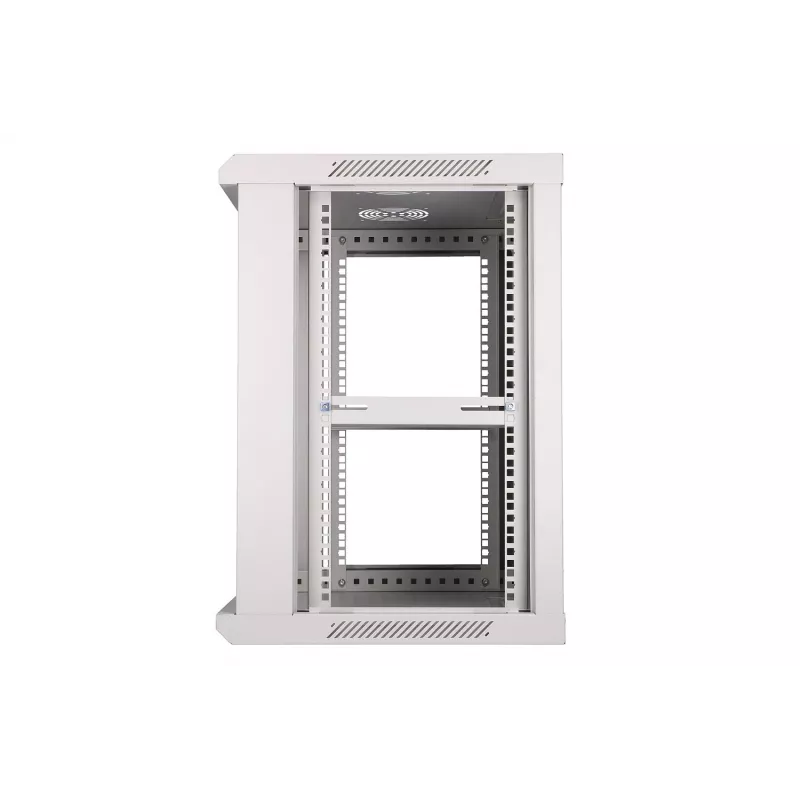

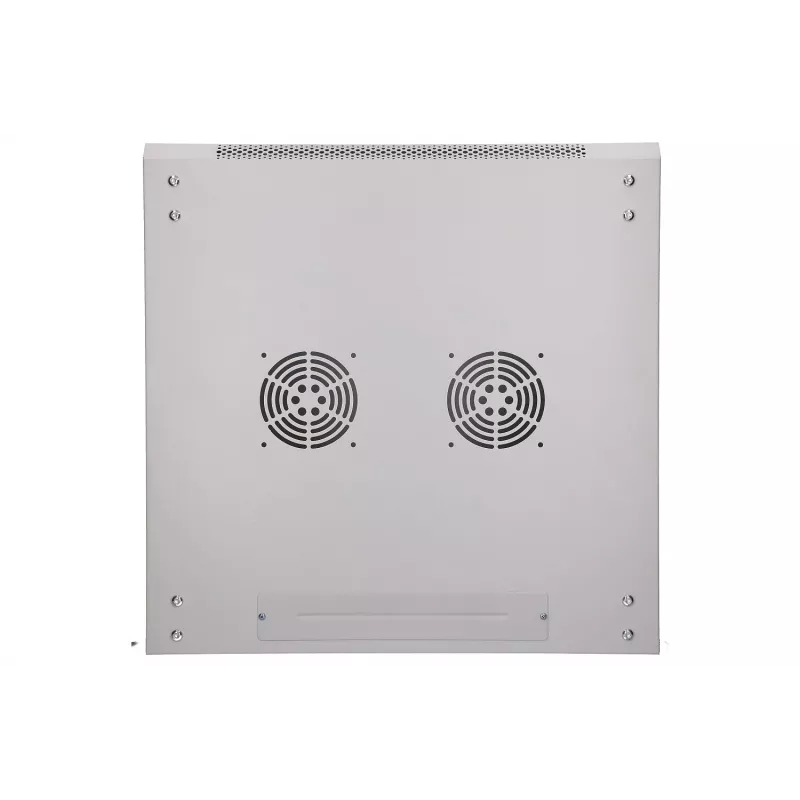

The cabinet provides secure storage with an included lock and keys, detachable side walls using snap fasteners for convenient access and installation, and vertical rails marked for 12U mounting. Two fan mounting positions on the top panel and an additional conduit for cable routing help maintain equipment cooling and tidy cable management. The neutral gray finish suits professional environments.

Suitable for

• Wall mounting network switches, patch panels and routers
• Housing CCTV recorders and access control equipment
• Small server or IT closets with limited floor space

Key specifications

• Rack capacity: 12U
• Height: 640 mm
• Width: 600 mm
• Depth: 600 mm
• Maximum load: 60 kg
• Front door: tempered glass, reversible opening
• Material: cold-rolled steel
• Colour: grey
• MPN: EX.8604, EAN: 5902560368604

How to use

Mount the cabinet on a suitable wall using appropriate anchors and fixings for the wall material and expected load. Remove side panels via the snap fasteners to access the interior and adjust or install the vertical 19" rails to fit equipment. Secure devices to the marked rails, route cables through the top conduit and, if required, install fans in the two top mounting positions to improve airflow. Close and lock the front door after installation.

Recommendations

Install the cabinet on a load-bearing wall and verify that anchors and fasteners meet the total equipment weight (recommended maximum load 60 kg). Keep ventilation openings clear; install fans if ambient temperature or equipment heat dissipation requires enhanced cooling.
