Armadio a pavimento Extralink 42U 800X800 RACKMOUNT CABINET A PAVIMENTO NERO capacità 1400 kg

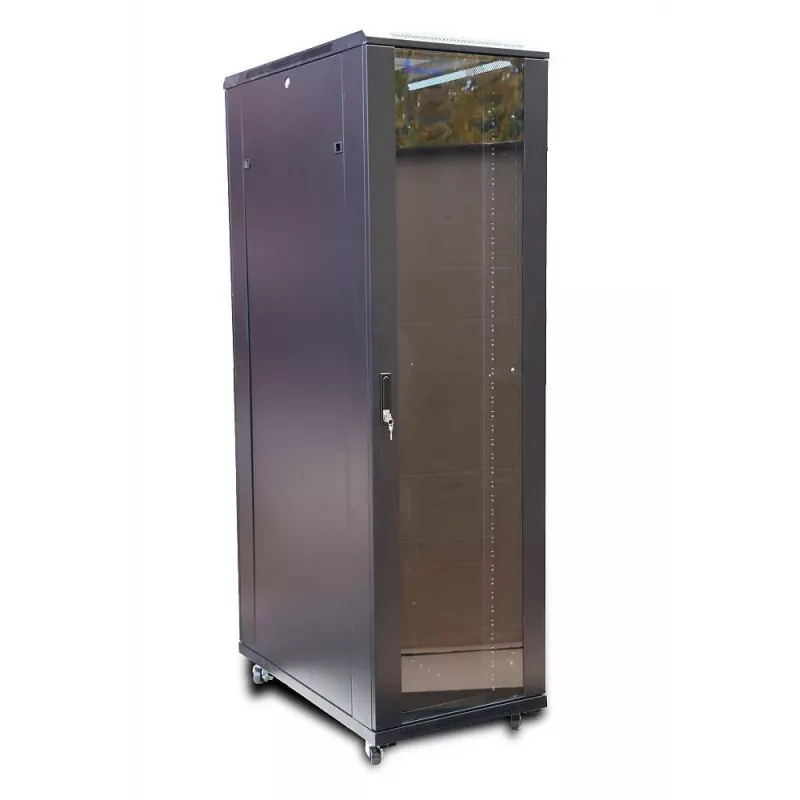

The Extralink 42U 800x800 freestanding rack is a black standing rackmount cabinet designed for offices, network server rooms and CCTV control rooms. Constructed from cold-rolled steel with a tempered glass front door that can open to the left or right, the cabinet provides 42U of rack space within a total height of 2000 mm and supports up to 1400 kg of equipment. The cabinet includes keyed locks, removable side panels, castor wheels for mobility and multiple cable entry points for tidy cable routing.

Advantages

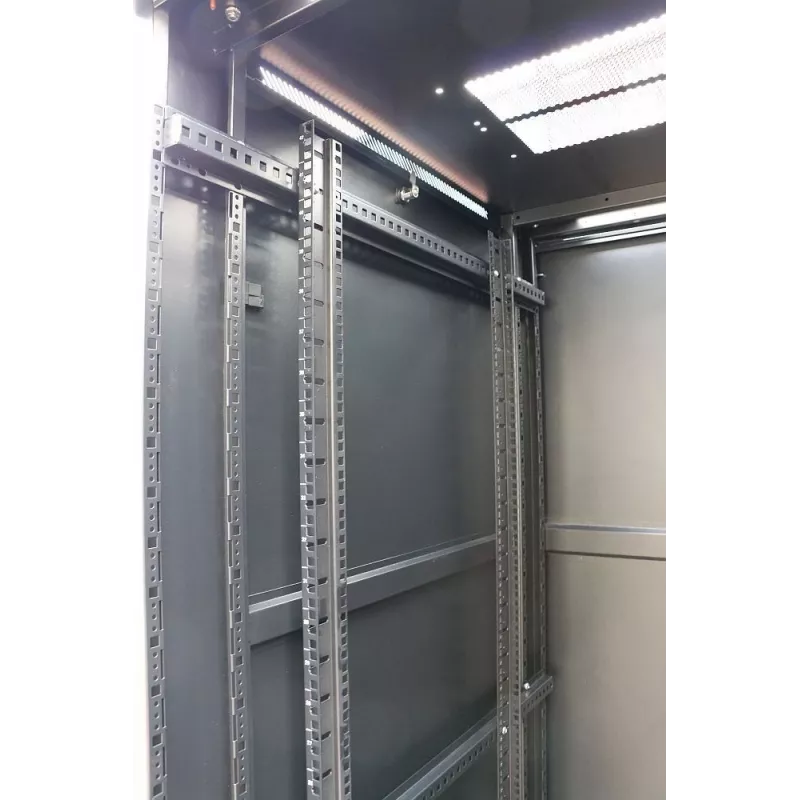

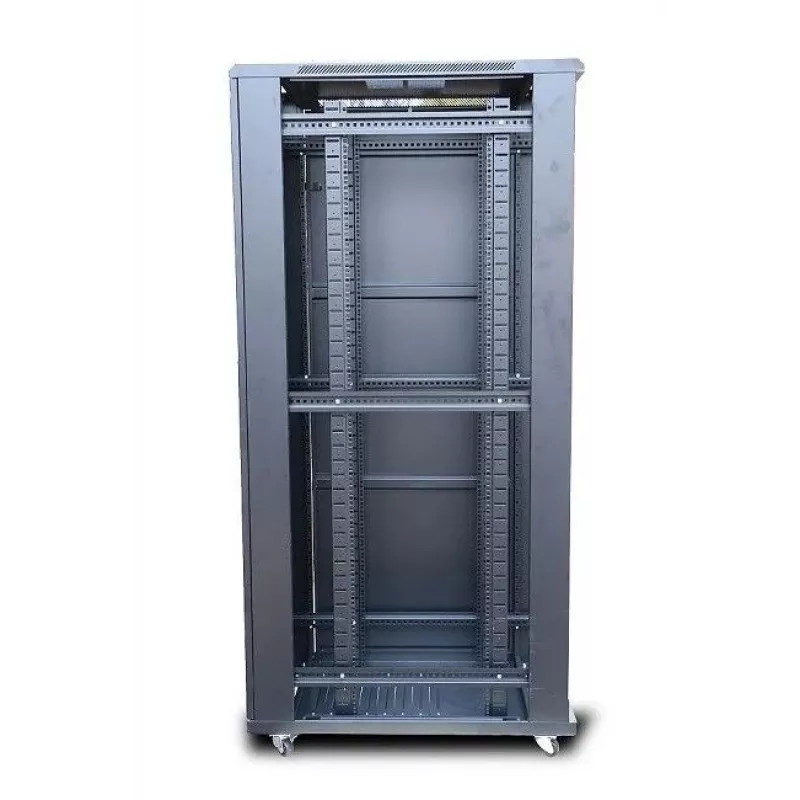

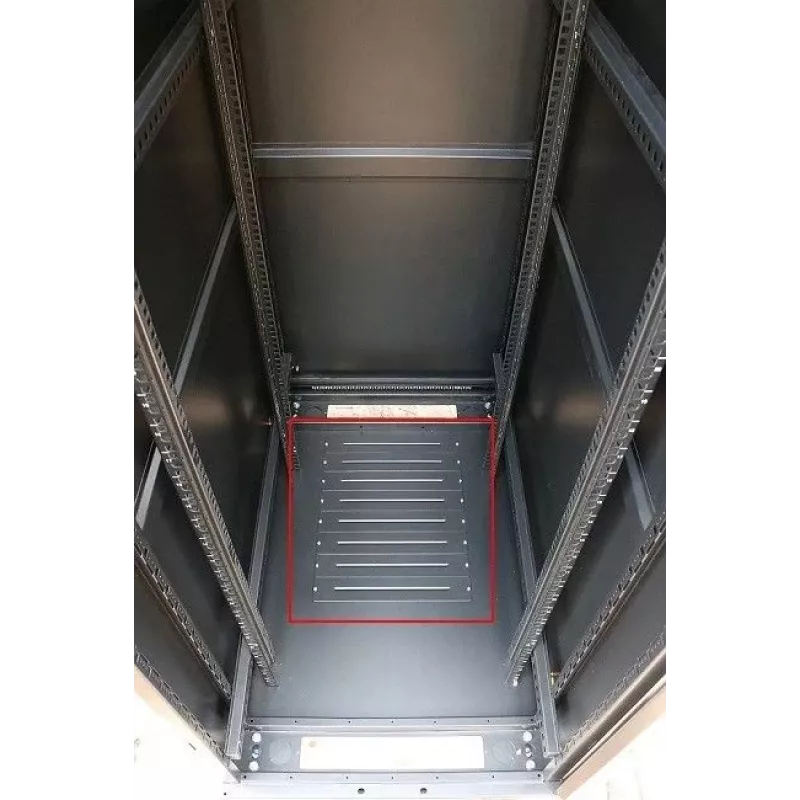

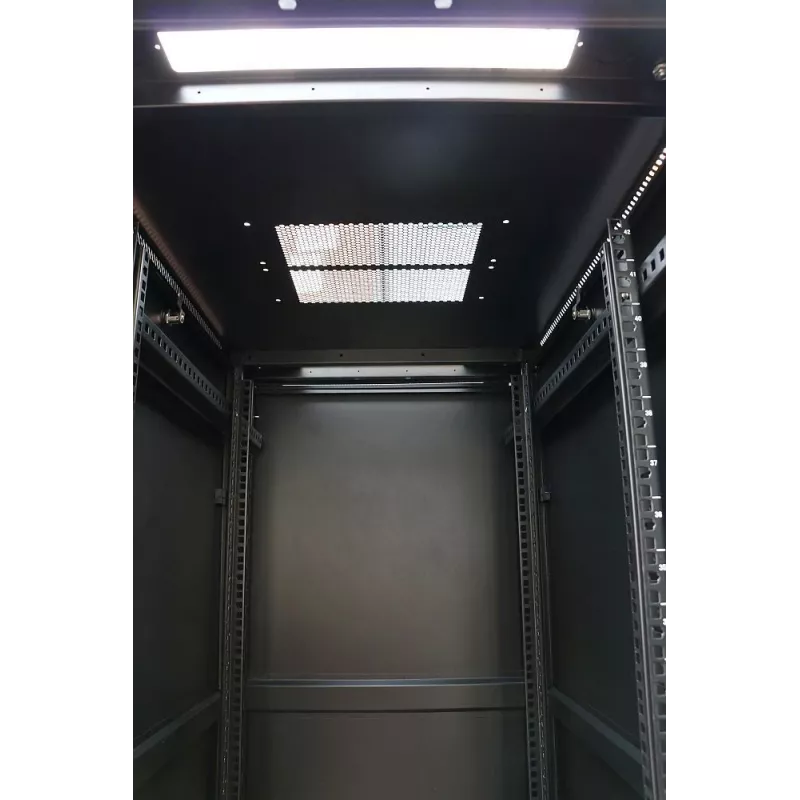

The cabinet offers clear unit markings on vertical rails to simplify mounting of 19" equipment and provides robust construction with a cold-rolled steel body and tempered glass front. Side panels are removable with snap fasteners for easy internal access, and the lower panel and ceiling include multiple cable conduits and a ventilation outlet to support orderly cable management and cooling. Castor wheels make the cabinet easier to position before final installation.

Suitable for

Key specifications

How to use

Assemble the cabinet according to the included instructions, position it using the castor wheels and secure it once in place. Mount 19" rack equipment on the marked vertical rails, distributing weight evenly and observing the 1400 kg maximum load. Route network and power cables through the designated lower and ceiling conduits to avoid pinching or tangling, and use the ventilation outlet to attach external fans or HVAC connections if required.

Recommendations

For safe operation, ensure equipment weight is balanced from front to back and top to bottom, keep cable bundles organized through the provided conduits, lock the doors and side panels after servicing, and allow adequate airflow around the ventilation outlet. Follow local regulations for grounding and rack installation.
