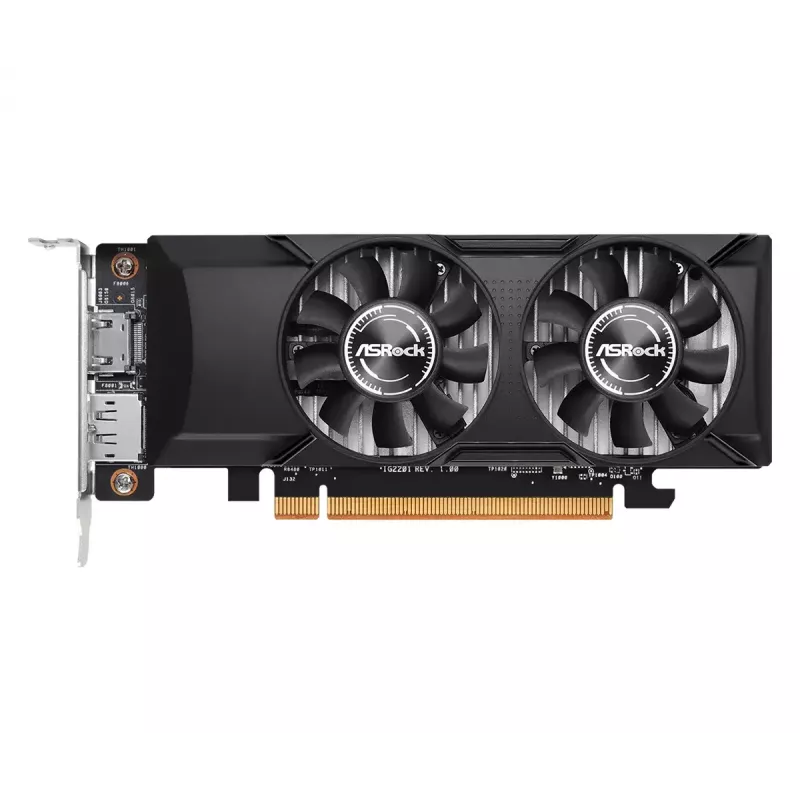

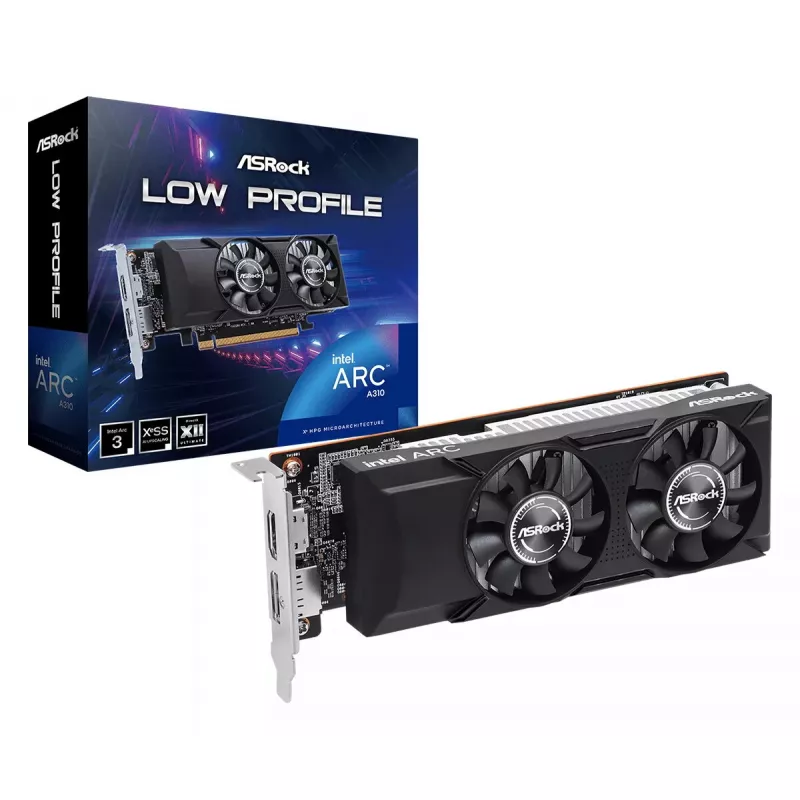

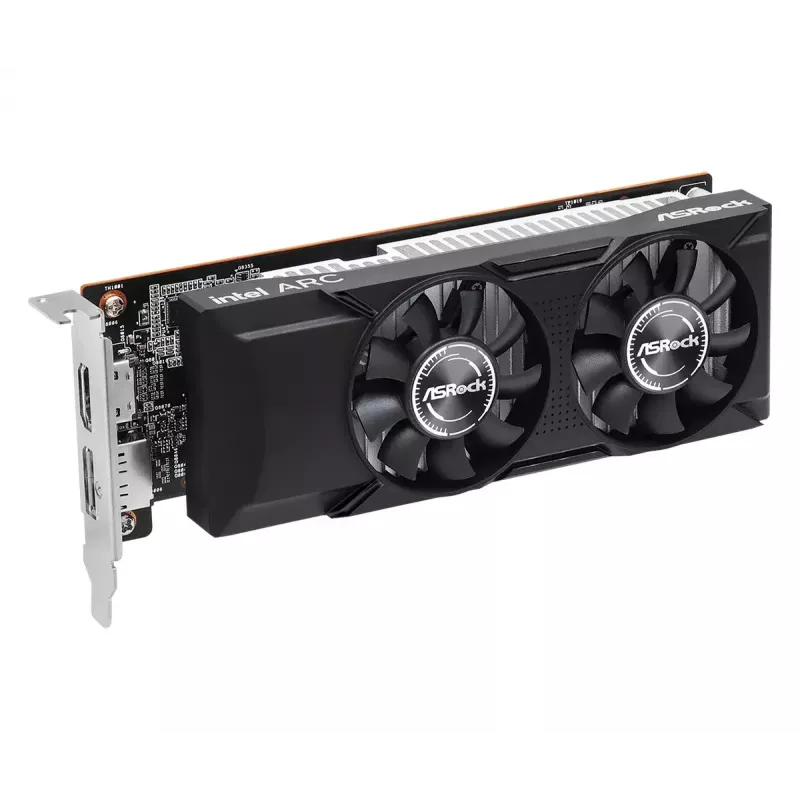

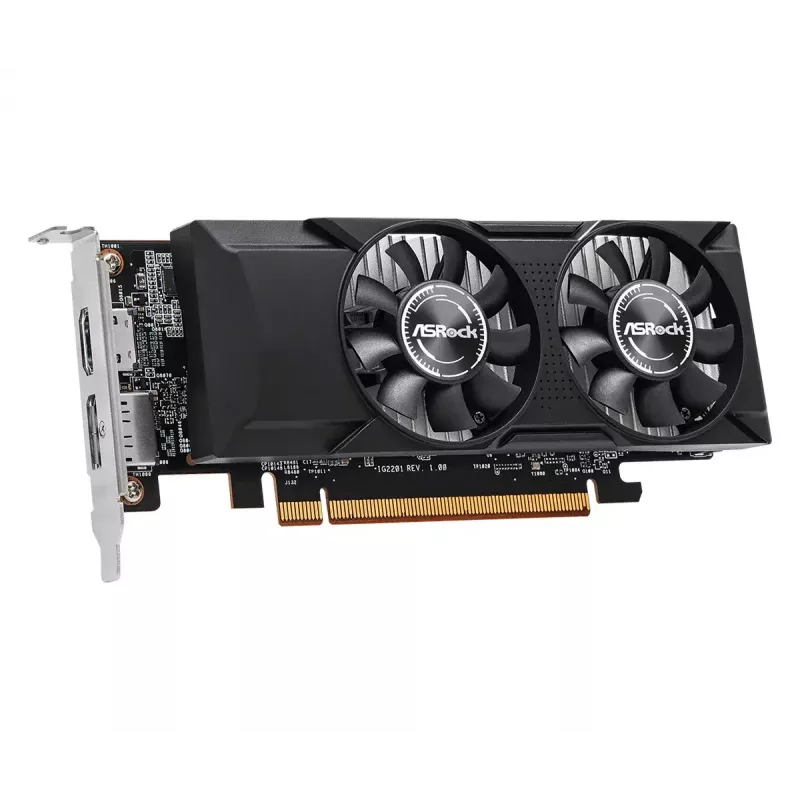

Scheda grafica Intel Arc A310 4GB GDDR6

The ASRock Intel Arc A310 4GB GDDR6 low profile graphics card delivers compact, PCI Express x8 4.0 performance for small form factor systems. Equipped with an Intel Arc A310 GPU running up to 2000 MHz, 4 GB of GDDR6 memory on a 64‑bit bus and active dual‑fan cooling, the card supports up to 7680 x 4320 (8K) resolution and modern graphics APIs including DirectX 12 Ultimate and OpenGL 4.6.

Advantages

The low profile 169 x 69 mm design fits slim or space‑restricted cases while the dual‑fan 0 dB cooling keeps the card silent at low temperatures and spins up when needed for efficient heat dissipation. Nano thermal paste and precise screw torque during assembly improve thermal contact and mounting pressure to enhance cooling performance without risking GPU damage. Hardware AV1 encode, AI‑enhanced XeSS upscaling and DirectX 12 Ultimate support provide modern media and gaming capabilities.

Suitable for

• Compact desktops and small form factor builds
• Media playback and 8K video output
• Casual to moderate gaming with DX12 Ultimate titles
• Content creation workflows that benefit from AV1 hardware encode and AI acceleration

Key specifications

• Graphics processor: Intel Arc A310
• Memory: 4 GB GDDR6
• Memory bus: 64 bit
• GPU frequency: up to 2000 MHz
• Interface: PCI Express x8 4.0

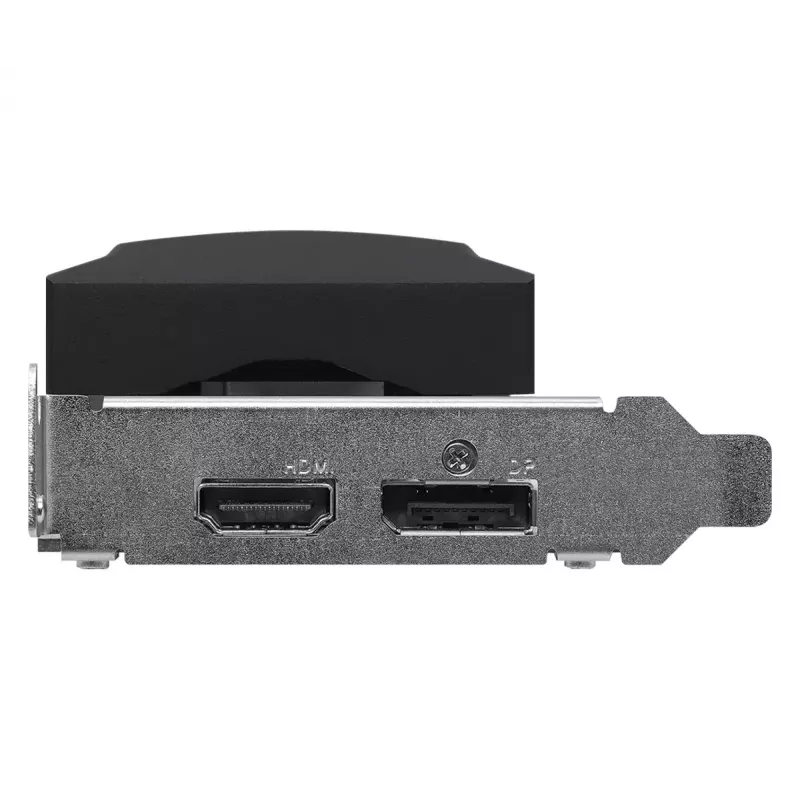

• Maximum resolution: 7680 x 4320 (8K)
• APIs: DirectX 12 Ultimate, OpenGL 4.6
• Cooling: active dual‑fan, 0 dB idle operation
• Dimensions (approx.): 169 x 69 mm (low profile)
• Weight: 0.263 kg

How to use

Install the card into an available PCI Express x8 (or x16) slot on a compatible motherboard, secure it with the mounting screw and connect any required power if specified by the system. Install the latest Intel/ASRock drivers or Intel® Arc™ Control software to enable features such as AV1 hardware encode, XeSS upscaling and automatic driver updates. Ensure adequate case airflow for optimal cooling; the fans remain idle at low temperature and automatically spin under load.

Recommendations

For best results pair the ASRock Intel Arc A310 with a compatible Intel® Core™ platform to take advantage of Intel® Deep Link features. Keep system drivers up to date and maintain unobstructed airflow in small form factor cases to preserve thermal efficiency and silence.
