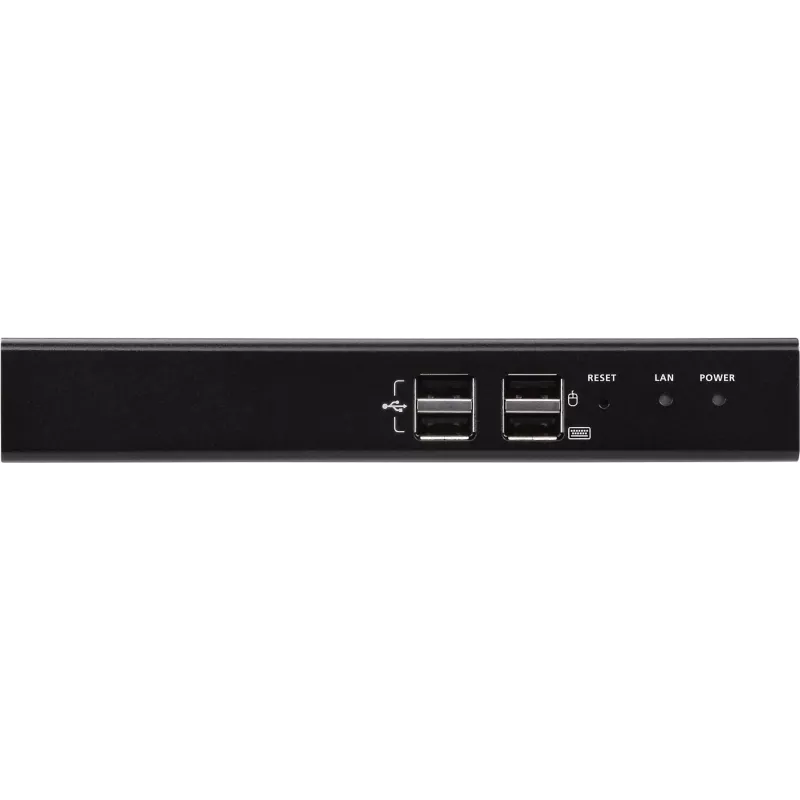

ATEN ALTUSEN KE8900SR ricevitore KVM-over-IP HDMI a display singolo slim - KVM-Extender - USB

The ATEN KE8900SR redefines remote server management by delivering pixel-perfect HDMI video, responsive USB control, and enterprise-grade security in a remarkably slim chassis. Unlike bulky KVM receivers that demand dedicated racks, this unit’s low-profile design fits seamlessly into space-constrained server rooms, broadcast suites, or control centers. As the receiver half of ATEN’s KVM over IP matrix system, it pairs with compatible transmitters (sold separately) to extend a single HDMI display, keyboard, mouse, and audio up to 100 meters over standard Cat 5e/6 cabling—no proprietary infrastructure required.

Highlights

• Full HD 1920 x 1200 @ 60Hz video with near-zero latency for fluid, real-time interaction.
• Dual USB 2.0 Type-A ports for keyboard, mouse, touchscreen, or virtual media devices.
• Built-in Gigabit Ethernet with AES-128 encryption, RADIUS, LDAP, and AD authentication.
• Stereo audio line-in/out and RS-232 serial for peripheral control and console access.
• Hot-pluggable and firmware-upgradable via web GUI for minimal downtime.

In daily use

Deploy the KE8900SR in a data center to consolidate servers at the rack while operators work from a climate-controlled office. The receiver connects directly to your HDMI monitor, USB peripherals, and speakers; a single Cat 5e/6 cable links back to the transmitter. Virtual media support lets you mount ISO images or USB drives remotely for OS installation or file transfer, while the OSD and web GUI simplify switching and configuration. The compact metal housing dissipates heat efficiently, and optional rack-mount kits keep cable runs tidy.

Full specifications

• Type: KVM over IP Receiver (single display)
• Video interface: HDMI (max resolution 1920 x 1200 @ 60Hz)
• USB ports: 2 x USB 2.0 Type-A (peripheral), 1 x USB 2.0 Type-B (console)
• Audio: 3.5mm stereo line-in and line-out
• Network: 1 x Gigabit Ethernet RJ-45
• Serial: 1 x RS-232 DB-9 male
• Security: AES-128 bit encryption, RADIUS, LDAP, AD support
• Management: OSD, Web GUI, firmware upgrade via web
• Max cable distance: 100 m (Cat 5e/6 or better)
• Power: External DC 5V adapter (included)
• Mounting: Optional rack-mount kit; desktop use out of box
• LED indicators: Power, link, video status

Final note

For IT administrators who need secure, low-latency KVM extension without the footprint of traditional receivers, the KE8900SR delivers enterprise reliability in a space-saving form factor. Pair it with ATEN KE8900ST transmitters for a complete point-to-point or matrix solution.
