ATEN switch KVM LCD 17 pollici 16 porte over IP (USB - PS/2 VGA) con porta per periferiche USB

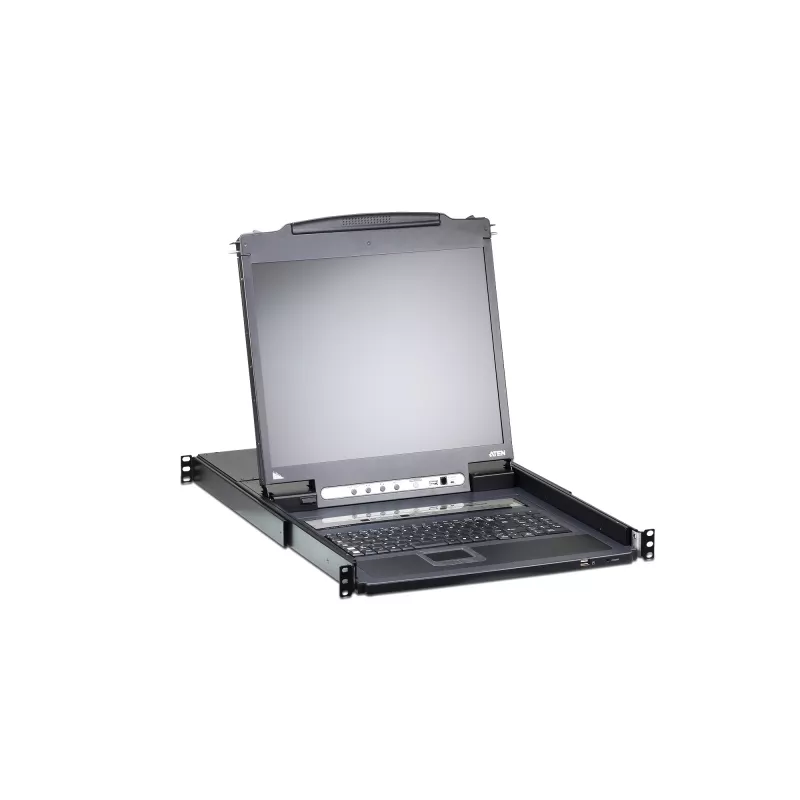

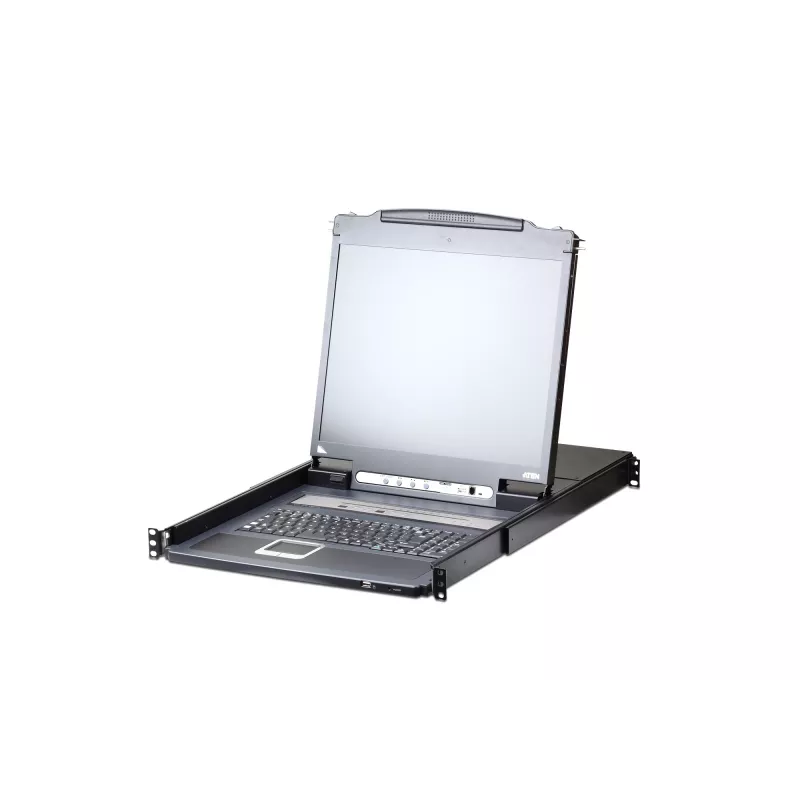

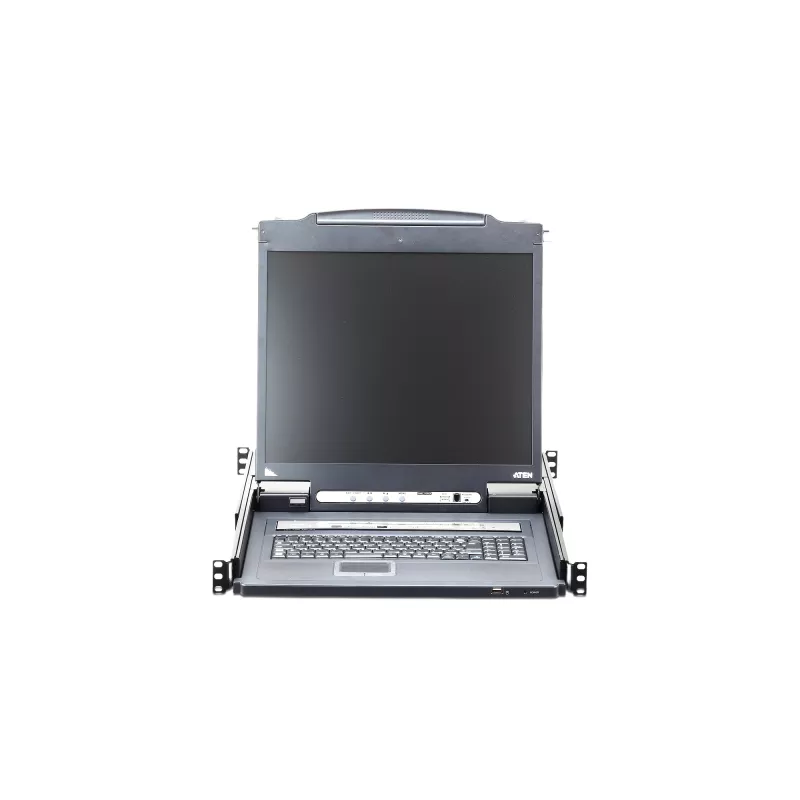

The ATEN CL5716iM Rack mounting Black is a 1U Slideaway™ LCD KVM switch designed for centralized control of up to 16 computers from a single console. It integrates a 17" LCD display with VGA output, supports both USB and PS/2 keyboard and mouse connections, and is built in a durable metal and plastic housing for rack installation. The switch provides local and IP-based remote access over TCP/IP, supports multiple concurrent user logins, and includes advanced features for secure, coordinated management of server installations.

Advantages

This rack-mountable KVM switch saves space by combining a keyboard, 17" LCD monitor and touchpad in a compact 1U sliding chassis while allowing detachment of the KVM module for maintenance. It supports daisy-chaining to expand control up to 256 computers and provides up to 32 concurrent user logins for the same bus. Security features include TLS 1.2 for browser sessions and RC4 128-bit encryption for keyboard, video and mouse data, plus support for RADIUS, LDAP, LDAPS and MS Active Directory authentication. Additional management features include a Message Board for real-time operator communication, Panel Array Mode for multi-server video monitoring, and Mouse DynaSync™ for pointer alignment across systems.

Suitable for

• Data center rack installations requiring centralized console access
• Server rooms where simultaneous local and remote management is needed
• Environments that require secure authenticated access and encrypted sessions
• IT setups needing scalable KVM control through daisy-chaining

Key specifications

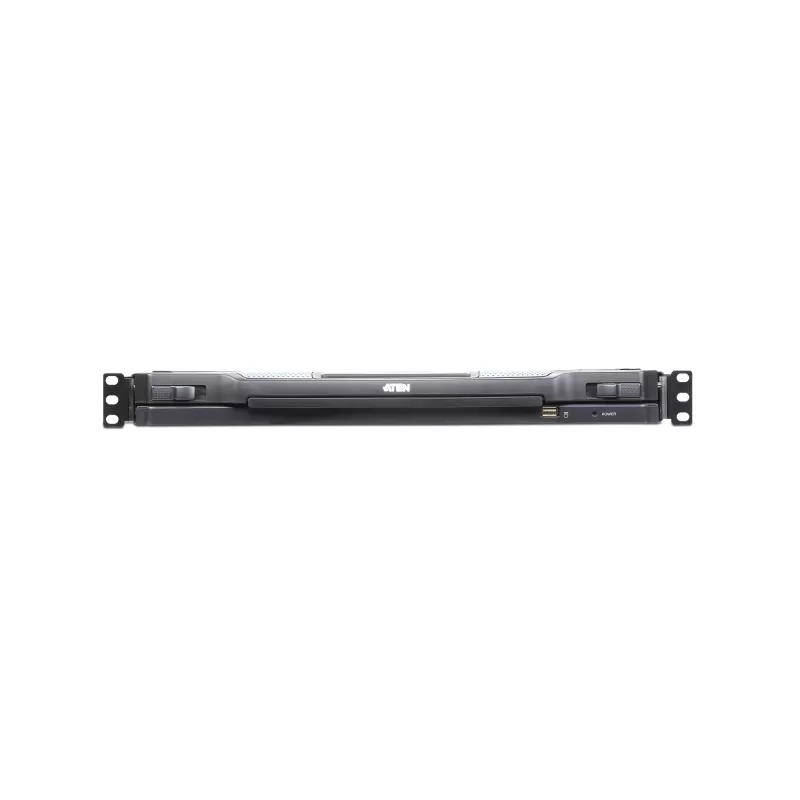

• Form factor: 1U rack-mountable sliding chassis with integrated LCD and keyboard/touchpad
• Maximum computers controlled: 16 per unit (expandable via daisy-chain up to 256)

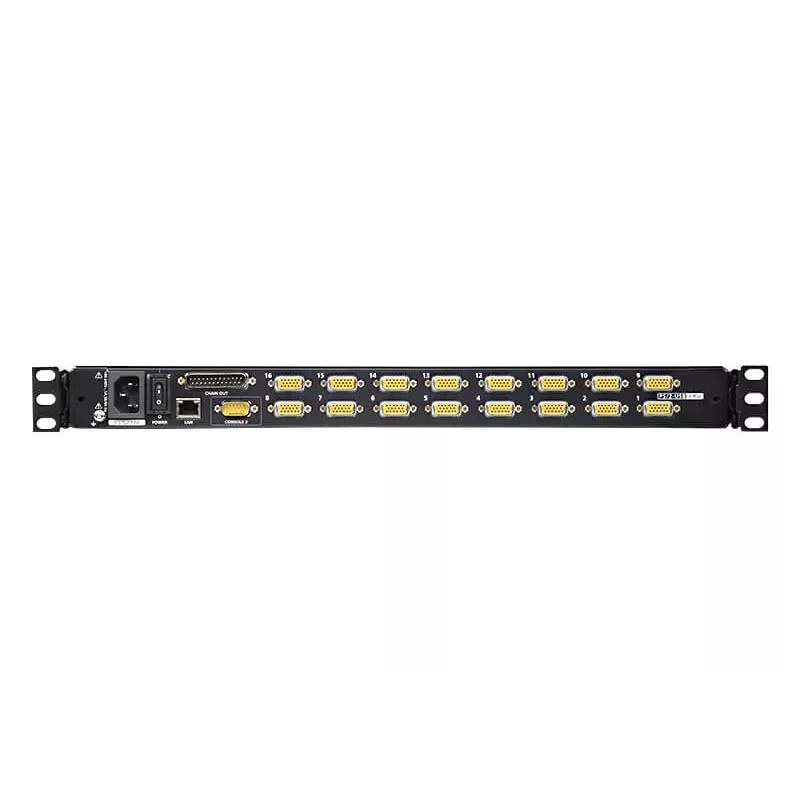

• Supported console connections: USB and PS/2 for keyboard and mouse
• Video output/type: VGA; integrated 17" LCD with maximum resolution of 1280 x 1024 pixels
• Remote access: IP-based remote management over TCP/IP with web browser access
• Concurrent user support: up to 32 simultaneous logins on a single bus
• Security protocols: TLS 1.2 for browser sessions and RC4 128-bit encryption for KVM data; supports RADIUS, LDAP, LDAPS and MS Active Directory authentication
• Weight: 13.61 kg
• Colour: Black

How to use

Install the CL5716iM in a standard 19" rack occupying 1U of space. Connect the integrated KVM console to your servers using the supported USB or PS/2 KVM cabling and connect VGA video leads to each target server as required. For local operation, slide out the console and use the keyboard, touchpad and integrated 17" monitor to select and control attached systems. For remote operation, configure the network settings and access the unit via a web browser over TCP/IP. Use the on-screen menu to manage user accounts, security settings, and enable features such as Panel Array Mode or Message Board for collaborative management.

Recommendations

Ensure firmware is kept up to date and configure TLS and authentication with RADIUS, LDAP/LDAPS or Active Directory to maintain secure remote access. Use high-quality KVM cabling and verify VGA connections for optimal display at 1280 x 1024. When scaling via daisy-chain, plan the layout and power requirements to avoid signal or power limitations.
