AXING BVS2069N amplificatore di derivazione domestico a banda larga 38 dB

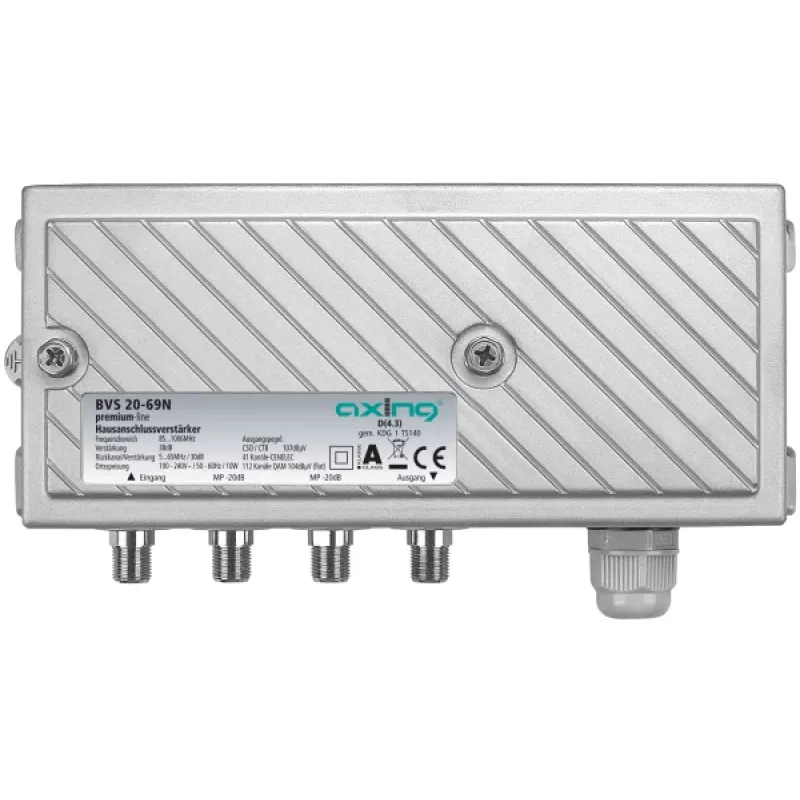

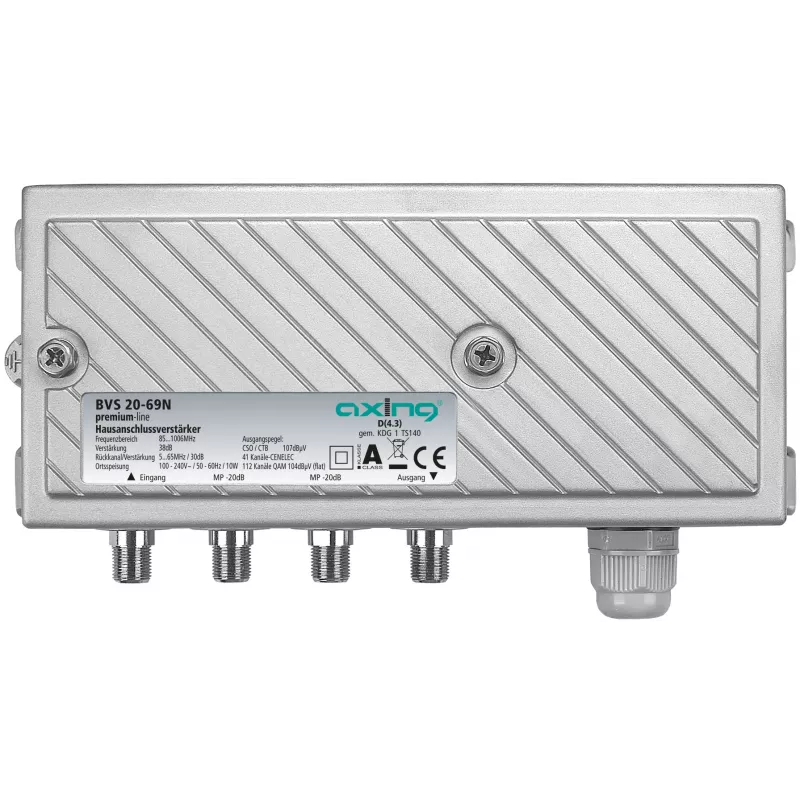

The AXING BVS2069N is a high-performance broadband house connection amplifier designed for modern CATV networks. With a forward path gain of 38 dB and active return path gain of 28 dB, it ensures reliable signal amplification for both downstream and upstream data, voice, and video services. Its robust die-cast aluminum housing provides excellent shielding and durability, making it suitable for indoor and outdoor installations in residential and commercial buildings.

Advantages

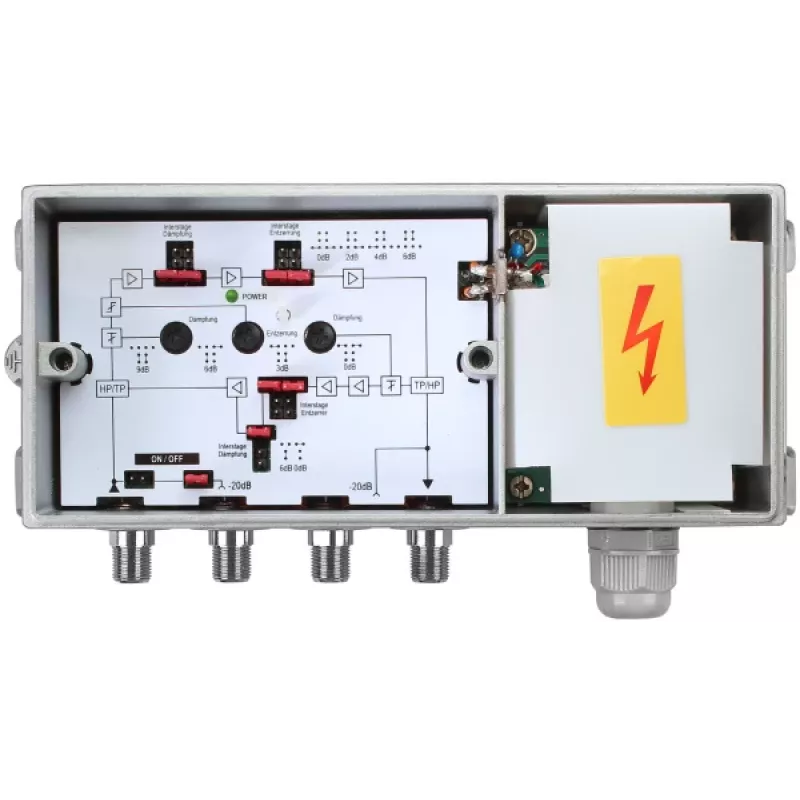

This amplifier delivers exceptional signal quality with a low noise figure of <7 dB and high shielding factor >100 dB, minimizing interference. The continuously adjustable attenuation (0-20 dB) and equalizer (0-18 dB) allow precise optimization for various cable lengths and signal conditions. The integrated -20 dB test point simplifies maintenance and troubleshooting.

Suitable for

• Residential and multi-dwelling unit (MDU) broadband distribution
• CATV, DOCSIS 3.1, and satellite IF systems
• Professional installer and network operator applications

Key specifications

• Forward path frequency: 47-1218 MHz
• Return path frequency: 5-65 MHz
• Forward gain: 38 dB
• Return gain: 28 dB (active)
• Max. output level: 110 dBµV (CTB/CSO)
• Attenuation range: 0-20 dB continuous
• Equalizer range: 0-18 dB continuous
• Noise figure: <7 dB
• Test point attenuation: -20 dB
• Shielding factor: >100 dB
• Power supply: 230 V AC, 50 Hz
• Power consumption: 7.5 W
• Connector: F-type
• Housing: Die-cast aluminum
• Operating temperature: -20 to +50 °C

Recommendations

For optimal performance, use high-quality F-type connectors and ensure proper grounding. The amplifier should be installed in a dry, ventilated location. Adjust attenuation and equalizer settings according to the specific network requirements using a field strength meter.
