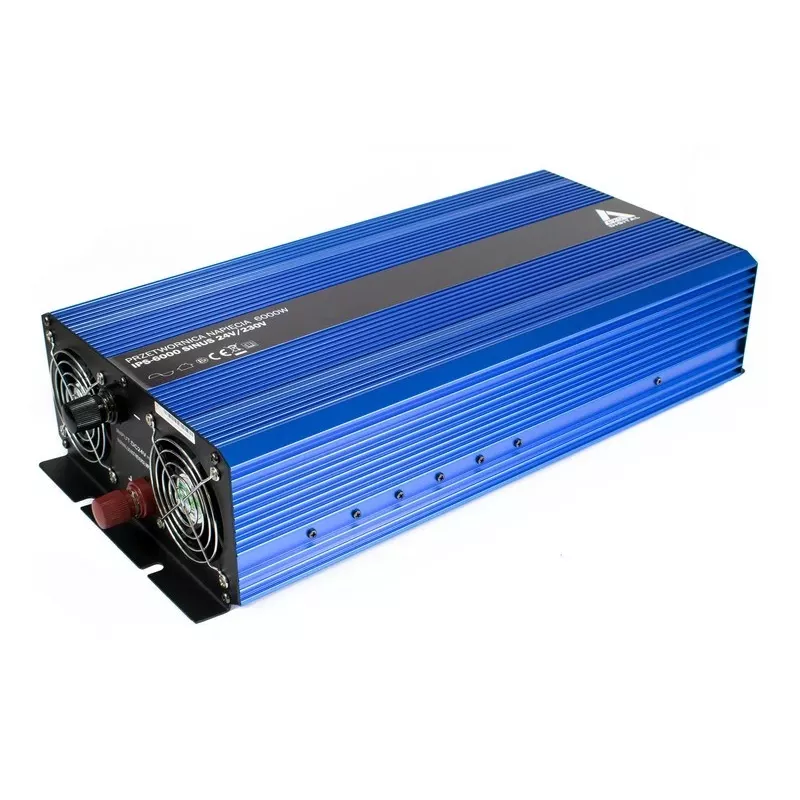

AZO Digital Inverter da 24V DC a 230V AC onda sinusoidale pura 6000W IPS-6000S

For installations where a standard modified sine wave inverter falls short, the AZO Digital IPS-6000S delivers a clean 230V AC pure sine wave output from a 24V DC battery bank. Its 6000W continuous rating and 12000W surge capability make it suitable for demanding inductive loads such as compressors, pumps, and power tools, while the pure sine wave ensures compatibility with sensitive electronics that might otherwise malfunction or overheat on a cheaper inverter.

Highlights

• 6000W continuous power, 12000W peak (20ms) for motor start-up and heavy loads.
• Pure sine wave output with less than 3% THD – safe for computers, medical devices, and variable-speed motors.
• Wide 21–30V DC input range with under-voltage and over-voltage protection to safeguard your battery bank.
• Built-in overload, short-circuit, and over-temperature protection with active fan cooling for reliable operation.

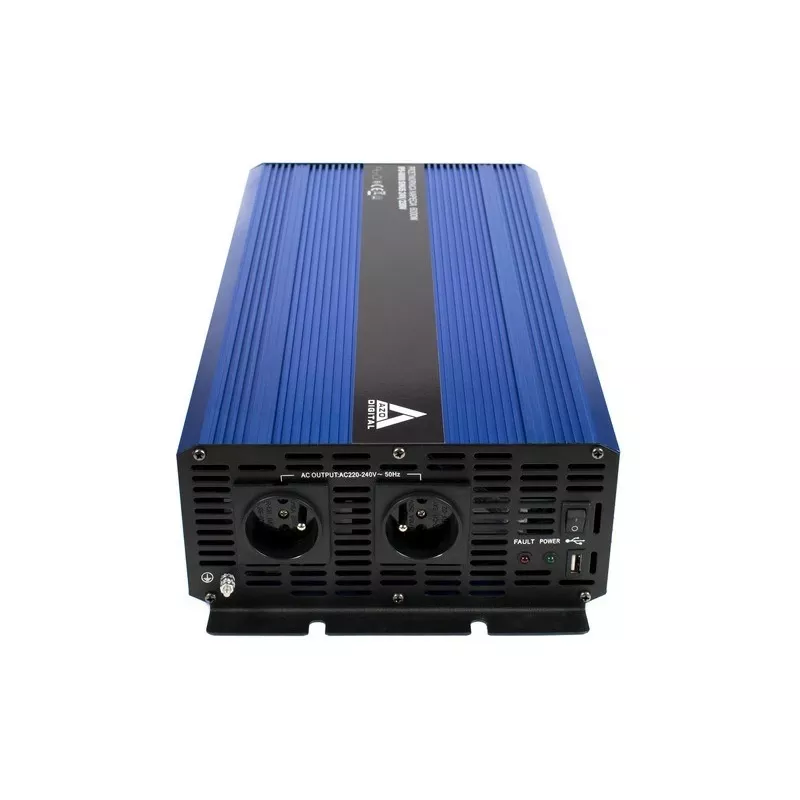

• Two Schuko output sockets and a remote control port for convenient integration into off-grid or backup systems.

In daily use

The IPS-6000S operates from a 24V battery system, making it ideal for solar installations, marine applications, or mobile workshops. Its high efficiency of over 90% minimises battery drain, and the no-load current draw of less than 0.8A helps preserve energy when the inverter is idle. LED indicators provide at-a-glance status, and the remote port allows you to switch the unit on or off from a distance. The robust design handles ambient temperatures from -10°C to +40°C, so it can be installed in a ventilated compartment without constant supervision.

Full specifications

• Input voltage: 24V DC (range 21–30V DC)
• Output voltage: 230V AC, 50Hz
• Continuous power: 6000W
• Peak power: 12000W (20ms)
• Output waveform: pure sine wave, THD <3%
• Efficiency: >90%
• No-load current: <0.8A
• Protections: overload, short circuit, over-temperature, under-voltage, over-voltage

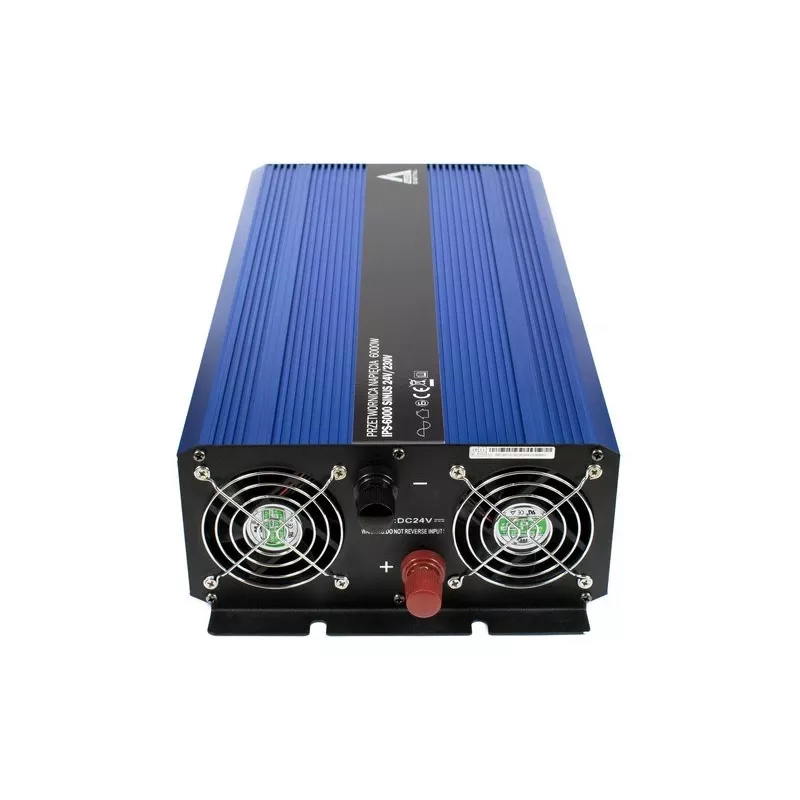

• Cooling: active fan
• Output sockets: 2x Schuko
• Remote control port: yes
• Display: LED indicators
• Operating temperature: -10°C to +40°C

Final note

With its pure sine wave output and rugged protection features, the AZO Digital IPS-6000S is a dependable power conversion solution for professionals who cannot afford downtime or equipment damage from inferior waveforms.
