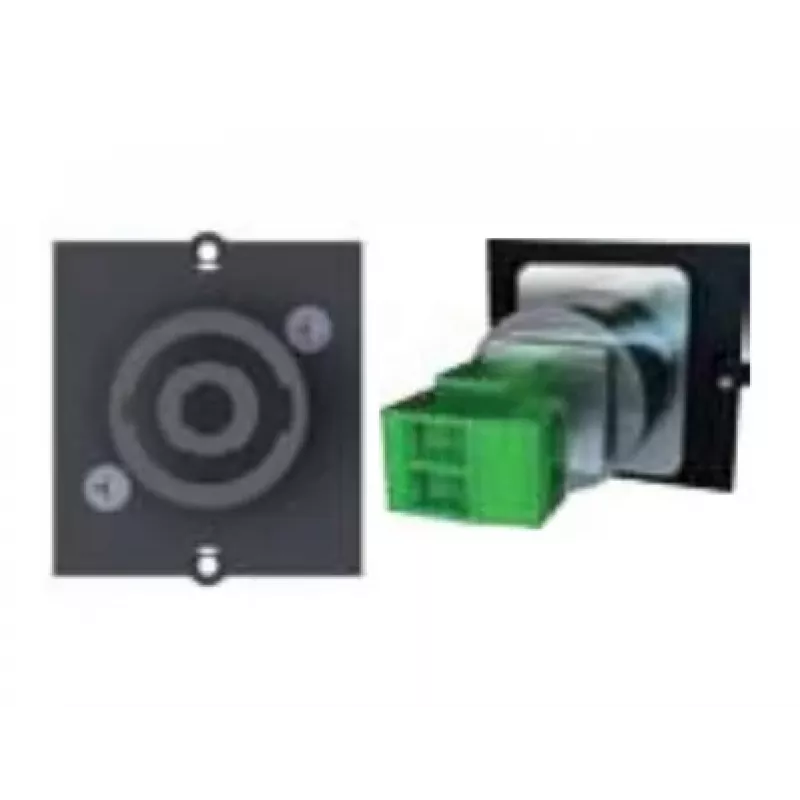

Bachmann Custom Module - Modular Faceplate Snap-In - Speakon (4 poli)

The Bachmann Custom Module is a modular faceplate snap-in Speakon connector designed for professional audio applications. This 4-pole female connector integrates seamlessly into Bachmann modular systems such as DESK 2, CONNECKT, and KINECT, providing reliable loudspeaker connections with tool-free installation.

Advantages

Tool-free snap-in installation saves time and effort. The quick lock/latch locking mechanism ensures secure connections. Compatible with Neutrik Speakon standards for broad interoperability. High-quality plastic housing and copper alloy contacts deliver durability and excellent conductivity.

Suitable for

• Professional audio systems
• Loudspeaker connections
• Bachmann modular faceplate systems
• Panel mount installations

Key specifications

• Connector Type: Speakon
• Number of Poles: 4-pole
• Module Type: Snap-in Custom Module
• Compatibility: Bachmann Modular Systems (DESK 2, CONNECKT, KINECT)
• Application: Professional Audio, Loudspeaker Connections
• Mounting Type: Panel Mount, Snap-in
• Connector Gender: Female
• Locking Mechanism: Quick Lock / Latch Lock
• Current Rating: 30 A RMS
• Voltage Rating: 250 V AC
• Housing Material: High-quality Plastic
• Contact Material: Copper Alloy
• Color: Black
• Installation: Tool-free
• Standard Compliance: Neutrik Speakon compatible
• Operating Temperature: -30°C to +80°C
• Insulation Resistance: >1 GΩ
• Dielectric Strength: 1500 V AC

Recommendations

This module is ideal for customizing Bachmann faceplate systems with high-quality Speakon connectivity. Ensure compatibility with your specific Bachmann system before ordering.
