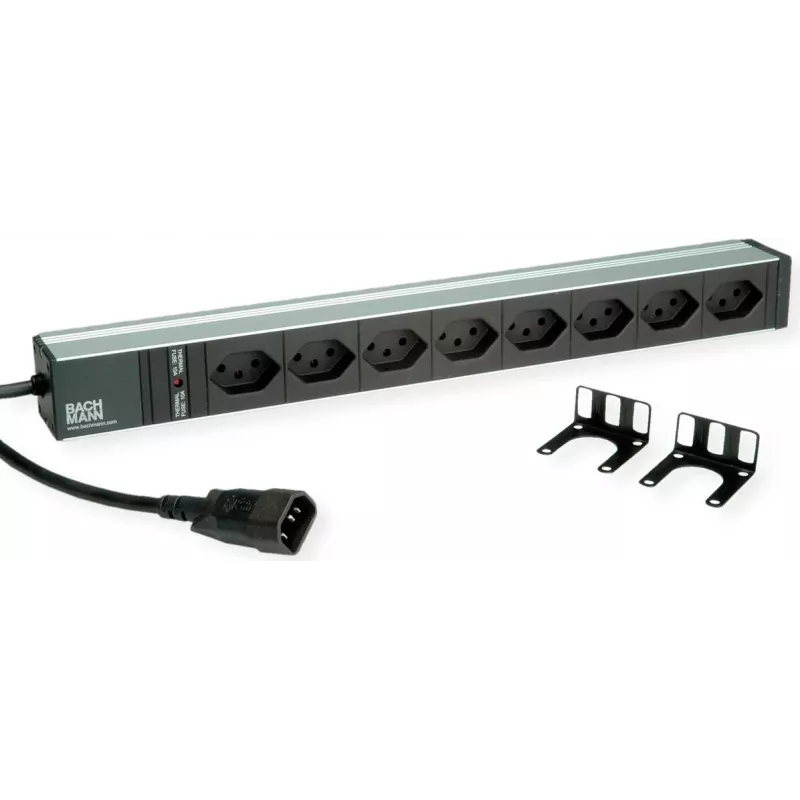

Bachmann PDU 19" 1U 8 vie C13 angolate 90° con ingresso C14, cavo 2m (800.4023)

For rack power distribution where space is tight and cable management matters, this Bachmann 800.4023 stands out with its 90° angled C13 outlets. Unlike straight outlets that force cables to protrude awkwardly, the right-angle design keeps connections flush to the chassis, reducing strain and freeing up valuable rack depth. It delivers eight individually fused-free outlets in a slim 1U aluminum housing, making it a practical choice for dense server enclosures, network cabinets, and AV racks.

Highlights

• Eight IEC C13 outlets with 90° angled orientation for tidy cable routing
• 19-inch 1U rackmount form factor with durable aluminum construction
• IEC C14 input plug with 2-meter cable for flexible connection to UPS or mains
• 10 A nominal current, 230 V AC, 2300 W maximum power rating
• Basic PDU — no surge protection or monitoring, ideal for straightforward power distribution

In daily use

Installing the 800.4023 takes minutes: secure it to the rack rails, plug the C14 connector into your power source, and connect equipment to the eight C13 outlets. The angled outlets prevent cable bundles from blocking airflow or adjacent devices, which is especially valuable in shallow racks. The black/silver aluminum housing dissipates heat effectively and resists wear, while the 2-meter input cable reaches most rack-mounted power sources without excess slack. Because this is a basic PDU, you get reliable, unfiltered power with no added complexity — perfect for servers, switches, and other equipment that already has its own protection.

Full specifications

• Product type: Power Distribution Unit (PDU)
• Rack size: 19-inch
• Rack units: 1U
• Number of outlets: 8
• Outlet type: IEC C13
• Outlet orientation: 90° angled
• Input connector: IEC C14 plug
• Input cable length: 2 m
• Nominal voltage: 230 V AC
• Nominal current: 10 A
• Max power rating: 2300 W
• Housing material: Aluminum
• Housing colour: Black / Silver
• Mounting type: Horizontal rackmount
• Overload protection: No
• Surge protection: No

Final note

When you need a no-frills, space-efficient power strip for your rack, the Bachmann 800.4023 delivers dependable performance with a smart angled outlet design that simplifies cable management.
