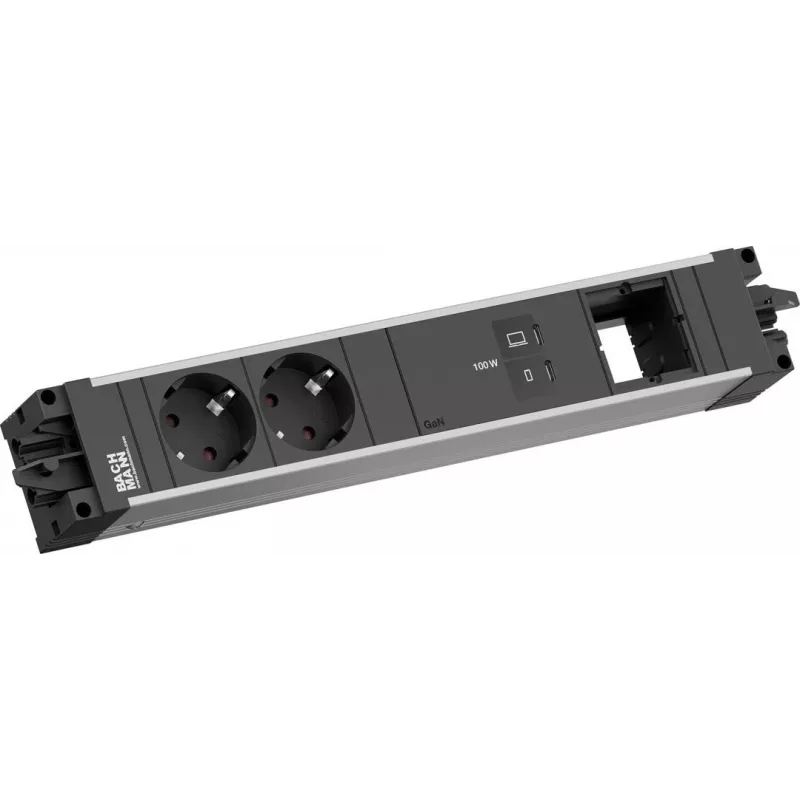

Bachmann STEP ALU 2x Schuko 1x USB-C 100W 1x Custom Module unità di distribuzione di corrente

Deliver 100W of USB-C Power Delivery alongside two Schuko sockets from a single sleek aluminum housing. The Bachmann STEP ALU integrates a high-output USB-C port, two 16A AC outlets, and a custom module slot for tailored connectivity—all in a compact, desk-mountable form factor.

Overview

The STEP ALU is a premium power distribution unit engineered for modern workspaces and technical environments. Its aluminum body ensures durability and effective heat dissipation, while the included 2-meter cable with Wieland GST18i3 plug provides flexible installation. The unit supports 230V AC input at 50/60 Hz, with a maximum current of 16A across the Schuko outlets.

What stands out

• USB-C Power Delivery up to 100W for fast charging of laptops, tablets, and smartphones.
• Dual Schuko (CEE 7/3) sockets rated at 16A for powering standard equipment.
• Custom module slot allows integration of additional functions such as extra USB ports, network modules, or other accessories.
• Robust aluminum housing with IP20 protection, suitable for indoor use.
• Versatile mounting options: desk clamp or screw mounting (accessories sold separately).

Technical details

• AC outlets: 2x Schuko (CEE 7/3), 16A max
• USB ports: 1x USB-C with Power Delivery, 100W max output
• Custom module slot: 1
• Input voltage: 230V AC, 50/60 Hz
• Input plug: Wieland GST18i3
• Cable length: 2 m, type H05VV-F 3G1.5mm²
• Housing: Aluminum
• Protection class: IP20
• Mounting: Desk clamp or screw (accessories sold separately)

Our verdict

A future-ready power solution that combines high-wattage USB-C charging with reliable AC distribution and expandability, all in a durable and stylish aluminum package.
