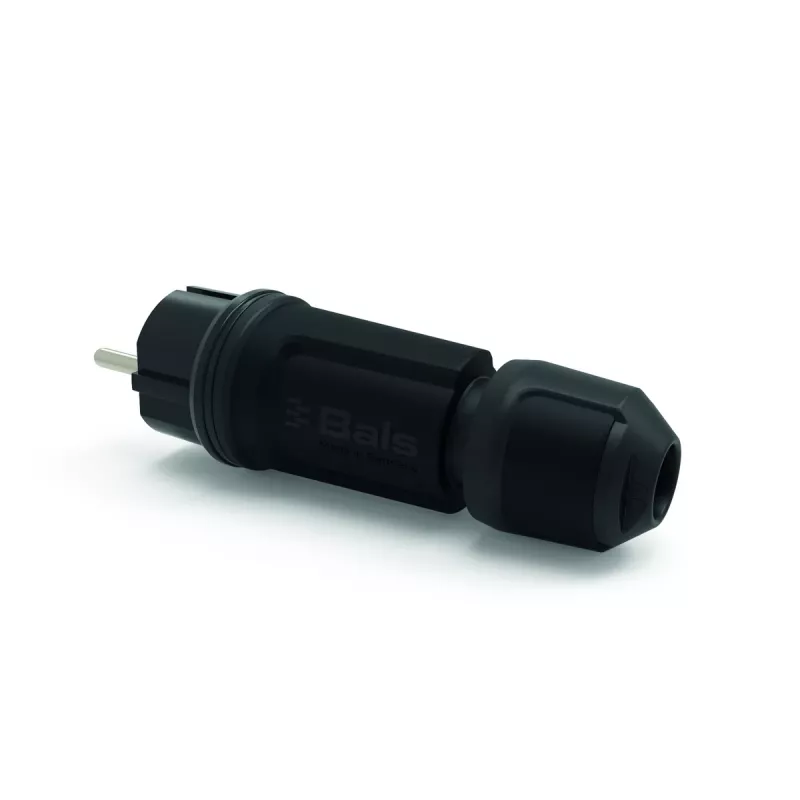

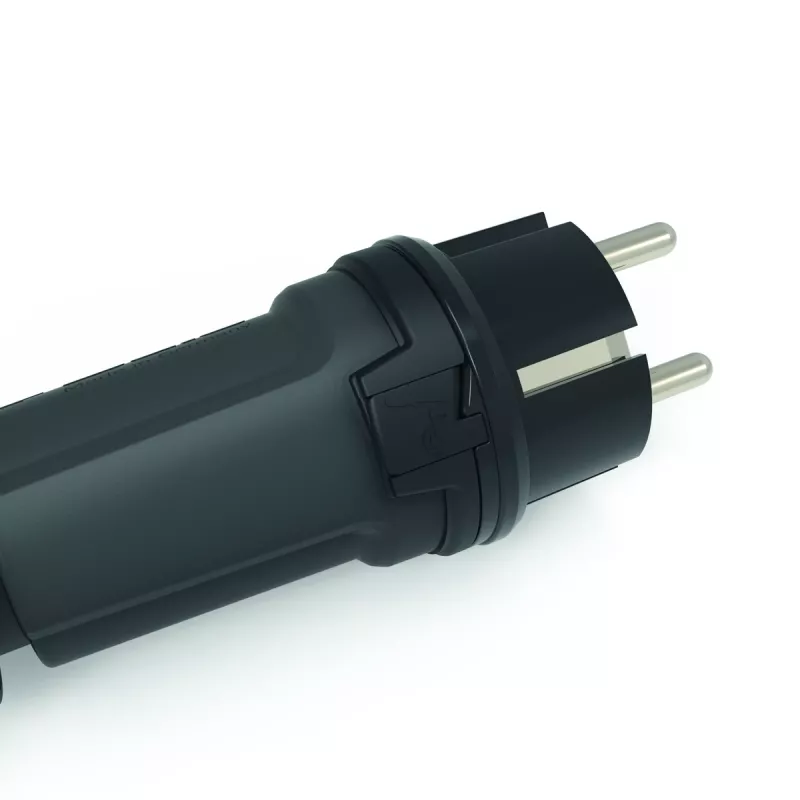

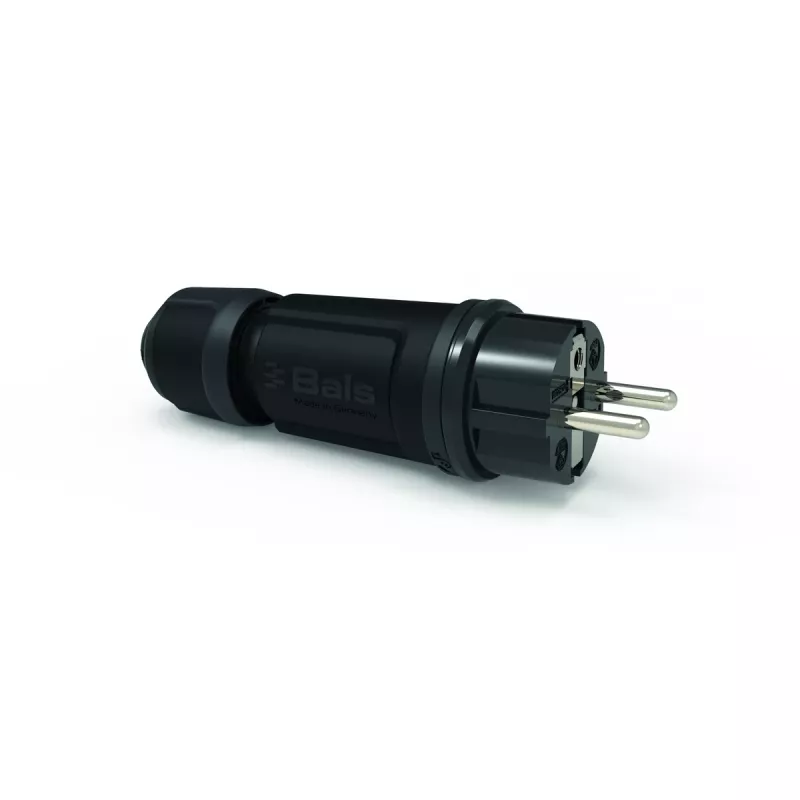

BALS 7372-1 spina Schuko 16A 250V IP54

For industrial and outdoor power connections where a secure, splash-proof plug is essential, the BALS 7372-1 Schuko plug delivers reliable performance. It is rated for 16 A at 250 V AC and features an IP54 ingress protection rating, making it suitable for use in workshops, construction sites, and outdoor installations. The plug has a straight cable entry and screw terminals for secure wiring.

Key specifications

• Plug type: Schuko (CEE 7/4)
• Current rating: 16 A
• Voltage rating: 250 V AC
• Number of poles: 2P+E
• Ingress protection: IP54
• Connection type: Screw terminals
• Cable entry: Straight
• Housing material: Polyamide (PA6)
• Colour: Black
• Cable diameter range: 6 - 13 mm
• Conductor cross-section: 1.5 - 2.5 mm²
• Operating temperature: -25 °C to +80 °C
• Contact material: Brass
• Mounting type: Cable mount

Why choose it

The BALS 7372-1 is built with a durable polyamide housing that withstands harsh conditions, and its screw terminals ensure a firm, vibration-resistant connection. The IP54 rating protects against dust and water splashes, making it a dependable choice for demanding environments.

Ideal use cases

• Industrial machinery and equipment
• Outdoor power distribution
• Construction sites
• Commercial facilities

Good to know

This plug meets VDE and IEC 60884-1 standards, ensuring compatibility and safety in professional applications.
