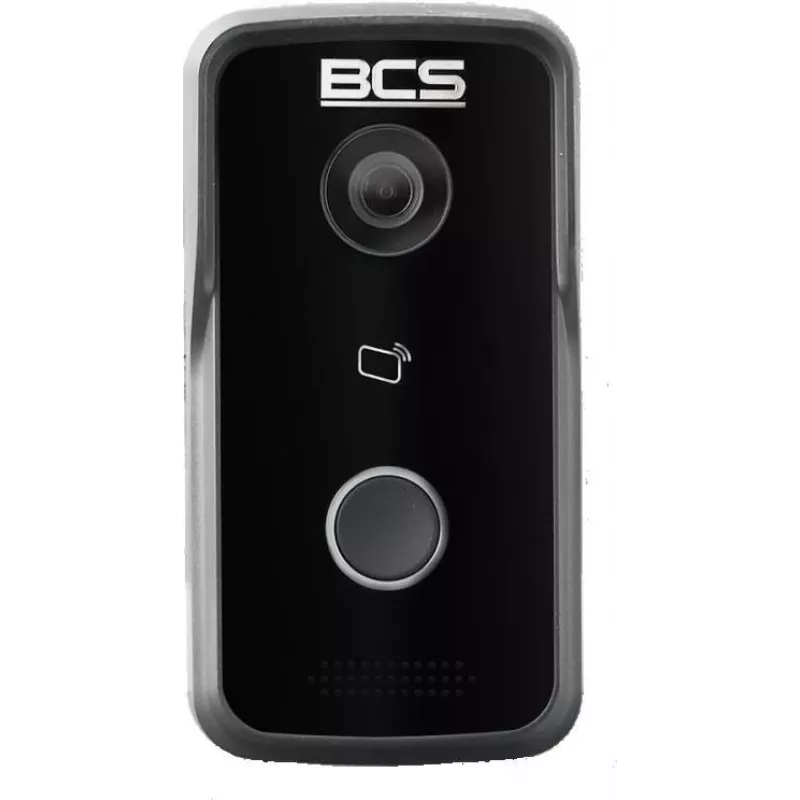

BCS Line BCS-PAN1320B-S Postazione di ingresso

The BCS Line BCS-PAN1320B-S is an outdoor entry station with a single illuminated call button and a 1/2.8" CMOS HD camera. It features a built-in Mifare 13.56 MHz proximity reader and supports surface mounting with an integrated rain hood.

Key features

• One call button with LED backlight
• 1/2.8" CMOS HD camera
• Camera viewing angle: 107°/60° (H/V)
• Built-in Mifare 13.56 MHz proximity reader
• Surface mounting, integrated rain hood
• Management via web service
• Video recording on BCS recorders: private protocol, Onvif or RTSP (depending on recorder series)
• Material: PC + acrylic, black housing
• Water resistance: IP65 (after additional sealing, see installation manual)
• Relay output NO/NC/COM
• Independent control of a wicket or gate using different proximity cards / key fobs
• RS485 output for connecting an additional relay module (BCS-MODKD-III)
• Ethernet port 10/100 Mbps auto-adaptive
• Power supply: 12VDC 1A or PoE 802.3 at/af/passive (when using PoE, additional power supply to the electric strike is required)
• Free BCS Line mobile app for Android and iOS
• To use the mobile app, a video intercom monitor must be installed on the premises.

Specifications

• Device name: BCS-PAN1320B-S
• Product line: BCS LINE
• Device type: Outdoor panel
• Number of call buttons: 1
• System type: IP
• Proximity reader: Yes, Mifare 13.56 MHz
• Keypad: No
• Number of door opening codes: Not applicable
• Fingerprint reader: No
• Display: No
• Indicator LEDs: No
• Camera sensor: 1/2.8'' CMOS
• Camera resolution: 720p
• Camera video compression: H.264, H.265
• Onvif support: Yes
• Camera horizontal viewing angle: 107°
• Panel lens: 2.2 mm
• Lens adjustment: No (no left/right adjustment)
• Camera illumination: IR
• Ethernet socket type: Adapter included
• Panel power supply type: 12V DC / PoE (802.3at/af/passive)
• Network connection: LAN
• Relay output: NO/NC/COM
• RS485 output: Yes (for connecting module BCS-MODKD2)
• 12V power output: 12VDC 200mA (only for relay module)
• Wiegand output: No
• Panel colour: Black
• Panel dimensions (mm): 135.1 × 70.6 × 34.6
• Panel weight (g): 326
• Mounting method: Surface-mounted
• Mobile app support: Yes (video intercom monitor installation required)
• Material: PC + acrylic
• Operating temperature: -30°C ~ +60°C
• Ingress protection: IP65
• Vandal resistance: IK04
• Max power consumption: 5W
• Number of supported premises: 1
