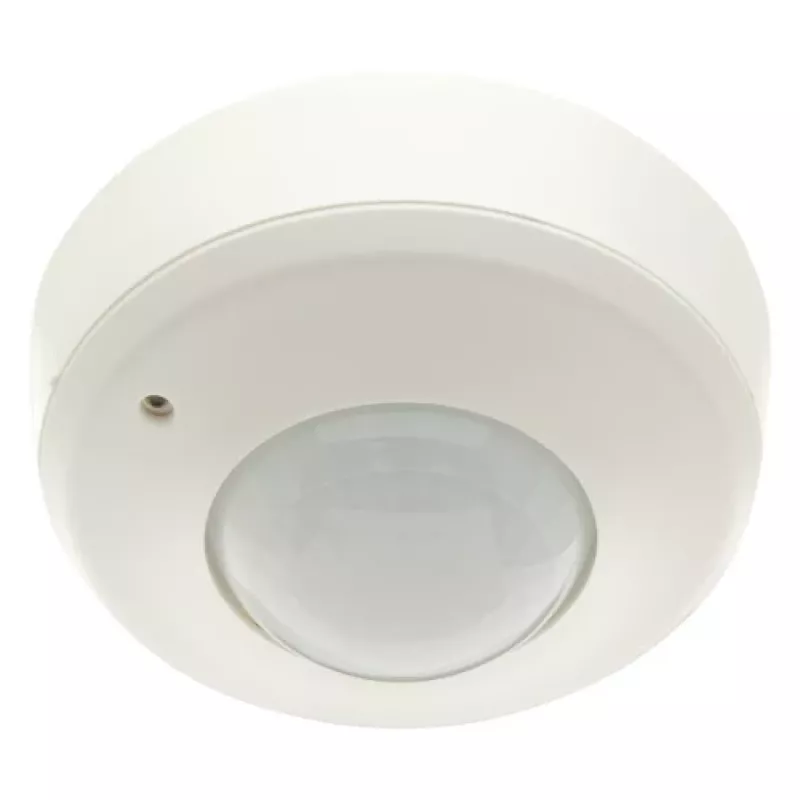

BEG BRCK LUXOMAT PD2-S-AP rilevatore di presenza slave da parete, 1 canale, IP20, bianco

Expand your B.E.G. presence detection system with the PD2-S-AP slave unit, delivering a 360° detection angle and an impressive motion detection range of up to Ø 24 m at a 2.5 m mounting height. This surface-mounted slave detector is engineered to extend the coverage of a compatible B.E.G. master unit, ensuring seamless integration for comprehensive indoor automation.

Overview

The BEG BRCK LUXOMAT PD2-S-AP is a passive infrared (PIR) slave presence detector designed for indoor surface mounting. It operates as an extension module, receiving power and control signals from a master detector via a simple 3-wire connection. With its IP20 rating and white UV-stabilised polycarbonate housing, it is suitable for a wide range of indoor environments, including offices, corridors, and meeting rooms.

What stands out

• 360° detection angle for complete coverage of the monitored area.
• Presence detection range up to Ø 8 m, ideal for fine motion detection.
• Motion detection range up to Ø 24 m, perfect for large spaces.
• Low power consumption of approximately 1 mA from the master unit.
• Simple 3-wire connection for quick and reliable installation.
• Durable UV-stabilised polycarbonate housing in white.

Technical details

• Product type: Presence detector (slave unit)
• Mounting type: Surface mounted (AP)
• Detection technology: Passive infrared (PIR)
• Detection angle: 360°
• Detection range (presence): Up to Ø 8 m at 2.5 m mounting height
• Detection range (motion): Up to Ø 24 m at 2.5 m mounting height
• Recommended mounting height: 2.5 - 3 m
• Ingress protection: IP20
• Colour: White
• Housing material: UV-stabilised polycarbonate
• Operating temperature: -25 °C to +50 °C
• Relative humidity: 0 - 95 % (non-condensing)
• Power supply: Via master unit (e.g., 12-24 V DC)
• Current consumption: Approx. 1 mA (from master)
• Connection type: 3-wire connection to master
• Application area: Indoor
• Compliance: CE

Our verdict

The PD2-S-AP slave detector is a reliable and efficient solution for expanding your B.E.G. presence detection network. Its wide detection ranges and simple installation make it an excellent choice for professional indoor automation projects.
