BEMKO rilevatore di movimento PIR 800W 360° con sonda

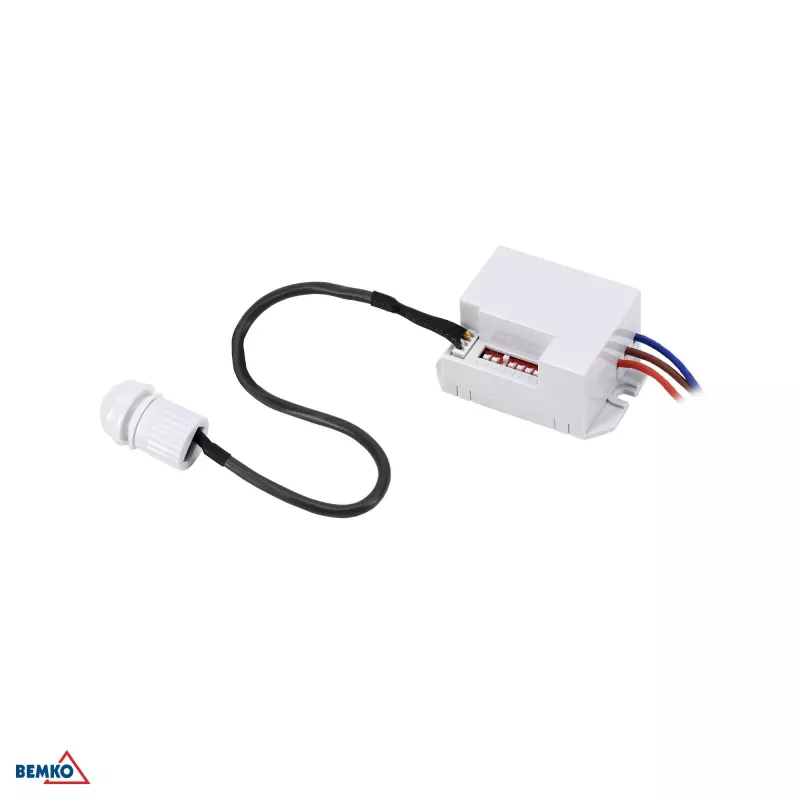

The BEMKO PIR Motion Sensor 800W 360° with Probe is a high-quality passive infrared sensor designed for automatic lighting control in indoor environments. Featuring a 360° detection angle and an external probe for enhanced sensitivity, this sensor is ideal for offices, warehouses, corridors, and other commercial or residential spaces. It supports a maximum load of 800W for incandescent lamps and 200W for LED/fluorescent lamps, making it versatile for various lighting setups.

Advantages

Energy-saving automatic control with adjustable time delay and light sensitivity. Easy flush-mount installation on ceilings. Reliable PIR technology with a detection range of up to 6 meters.

Suitable for

• Indoor lighting control in offices, meeting rooms, and hallways
• Warehouses and storage areas
• Staircases and corridors
• Bathrooms and utility rooms

Key specifications

• Sensor Type: PIR (Passive Infrared)
• Detection Angle: 360°
• Max Load (Incandescent): 800W
• Max Load (LED/Fluorescent): 200W
• Power Supply: 230V AC, 50Hz
• Detection Range: Max 6m (<24°C)
• Time Delay Adjustment: 10 seconds to 7 minutes
• Light Sensitivity Adjustment: <3 - 2000 LUX
• Installation Height: 2.2 - 4 meters
• Protection Rating: IP20
• Operating Temperature: -20°C to +40°C
• Power Consumption (Standby): ~0.45W
• Power Consumption (Operating): ~0.1W
• Mounting Type: Flush Mount (Ceiling)
• Sensor Design: External Probe
• Material: PC (Polycarbonate)
• Color: White
• Detection Speed: 0.6 - 1.5 m/s

Recommendations

For optimal performance, install the sensor at a height of 2.2-4 meters and avoid placing it near heat sources or air conditioning vents. Adjust the time delay and light sensitivity according to the specific room requirements.
