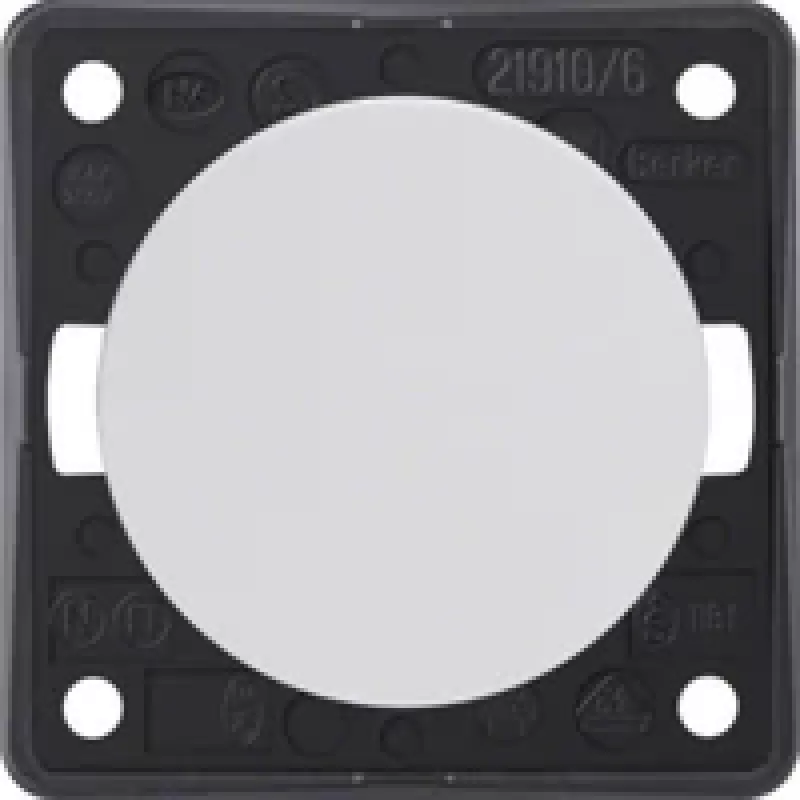

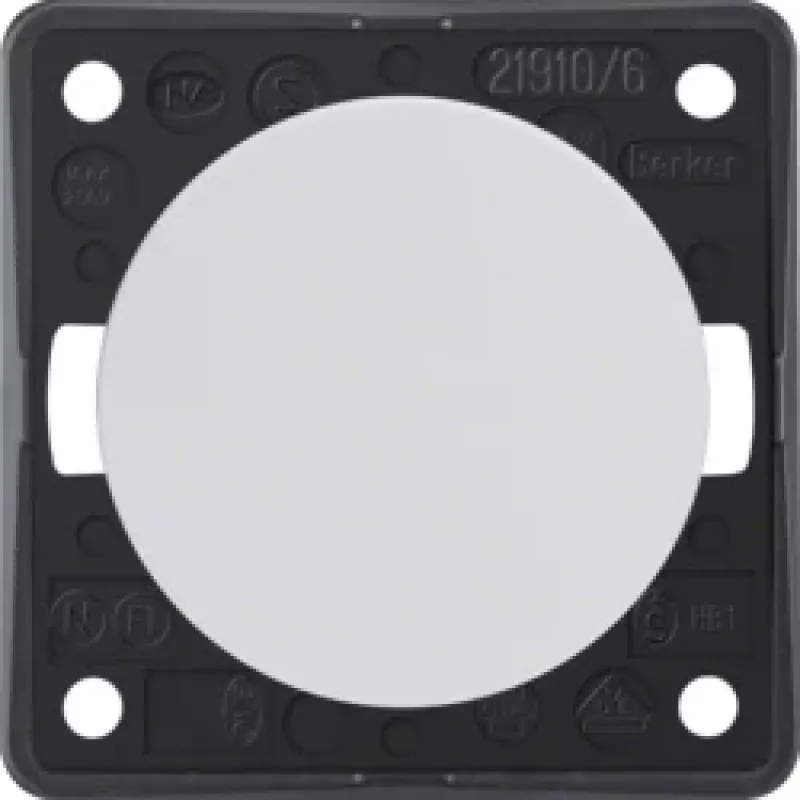

Berker 936562509 presa SCHUKO 1 modulo IP44 bianco da incasso

The Berker 936562509 is a high-quality SCHUKO socket outlet designed for reliable electrical connections in damp rooms and protected outdoor areas. With IP44 protection, it offers excellent resistance against splashing water and dust ingress. The flush-mounted design ensures a clean, integrated look when paired with compatible Berker K.1 or K.5 frames.

Advantages

This socket outlet features a hinged cover that protects the socket when not in use, enhancing safety and durability. The screw terminals allow for secure wiring with conductor cross-sections from 1.5 to 2.5 mm². Its UV-stabilized thermoplastic material ensures long-lasting performance even in challenging environments.

Suitable for

• Damp rooms such as bathrooms, kitchens, and laundry rooms
• Protected outdoor areas like covered terraces and garages
• Residential and commercial installations requiring IP44 protection

Key specifications

• Rated voltage: 250 V AC
• Rated current: 16 A
• Frequency: 50/60 Hz
• Socket type: Type F (SCHUKO)
• Number of sockets: 1-gang
• Ingress protection: IP44
• Impact resistance: IK05
• Material: Thermoplastic, UV-stabilized
• Surface finish: Matt
• Connection: Screw terminals
• Terminal capacity: 1.5 - 2.5 mm²
• Operating temperature: -5 to +40 °C
• Halogen-free: Yes
• Mounting: Flush-mounted (claw and screw fastening)
• Series compatibility: Berker K.1, K.5 (frame required)

Recommendations

For a complete installation, pair this socket outlet with a suitable Berker K.1 or K.5 frame. Ensure the mounting box is properly installed before wiring. This product is ideal for areas where protection against moisture and dust is required.
