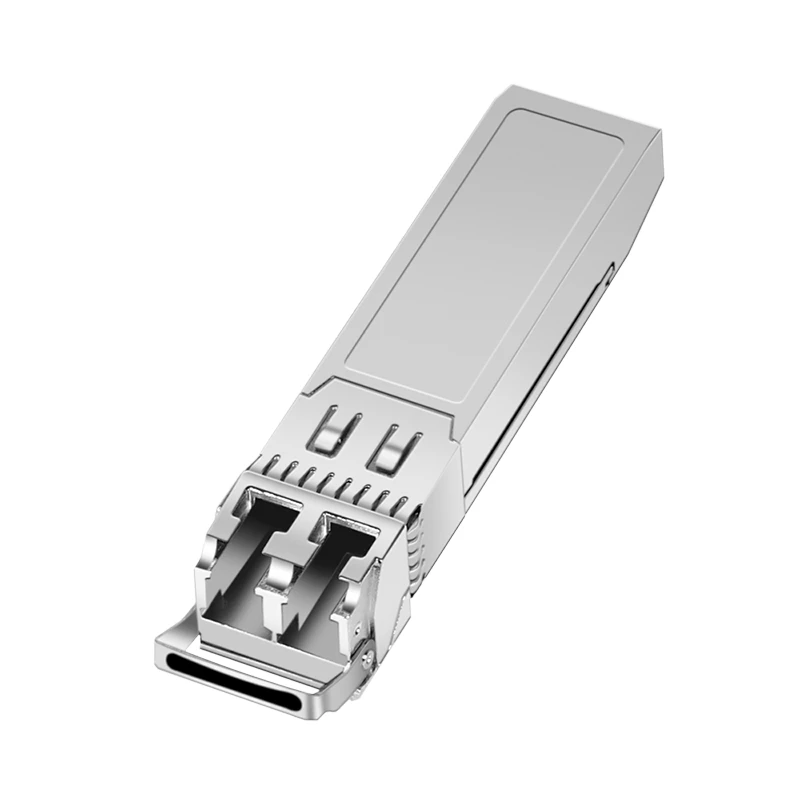

LogiLink modulo ricetrasmettitore SFP+ 10G SM 20 km LC

Engineered for long-haul 10 Gigabit Ethernet links over single-mode fiber, the LogiLink SFP008 SFP+ transceiver delivers consistent 1310 nm transmission across distances up to 20 km. Unlike generic modules that often compromise on signal integrity or thermal stability, this unit leverages a DFB laser and PIN photodiode for reliable performance. Its metal housing with EMI shielding ensures stable operation even in densely packed data center racks, while Digital Diagnostic Monitoring (DDM) provides real-time visibility into critical parameters like optical power and temperature.

Highlights

• 10GBASE-LR compliant for 10 Gbps data rate
• Hot-pluggable SFP+ form factor for easy installation
• Supports single-mode fiber up to 20 km
• DDM/DOM for real-time monitoring
• Low power consumption under 1.0 W
• Operating temperature range 0°C to 70°C

In daily use

Deploying the SFP008 in enterprise networks or data center interconnects is straightforward: insert the module into any SFP+ port on a switch, router, or server adapter, connect a duplex LC single-mode fiber cable, and the link comes up automatically. The full-duplex operation and adherence to IEEE 802.3ae, SFF-8431, SFF-8432, and SFF-8472 standards mean it works seamlessly with major networking equipment brands. The robust metal construction and EMI shielding reduce interference, ensuring stable performance even in high-density environments. With an MTBF exceeding 500,000 hours, this transceiver is built for years of continuous operation.

Full specifications

• Form Factor: SFP+
• Data Rate: 10 Gbps
• Ethernet Standard: 10GBASE-LR
• Fiber Type: Single-Mode Fiber (SMF)
• Max Cable Distance: 20 km
• Wavelength: 1310 nm
• Connector Type: LC Duplex
• DDM/DOM Support: Yes
• Hot-Pluggable: Yes
• Transmitter Type: DFB Laser
• Receiver Type: PIN Photodiode
• Power Consumption: < 1.0 W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: IEEE 802.3ae, SFF-8431, SFF-8432, SFF-8472
• Duplex Mode: Full-Duplex
• Voltage Supply: 3.3V
• Housing Material: Metal, EMI Shielded
• MTBF: > 500,000 hours

Final note

With its robust design and advanced monitoring capabilities, the LogiLink SFP008 is a reliable choice for demanding network environments.
