Modulo ricetrasmettitore di rete in fibra ottica BlueOptics QTA1C04L2C000E1G-BO 100000 Mbit/s QSFP28

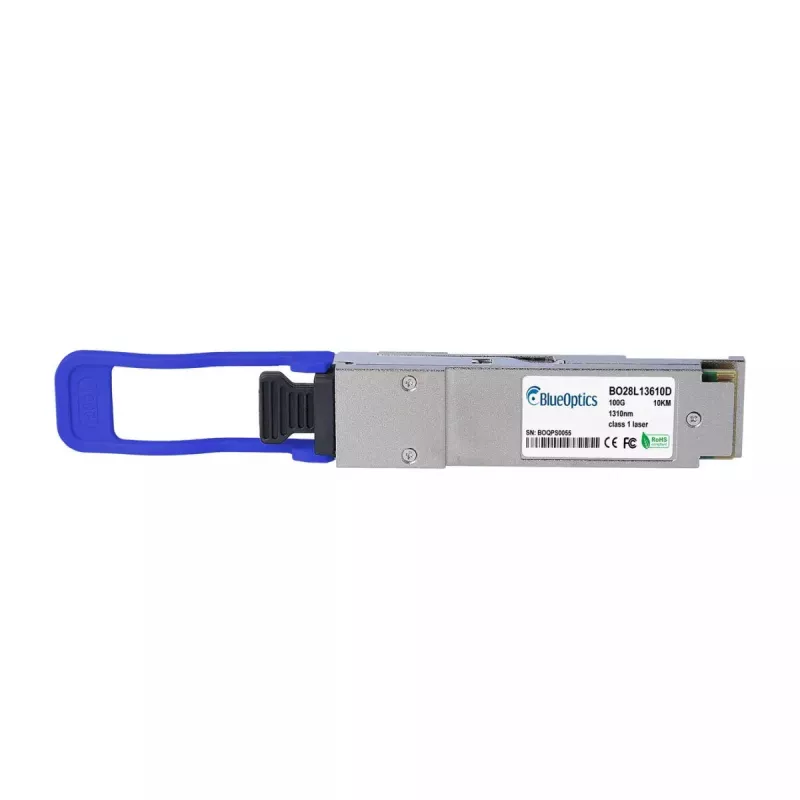

The BlueOptics QTA1C04L2C000E1G-BO is a QSFP28 fiber optic network transceiver module designed for 100000 Mbit/s (100G) optical links. It comes in a durable silver metal housing, weighs approximately 40 g, and uses a QSFP28 interface with LC duplex connectivity suitable for single-mode fiber and long-reach applications up to several kilometres when deployed according to the supported optical standard. The module supports common high-speed protocols and is intended for integration into compatible switches, routers and storage systems that accept QSFP28 form-factor transceivers.

Advantages

The transceiver provides a high data transfer capacity of 100000 Mbit/s in a compact QSFP28 package, enabling consolidation of multiple 10G lanes into a single 100G link. The metal housing offers mechanical robustness and thermal dissipation. Built to industry MSA form-factor and optical-interface conventions, the module supports digital diagnostics for remote monitoring of supply voltage, optical power, laser bias current and temperature where the host hardware exposes DDM/DOM information. Lightweight construction and standard LC duplex connectivity simplify installation in fibre patching environments.

Suitable for

Key specifications

How to use

Install the BlueOptics QSFP28 transceiver into a compatible QSFP28 port on your switch, router or storage device, following the host equipment manufacturer’s guidelines for hot-plug handling. Connect LC duplex single-mode fiber patch cords to the module’s LC ports, ensuring correct transmit/receive orientation. Verify link status and, if available, monitor DDM/DOM parameters through the host system to confirm optical power levels, temperature and module health. Use appropriate fibre patch panels or protection to maintain connector cleanliness and bend-radius requirements for single-mode fibre.

Recommendations

Ensure host equipment explicitly supports the QSFP28 module type and DDM/DOM functionality before deployment. Use certified single-mode LC duplex patch cords and keep connectors clean to preserve optical performance. For long-distance links, follow the optical power budget and LC connector recommendations of your network design to achieve reliable 100G transmission.
