BIRA HARTTE XS12U-B apriporta serie XS (R5) 12V AC/DC standard con molla rinforzata

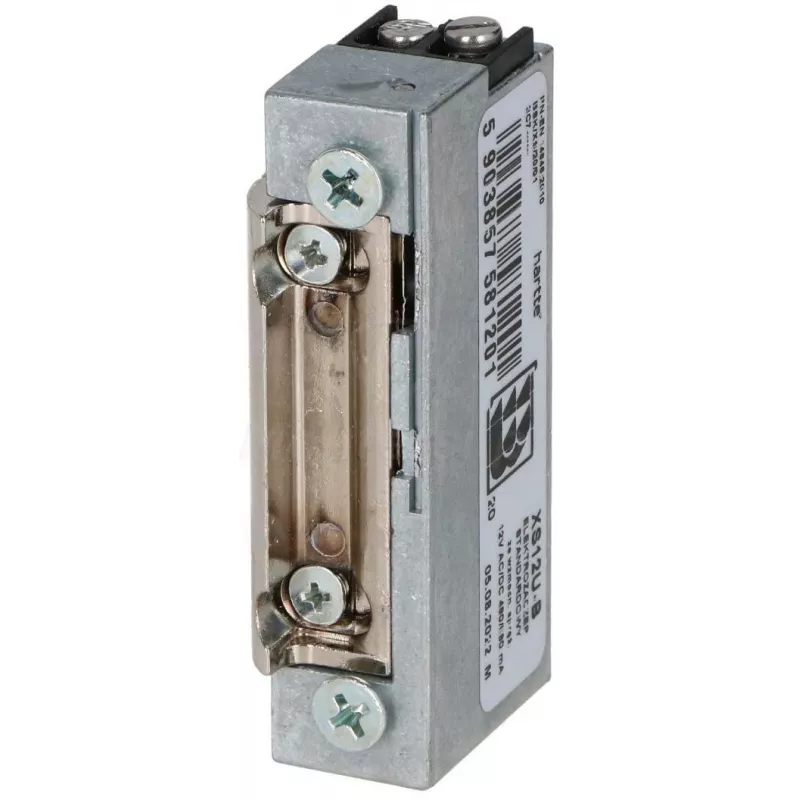

The BIRA HARTTE XS12U-B is a high-quality electric strike from the XS Series, designed for reliable access control in residential and commercial applications. This fail-secure (standard) model operates on 12V AC/DC and features a reinforced spring for enhanced durability and holding force. Ideal for use with intercoms and access control systems, it is compatible with wooden, metal, and PVC doors.

Advantages

Robust construction with zinc alloy body and steel faceplate ensures long-lasting performance. The reinforced spring provides a holding force of 3000 N (300 kg) and a durability rating of 300,000 cycles, making it suitable for high-traffic environments. Reversible handing allows for left or right door installation.

Suitable for

• Access control systems
• Intercom systems
• Residential and commercial doors (wooden, metal, PVC)

Key specifications

• Product Type: Electric Strike
• Model: XS12U-B
• Series: XS Series (R5)
• Operating Voltage: 12V AC/DC
• Current Consumption: 250 mA (AC), 300 mA (DC)
• Operation Mode: Fail-Secure (Standard)
• Holding Force: 3000 N (300 kg)
• Durability: 300,000 cycles
• Special Feature: Reinforced Spring
• Installation: Mortise (Flush Mount)
• Handing: Reversible (Left/Right)
• Body Material: Zinc Alloy
• Faceplate Material: Steel
• Faceplate Dimensions: 160 x 25 x 3 mm
• Operating Temperature: -10°C to +50°C
• Application: Access Control Systems, Intercoms
• Compatibility: Wooden, Metal, PVC Doors

Recommendations

For optimal performance, ensure proper alignment and use with a compatible power supply. Professional installation is recommended.
