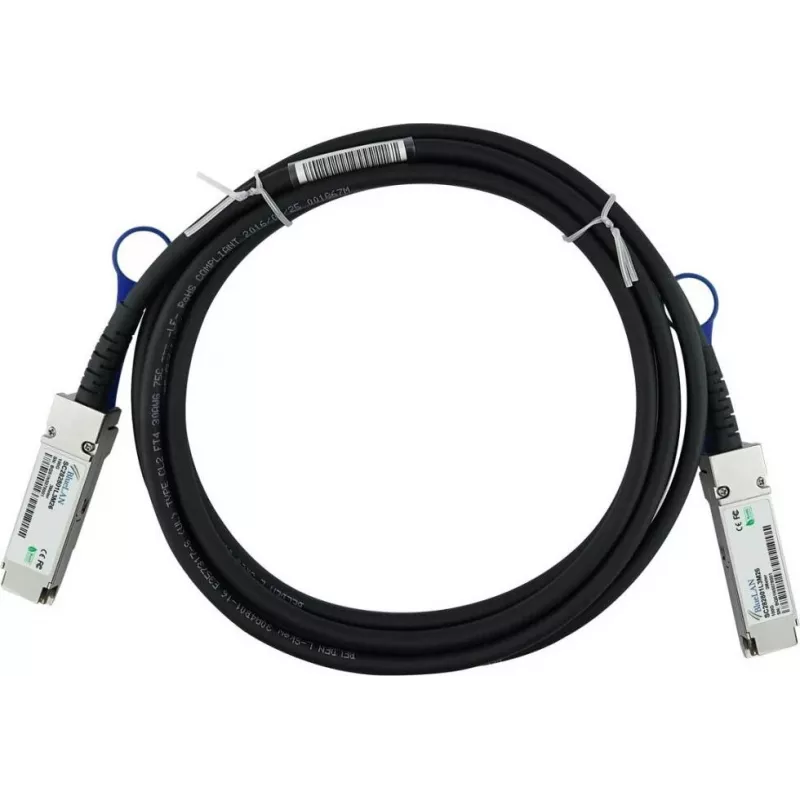

BlueLAN 980-9I62H-00C02A-BL cavo Direct Attach QSFP28 compatibile NVIDIA, 100GBASE-CR4, 3m, 26AWG

The BlueLAN 980-9I62H-00C02A-BL is a high-performance, passive copper direct attach cable (DAC) designed for 100 Gigabit Ethernet applications. It is fully compatible with NVIDIA 980-9I62H-00C02A and provides a cost-effective, low-power solution for short-range interconnects within data centers and enterprise networks.

Advantages

This QSFP28 DAC cable offers reliable 100 Gbps connectivity with minimal power consumption (<0.5W) and low latency. Its passive design ensures no signal processing, making it ideal for high-density environments. The 26AWG construction and 3-meter length provide flexibility for rack-to-rack or rack-to-switch connections.

Suitable for

• Data center top-of-rack and end-of-row switching
• High-performance computing clusters
• Enterprise network aggregation
• Storage area networks (SAN)

Key specifications

• Data Rate: 100 Gbps
• Form Factor: QSFP28 to QSFP28
• Cable Type: Passive Direct Attach Copper (DAC)
• Standard: 100GBASE-CR4 per IEEE 802.3bj
• Length: 3 meters (9.8 ft)
• Wire Gauge: 26 AWG
• Impedance: 100 Ohm
• Hot Swappable: Yes
• Power Consumption: <0.5W
• Compatibility: NVIDIA 980-9I62H-00C02A

Recommendations

For optimal performance, use with compatible QSFP28 ports on switches, routers, and network interface cards. Ensure proper cable management to avoid bending beyond the minimum bend radius.
