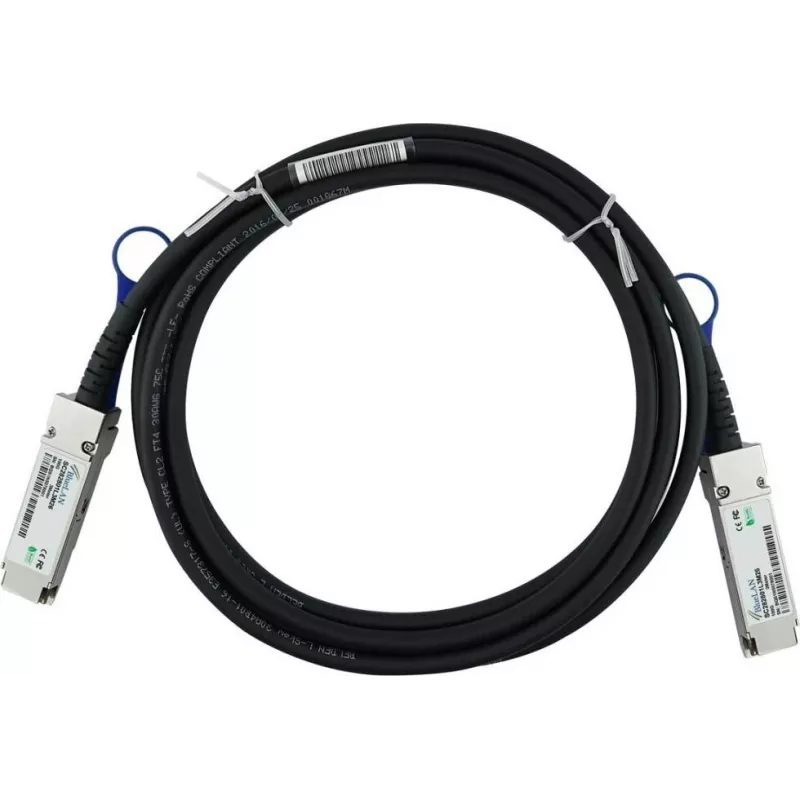

BlueLAN cavo Direct Attach in rame QSFP28 compatibile 100GBASE-CR4 1m 30AWG DAC passivo

The BlueLAN 980-9I62S-00C001-BL is a high-performance, passive Direct Attach Copper (DAC) cable designed for 100 Gigabit Ethernet connectivity. This QSFP28 to QSFP28 cable is fully compatible with NVIDIA 980-9I62S-00C001 and offers a cost-effective, low-latency solution for short-range interconnects in data centers and high-performance computing environments.

Advantages

This passive DAC cable provides reliable 100 Gbps data transmission over a 1-meter length, using 30 AWG twinax copper construction. It is hot-swappable, requires no power, and offers excellent signal integrity for critical networking applications. The BlueLAN brand ensures compatibility and performance at a competitive price.

Suitable for

• Data center top-of-rack to server/storage connections
• High-performance computing (HPC) clusters
• Ethernet networking with 100GBASE-CR4 standard
• Short-range QSFP28 interconnect in enterprise networks

Key specifications

• Cable Type: Direct Attach Copper (DAC), Passive
• Connector Type: QSFP28 male to QSFP28 male
• Data Rate: 100 Gbps
• Ethernet Standard: 100GBASE-CR4
• Cable Length: 1 Meter
• Wire Gauge: 30 AWG
• Number of Data Lanes: 4
• Protocol Support: Ethernet
• Hot-Swappable: Yes
• Compatibility: NVIDIA 980-9I62S-00C001

Recommendations

For optimal performance, ensure your network equipment supports QSFP28 100GBASE-CR4 passive DAC cables. This cable is ideal for short, high-speed links within racks or adjacent racks. Always handle with care to avoid damage to connectors.
