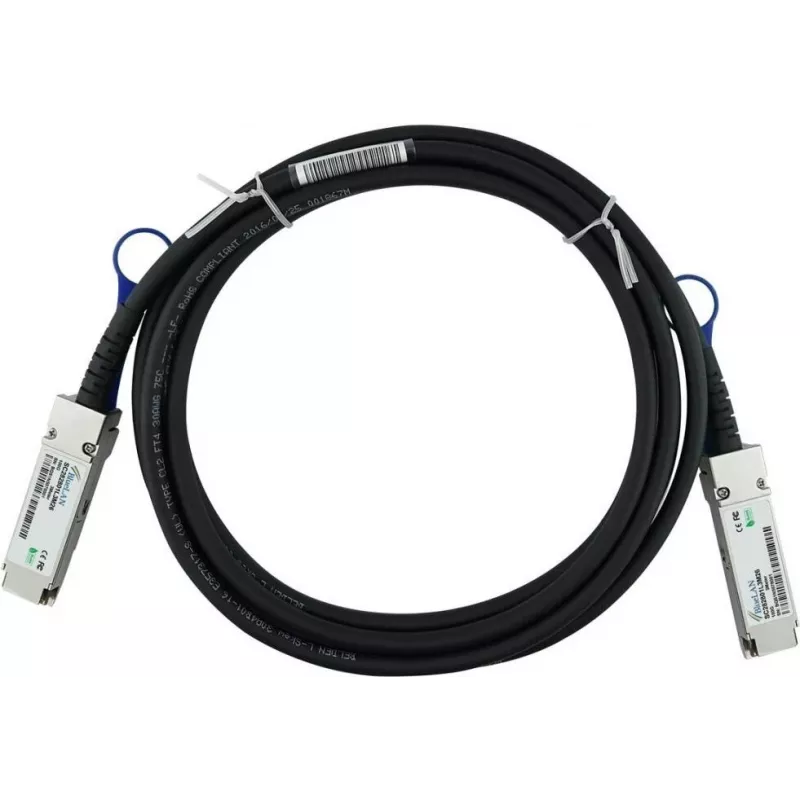

BlueLAN cavo Direct Attach QSFP28 compatibile con NVIDIA 980-9I62I-00C02A, 100GbE, 3m, DAC passivo

The BlueLAN 980-9I62I-00C02A-BL is a high-performance, cost-effective direct attach copper (DAC) cable designed for 100 Gigabit Ethernet connectivity. It is fully compatible with NVIDIA 980-9I62I-00C02A and other QSFP28 compliant devices, making it an ideal solution for data center interconnects, high-performance computing (HPC), and enterprise networking.

Advantages

This passive DAC cable offers low power consumption (0W) and hot-swappable capability, ensuring seamless integration and minimal downtime. With 26 AWG construction and PVC jacket, it provides reliable signal integrity over 3 meters. The cable supports 4x 25Gbps lanes for a total bandwidth of 100Gbps, meeting the demands of modern high-speed networks.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing clusters
• Enterprise network switches and routers
• Storage area networks (SAN)

Key specifications

• Cable Type: Direct Attach Copper (DAC), Passive
• Data Rate: 100 Gigabit Ethernet (100GbE)
• Standard: 100GBASE-CR4
• Connector Type: QSFP28 to QSFP28
• Cable Length: 3 meters (9.84 feet)
• AWG: 26 AWG
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Power Consumption: 0W
• Hot-Swappable: Yes
• Protocol Support: Ethernet
• Compliance: RoHS, CE, FCC

Recommendations

For optimal performance, ensure that both ends of the cable are connected to QSFP28 ports. This cable is a direct replacement for OEM NVIDIA 980-9I62I-00C02A and is backed by BlueLAN's quality assurance.
