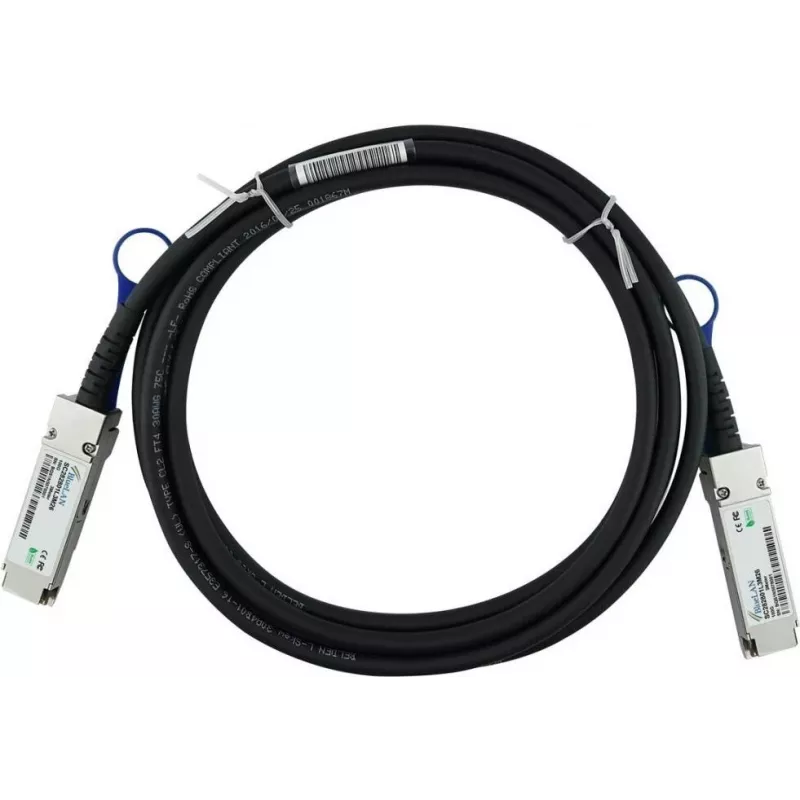

BlueLAN compatibile Dell G1TPV7A QSFP28 Direct Attach cavo, 100GBASE-CR4, 26AWG, 3m

The BlueLAN G1TPV7A-BL is a high-performance QSFP28 Direct Attach Cable (DAC) designed for 100 Gigabit Ethernet connectivity. This passive copper twinax cable provides a reliable, low-latency link for data center and enterprise networking applications. It is fully compatible with Dell G1TPV7A systems and other QSFP28 compliant ports.

Advantages

Cost-effective and energy-efficient alternative to optical transceivers with integrated cable assembly. Hot-swappable design ensures minimal downtime during installation or replacement. Compliant with RoHS, CE, and FCC standards for safe and reliable operation.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise networking switches and routers
• Dell PowerEdge servers and networking equipment

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Cable Type: Copper Twinax
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gbps
• Ethernet Standard: 100GBASE-CR4
• Cable Length: 3 meters
• Wire Gauge: 26 AWG
• Cable Construction: Passive
• Compatibility: Dell G1TPV7A systems, QSFP28 compliant ports
• Protocol Support: Ethernet
• Hot-Swappable: Yes
• Power Consumption: < 0.5W per end (typical)
• Impedance: 100 Ohm
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Compliance: RoHS, CE, FCC
• Application: Data Center, High-Performance Computing (HPC), Enterprise Networking
• Product Series: BlueLAN
• Dell Equivalent Part Number: G1TPV7A

Recommendations

For optimal performance, ensure your network equipment supports QSFP28 ports and 100GBASE-CR4 standard. This cable is ideal for short-range, high-speed connections within racks or between adjacent racks.
