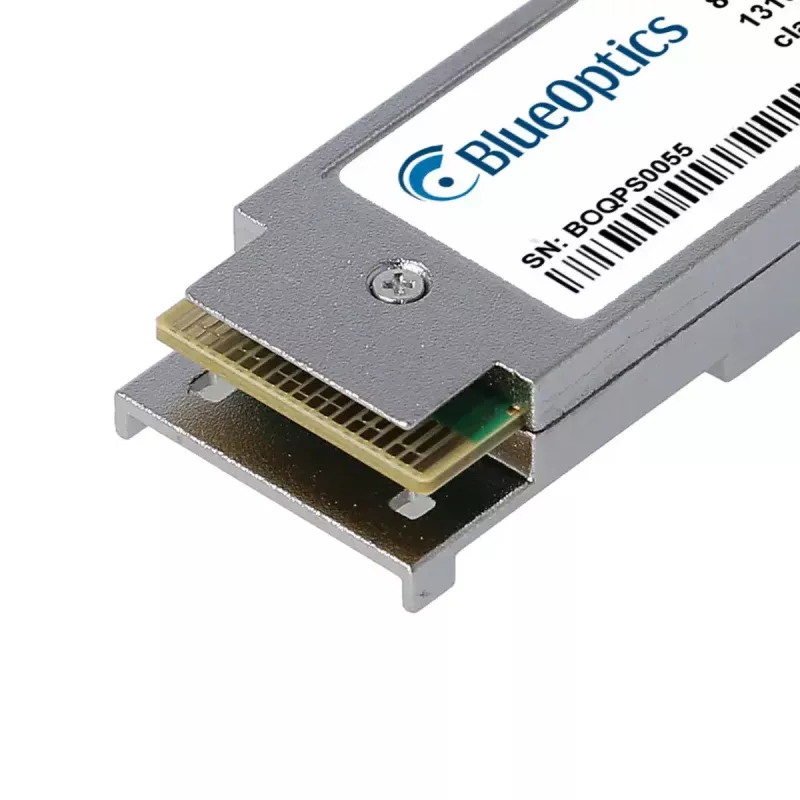

BlueOptics 980-9I17S-00HS00-BO modulo ricetrasmettitore di rete in fibra ottica 20000 Mbit/s QSFP56

The BlueOptics 980-9I17S-00HS00-BO network transceiver module is a QSFP56 fiber optic unit designed for high-speed multimode connections. With a maximum data transfer rate of 20000 Mbit/s and a compact silver housing weighing 40 g, the module supports optical transmission and reception at 850 nm and follows MSA-compliant MPO/MTP connectivity for short-range, high-bandwidth links. The transceiver offers a high MTBF of 3,000,000 hours, making it suitable for continuous operation in data centres and networking equipment that accept QSFP56 form-factor modules.

Advantages

The module combines a QSFP56 interface with MPO/MTP multimode fibre connectivity to provide a standardized, interoperable solution for short-reach 200G links. Its rated MTBF indicates long service life and predictable reliability, while the 850 nm transmit and receive wavelengths are optimized for multimode fibre performance. The lightweight, metal silver enclosure supports straightforward insertion into compatible QSFP56 ports and helps maintain signal and mechanical stability.

Suitable for

• High-density switch-to-switch and switch-to-server connections in data centres
• Short-reach 200G aggregation links over multimode fibre
• Compatibility testing and replacement in hardware platforms that accept QSFP56 MPO/MTP modules
• Use in routers, load balancers, storage systems and measuring equipment that support QSFP56 transceivers

Key specifications

• Interface type: QSFP56 form factor
• Maximum data transfer rate: 20000 Mbit/s
• Optical wavelength: 850 nm transmit and receive (multimode)
• Connector type: MPO/MTP (multimode)
• Mean time between failures (MTBF): 3,000,000 hours
• Weight: 0.04 kg
• Product colour: Silver

How to use

Install the BlueOptics QSFP56 transceiver into a compatible QSFP56 port on a switch, router or other networking device while the host port is powered down or following the vendor's hot-plug guidelines. Connect MPO/MTP multimode fibre cables to the module, ensuring correct polarity and clean, undamaged connectors. Configure the device's port settings and verify link status and negotiated speed in the network equipment management interface. Monitor the link for expected throughput and optical signal levels during initial deployment.

Recommendations

Ensure MPO/MTP connector endfaces are inspected and cleaned before mating, use multimode fibre rated for 850 nm transmission, and follow the host hardware vendor's compatibility and firmware guidance to maintain interoperability and stable 200G performance.
