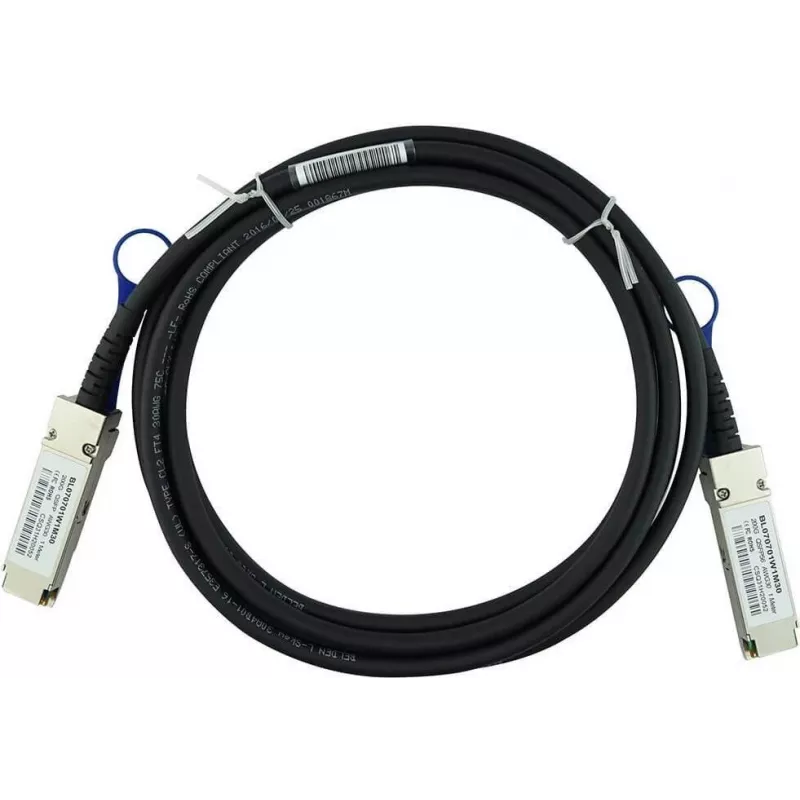

BlueOptics BL070701W1M30-BL Cavo Direct Attach Copper InfiniBand HDR 200G QSFP56 1m arancione

The BlueOptics BL070701W1M30-BL is a high-performance InfiniBand HDR Direct Attach Copper (DAC) cable designed for demanding high-performance computing (HPC) and data center environments. With a length of 1 meter and QSFP56 connectors on both ends, this passive cable delivers 200 Gbps data rates while maintaining low power consumption and excellent signal integrity.

Advantages

This cable offers a cost-effective and reliable solution for short-range InfiniBand interconnects. Its passive design ensures zero power consumption, reducing overall system energy costs. The 30 AWG copper construction provides optimal flexibility and durability, while the orange jacket enhances visibility for easy identification in dense cable runs.

Suitable for

• High-Performance Computing (HPC) clusters
• Data center top-of-rack to server connections
• Enterprise networking requiring 200 Gbps InfiniBand HDR links
• Storage area networks (SAN) with InfiniBand fabric

Key specifications

• Cable Type: InfiniBand Direct Attach Copper (DAC)
• Connector Type: QSFP56 to QSFP56
• Data Rate: 200 Gbps (HDR)
• Length: 1 meter
• AWG: 30
• Jacket Material: PVC
• Color: Orange
• Impedance: 100 Ohm
• Power Consumption: Passive (0W)
• Compliance: IBTA, RoHS
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C

Recommendations

For optimal performance in HDR InfiniBand networks, pair this cable with compatible QSFP56 transceivers and switches. Ensure proper cable management to maintain airflow and signal quality.
