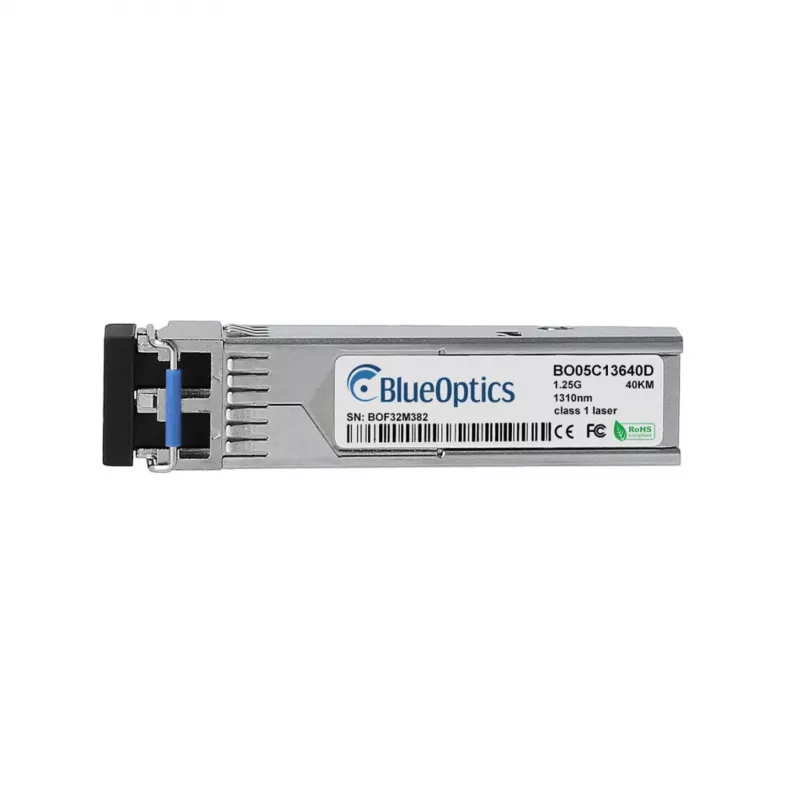

BlueOptics BO05C13640D ricetrasmettitore SFP compatibile Ruckus E1MG-LH-OM, LC Duplex, 1000BASE-LH, monomodale, 40 km

The BlueOptics BO05C13640D is a high-performance SFP transceiver designed for compatibility with Ruckus E1MG-LH-OM networking equipment. This hot-pluggable module delivers reliable Gigabit Ethernet connectivity over single-mode fiber, supporting distances up to 40 km. With a 1550 nm DFB laser and LC duplex connector, it is ideal for long-haul data transmission in enterprise and carrier networks.

Advantages

Cost-effective alternative to OEM modules without compromising performance. Fully MSA compliant and rigorously tested for seamless integration. Supports Digital Diagnostic Monitoring (DDM/DOM) for real-time monitoring of optical parameters. Low power consumption under 1.0 W ensures energy efficiency.

Suitable for

• Gigabit Ethernet (1000BASE-LH) applications
• Fiber Channel networks
• Long-distance single-mode fiber links up to 40 km
• Ruckus E1MG-LH-OM compatible systems

Key specifications

• Module Type: SFP
• Data Transfer Rate: 1.25 Gbps
• Wavelength: 1550 nm
• Max Transmission Distance: 40 km
• Fiber Type: Single-Mode Fiber (SMF)
• Connector Type: LC Duplex
• Interface Standard: 1000BASE-LH
• DDM/DOM Support: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: < 1.0 W
• Hot Swappable: Yes
• Compliance: MSA, RoHS, CE, FCC

Recommendations

For optimal performance, use with single-mode fiber optic cables (OS2) and ensure proper handling of LC connectors. This transceiver is a direct replacement for the Ruckus E1MG-LH-OM module.
