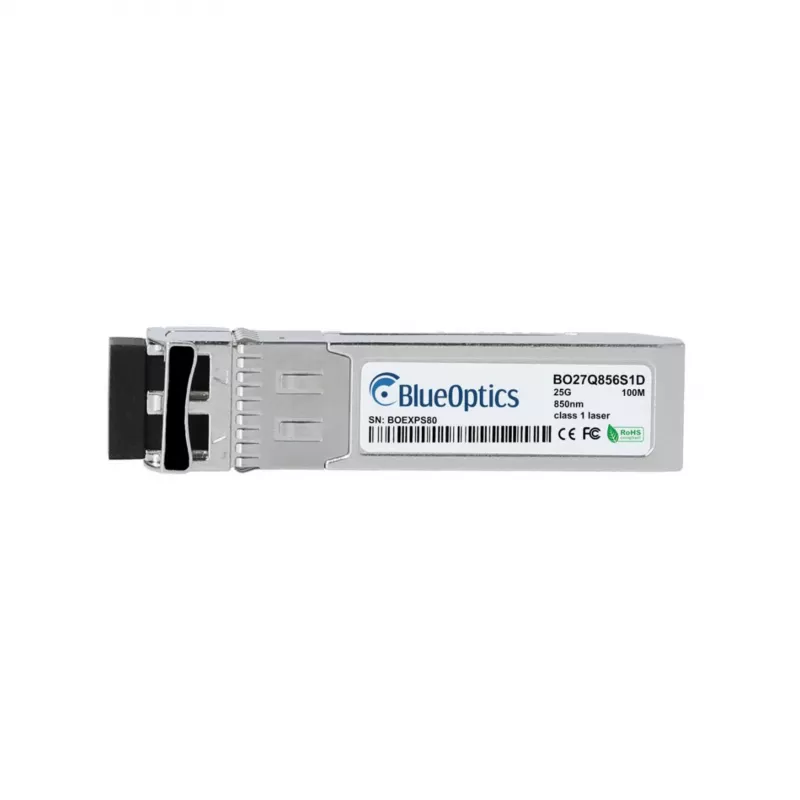

BlueOptics BO27Q856S1D ricetrasmettitore SFP28 Finisar FTLF8536P4BCV compatibile, LC Duplex, 25GBASE-SR, multimodale, 850nm, 100m

The BlueOptics BO27Q856S1D is a high-performance SFP28 transceiver designed to be fully compatible with Finisar FTLF8536P4BCV. It delivers reliable 25 Gigabit Ethernet connectivity over multimode fiber, making it an ideal solution for data centers and enterprise networks.

Advantages

This transceiver offers cost-effective compatibility without compromising performance. It supports hot-pluggable installation, digital diagnostics (DDM/DOM), and operates with low power consumption under 1.0W. The 850nm VCSEL transmitter ensures efficient signal transmission over OM3 (70m) and OM4 (100m) multimode fiber.

Suitable for

• 25 Gigabit Ethernet networks
• Data center interconnects
• Enterprise network upgrades
• High-speed storage and server connections

Key specifications

• Form Factor: SFP28
• Data Rate: 25 Gbps
• Standard: 25GBASE-SR
• Connector Type: LC Duplex
• Fiber Type: Multimode (MMF)
• Wavelength: 850 nm
• Max Reach (OM3): 70 m
• Max Reach (OM4): 100 m
• Transmitter: VCSEL
• Receiver: PIN Photodiode
• DDM/DOM: Yes
• Hot-Pluggable: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: < 1.0 W
• Compliance: RoHS, CE, FCC
• MSA Compliant: Yes

Recommendations

For optimal performance, use with OM4 multimode fiber to achieve maximum reach of 100 meters. Ensure your network equipment supports SFP28 standard and 25GBASE-SR.
