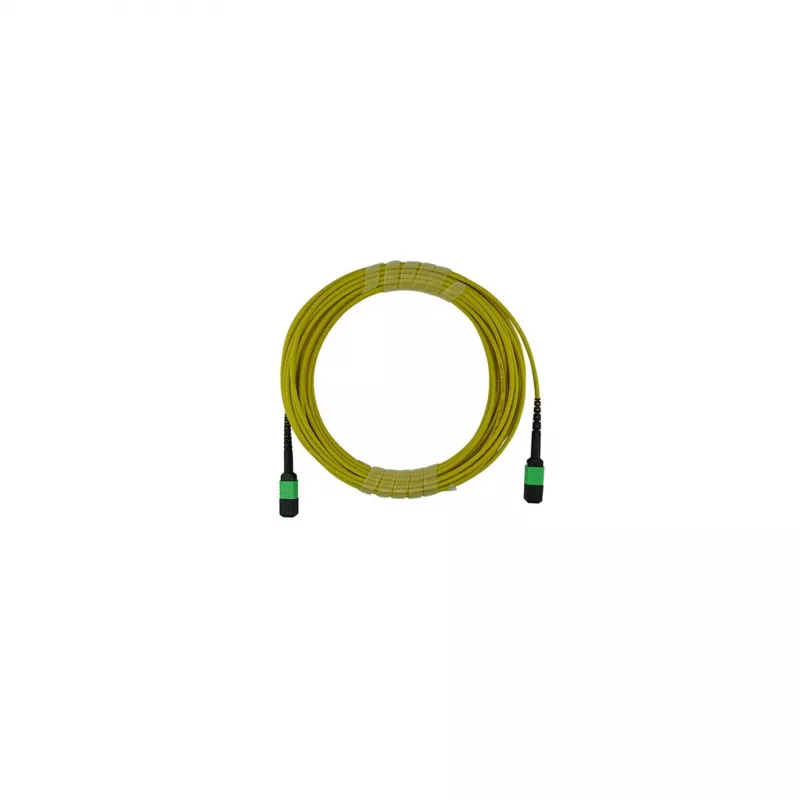

BlueOptics cavo trunk MPO monomodale 12 fibre 5 metri Type B

The BlueOptics MPO trunk cable is a high-performance fiber optic cable designed for data center and enterprise network applications. It features 12 singlemode fibers with MPO female connectors on both ends, polarity type B (cross-over), and a length of 5 meters. The cable is built with LSZH (Low Smoke Zero Halogen) jacket material in yellow color, ensuring safety and easy identification.

Advantages

This MPO trunk cable offers low insertion loss (≤0.35 dB) and high return loss (≥50 dB for APC), ensuring reliable signal transmission. The 9/125 µm core/cladding diameter supports high-speed data rates up to 40G/100G Ethernet. The LSZH jacket reduces toxic smoke in case of fire, making it suitable for indoor installations.

Suitable for

• Data center cabling infrastructure
• 40G/100G Ethernet networks
• Storage Area Networks (SAN)
• High-density fiber optic patching

Key specifications

• Cable Type: MPO Trunk Cable
• Fiber Mode: Singlemode (OS2)
• Fiber Count: 12 Fibers
• Connector Type: MPO Female to MPO Female
• Polarity: Type B (Cross-over)
• Cable Length: 5 Meters
• Jacket Material: LSZH
• Jacket Color: Yellow
• Insertion Loss: ≤0.35 dB
• Return Loss: ≥50 dB (APC)
• Operating Temperature: -10°C to +70°C
• Compliance: IEC 61754-7, TIA/EIA-604-5

Recommendations

For optimal performance, use with MPO adapters and ensure proper polarity alignment. This cable is ideal for backbone connections in structured cabling systems.
