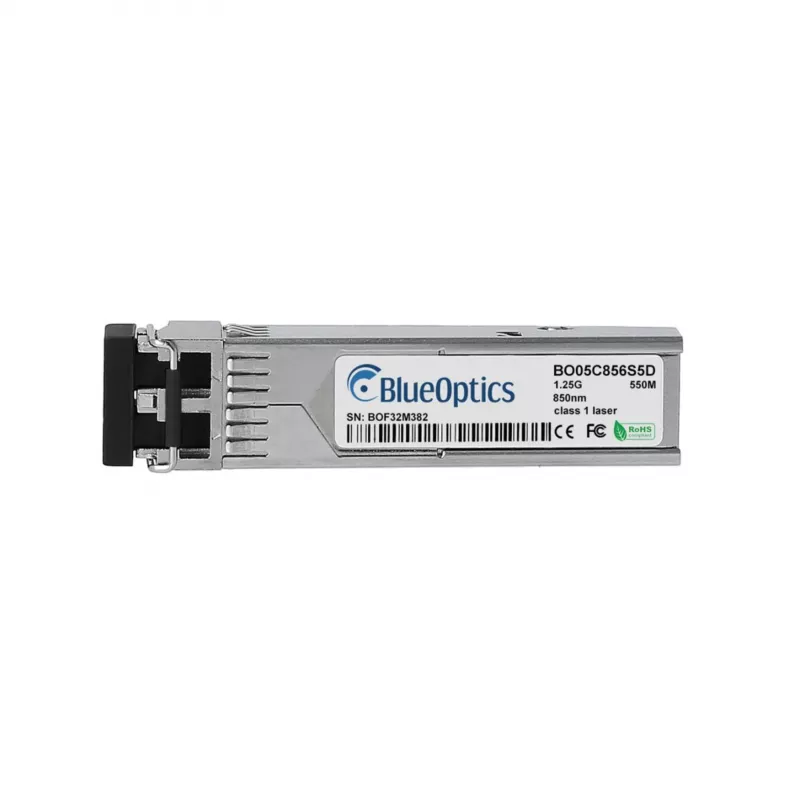

BlueOptics compatibile Finisar FTLF8519P2xNL SFP ricetrasmettitore BO05C856S5D, 1000BASE-SX, LC Duplex, multimodale, 850nm, 550m

The BlueOptics BO05C856S5D is a high-performance SFP transceiver module designed to be fully compatible with Finisar FTLF8519P2xNL and MSA compliant devices. It delivers reliable Gigabit Ethernet connectivity over multimode fiber, making it an ideal solution for enterprise networks, data centers, and telecommunications applications.

Advantages

This transceiver offers cost-effective compatibility with leading networking equipment, ensuring seamless integration without compromising performance. With support for Digital Diagnostic Monitoring (DDM/DOM), network administrators can monitor real-time parameters such as temperature, voltage, and optical power for proactive maintenance. The hot-swappable design simplifies installation and reduces downtime.

Suitable for

• Gigabit Ethernet (1000BASE-SX) networks
• Fiber Channel applications
• Data center interconnects
• Enterprise LAN and campus networks
• Telecommunications infrastructure

Key specifications

• Form Factor: SFP (Small Form-Factor Pluggable)
• Data Rate: 1.25 Gbps
• Wavelength: 850 nm
• Max Distance: 550 m (on OM2/OM3 Multimode Fiber)
• Connector Type: LC Duplex
• Fiber Type: Multimode Fiber (MMF)
• Interface: 1000BASE-SX
• DDM/DOM Support: Yes
• Power Consumption: < 1.0 W
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Hot-Swappable: Yes
• Standards Compliance: IEEE 802.3z, SFP MSA
• Laser Type: VCSEL
• MTBF: > 1,000,000 hours
• Warranty: 5 Years
• RoHS Compliant: Yes

Recommendations

For optimal performance, use with OM3 or OM4 multimode fiber cables. Ensure your network equipment supports SFP MSA standards. This module is a direct replacement for Finisar FTLF8519P2xNL and is backed by a 5-year warranty.
