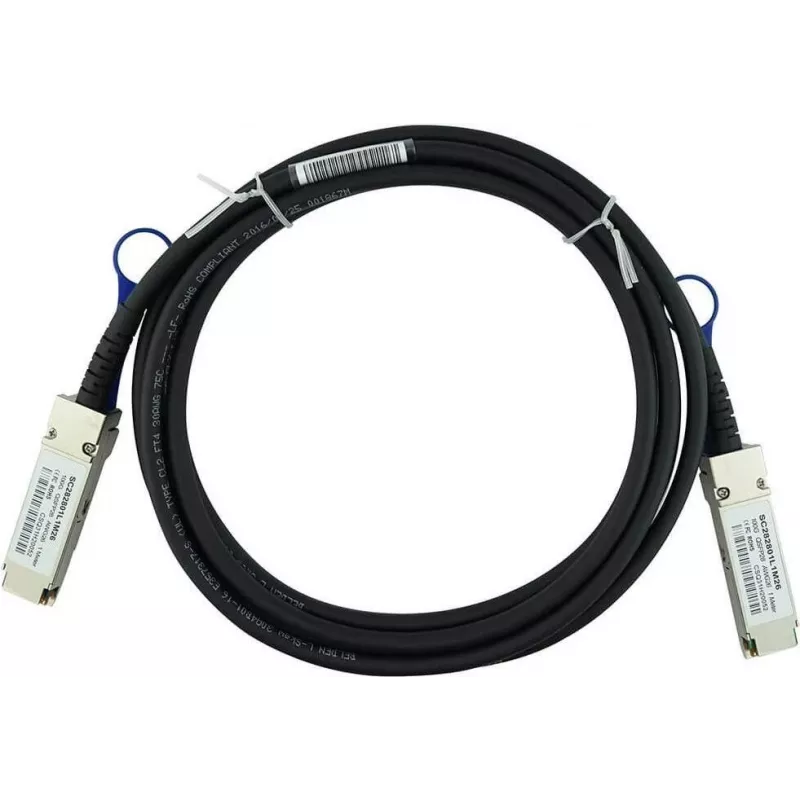

BlueOptics Edge Core ET7402-DAC-0.5M compatibile Direct Attach Copper cavo, 100GBASE-CR4, InfiniBand EDR, 30AWG, 0,5m (ET7402-DAC-0.5M-BL)

The BlueOptics ET7402-DAC-0.5M-BL is a high-performance, cost-effective direct attach copper (DAC) cable designed for seamless compatibility with Edge Core ET7402-DAC-0.5M networking equipment. This passive QSFP28 to QSFP28 cable delivers 100 Gbps data rates, supporting both 100GBASE-CR4 Ethernet and InfiniBand EDR standards. Ideal for data center interconnects and high-performance computing (HPC) environments, it ensures reliable, low-latency connections over a 0.5-meter length with 30 AWG wire gauge.

Advantages

This BlueOptics DAC cable offers a cost-efficient alternative to OEM cables without compromising performance. It is fully compliant with SFF-8665 electrical interface standards and is backed by rigorous testing for compatibility and reliability. The passive design ensures ultra-low power consumption (<0.1W), making it an energy-saving choice for dense deployments. With a durable PVC jacket and operating temperature range of 0°C to 70°C, it is built for long-term use in demanding environments.

Suitable for

• Data center top-of-rack (ToR) to server connections
• High-performance computing (HPC) clusters
• InfiniBand EDR networks
• 100 Gigabit Ethernet (100GBASE-CR4) applications
• Edge Core ET7402-DAC-0.5M compatible systems

Key specifications

• Cable Type: Direct Attach Copper (DAC)
• Data Rate: 100 Gbps
• Ethernet Standard: 100GBASE-CR4
• InfiniBand Standard: EDR (Enhanced Data Rate)
• Connector Type (End 1): QSFP28
• Connector Type (End 2): QSFP28
• Cable Length: 0.5 Meter
• Wire Gauge: 30 AWG
• Compatibility: Edge Core ET7402-DAC-0.5M
• Protocol Support: Ethernet, InfiniBand
• Cable Material: Copper
• Transceiver Type: Passive
• Form Factor: QSFP28 to QSFP28
• Electrical Interface: SFF-8665
• Power Consumption: < 0.1W
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Application: Data Center Interconnect, High-Performance Computing (HPC)
• Compliance: RoHS, CE, FCC

Recommendations

For optimal performance, ensure your networking equipment supports QSFP28 form factor and 100GBASE-CR4 or InfiniBand EDR standards. This cable is a direct replacement for Edge Core ET7402-DAC-0.5M and is fully compatible with other standard QSFP28 ports. For longer distances, consider active optical cables or transceivers.
