BlueOptics H-SR-SFP+A-BO modulo ricetrasmettitore di rete in fibra ottica 10000 Mbit/s

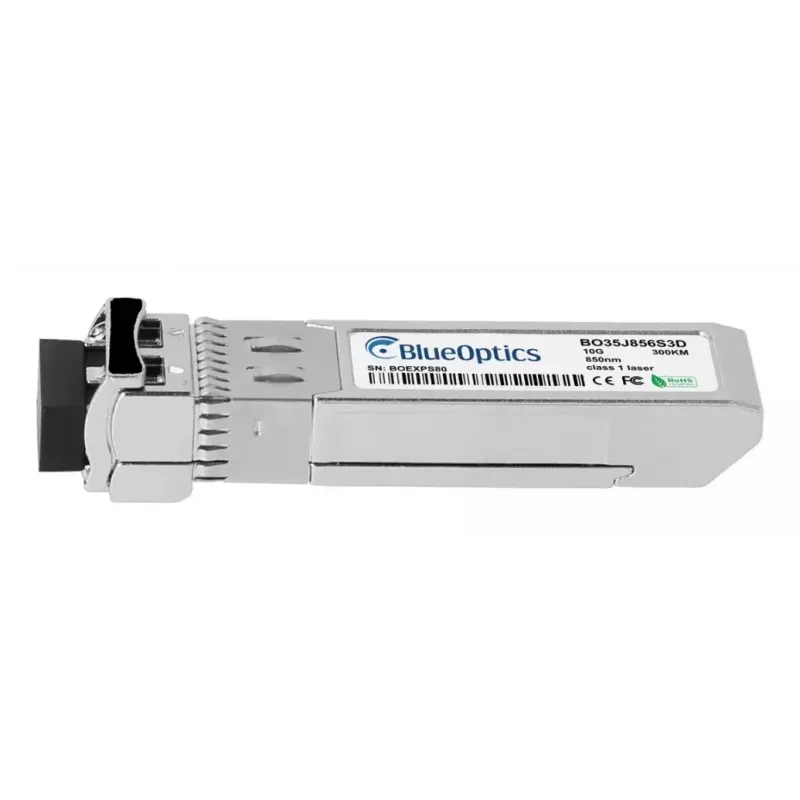

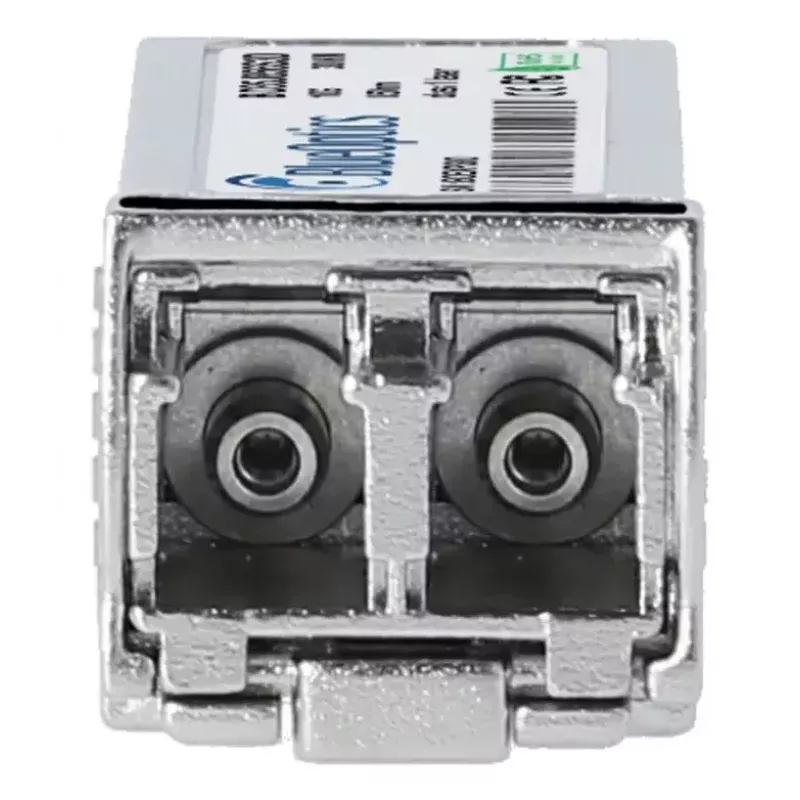

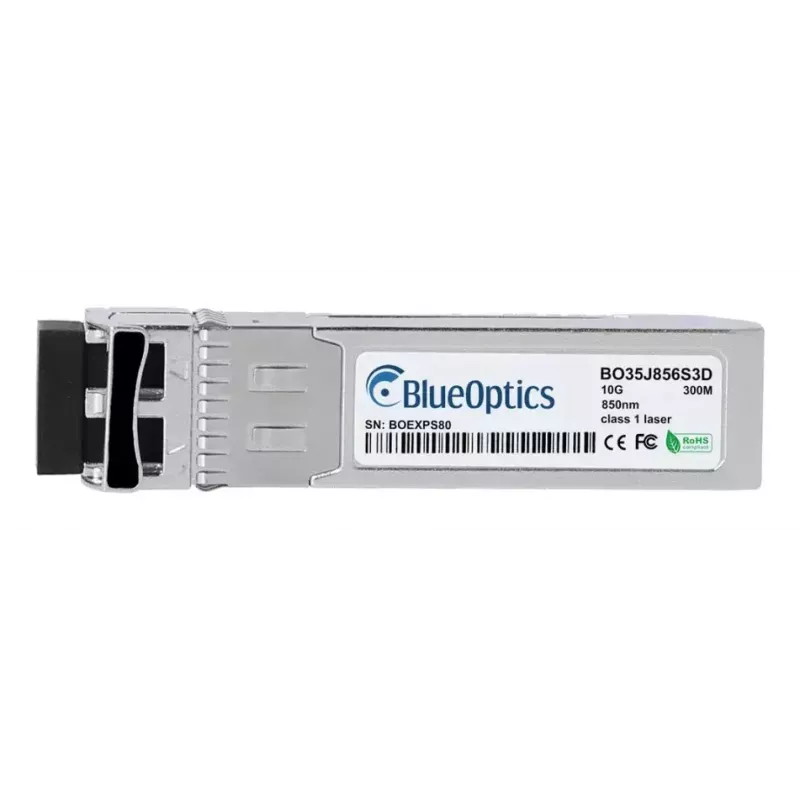

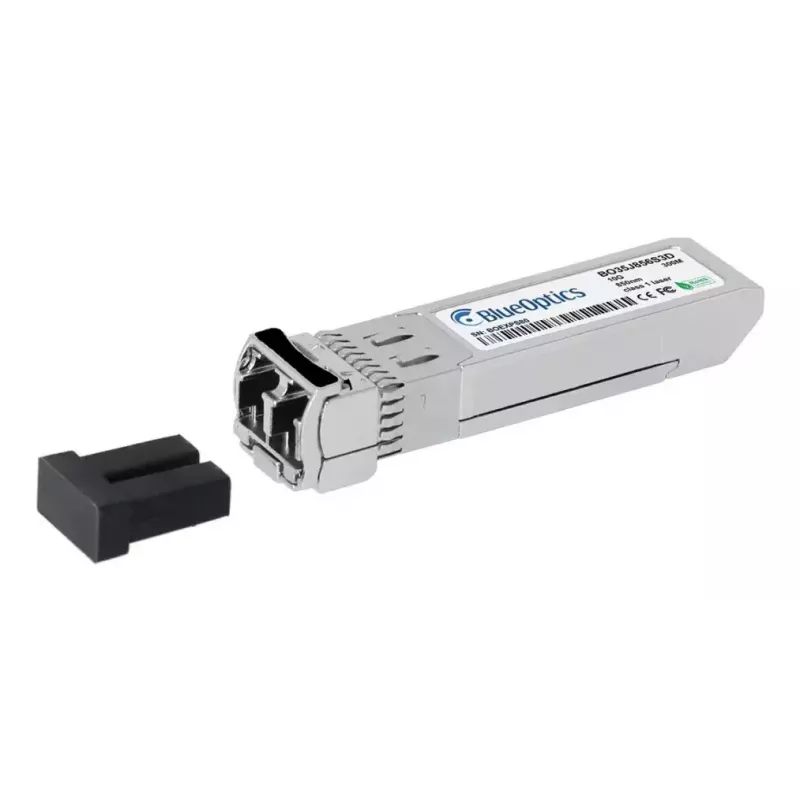

The BlueOptics H-SR-SFP+A-BO network transceiver module is a compact SFP+ fiber optic unit designed for 10 Gbit/s multimode links. It uses LC duplex connectors and implements 10GBASE-SR physical layer operation with 850 nm transmitter and receiver optics. The module follows MSA form-factor standards for SFP+ and is intended for installation in switches, routers, storage systems and other networking equipment that accept SFP+ modules. The transceiver is CE, RoHS and FCC compliant, weighs approximately 20 g and is finished in a silver housing that fits typical high-density ports.

Advantages

The module provides 10 Gbit/s data transfer over multimode fiber with separate transmit and receive channels, enabling simultaneous bidirectional optical communication. Built and tested according to MSA standards, it is compatible with a wide range of hardware platforms and includes digital diagnostic monitoring (DDM/DOM) for real-time status reporting of voltage, temperature, laser output/input power and laser bias current. Use of industry-grade laser and IC components supports long operational life and high availability in demanding network environments.

Suitable for

Key specifications

How to use

Insert the SFP+ transceiver into a compatible SFP+ slot in powered-off or hot‑swappable equipment according to the host device manufacturer’s instructions. Connect LC duplex multimode fiber patch cables to the module’s LC ports, observing correct TX/RX orientation. After installation, verify link status and, if available, read DDM/DOM parameters through the host platform for monitoring voltage, temperature and optical power. Follow the equipment vendor’s guidance for module hot-plugging, interface configuration and firmware compatibility checks.

Recommendations

For reliable short-reach 10 Gbit/s links, use quality OM3 or OM4 multimode fiber with matching LC duplex patch cables, ensure proper TX/RX polarity, and confirm that the host device supports SFP+ modules and DDM if diagnostic monitoring is required. Handle the transceiver by its housing, avoid touching optical interfaces, and keep protective dust caps on unused ports.
