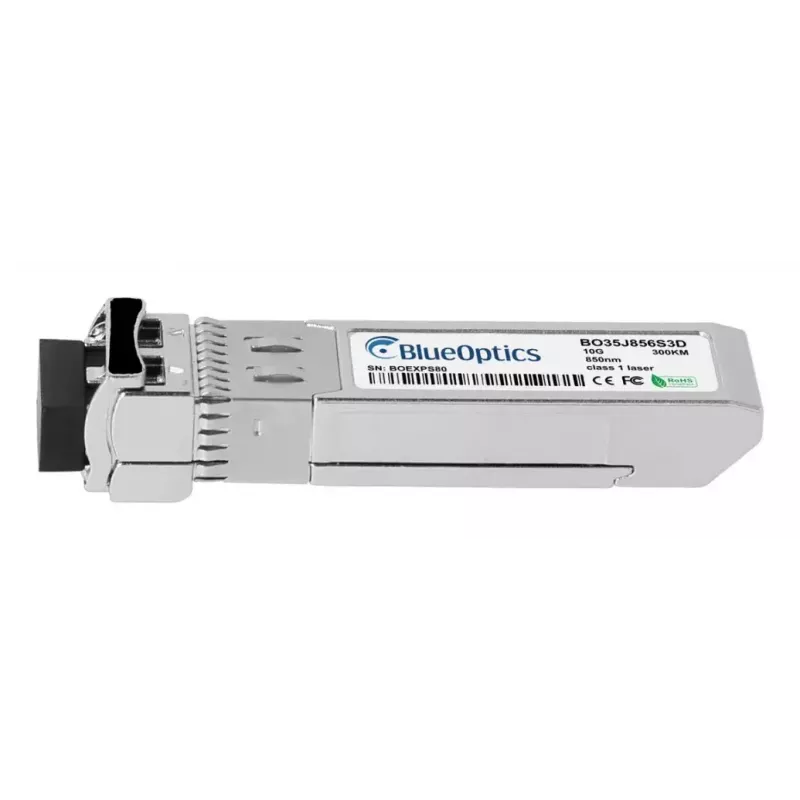

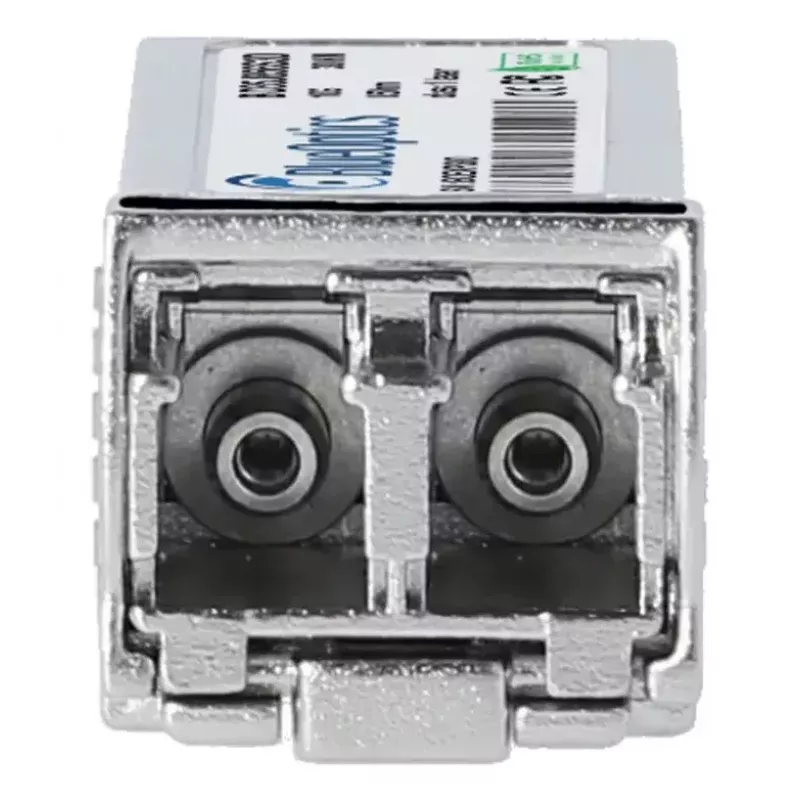

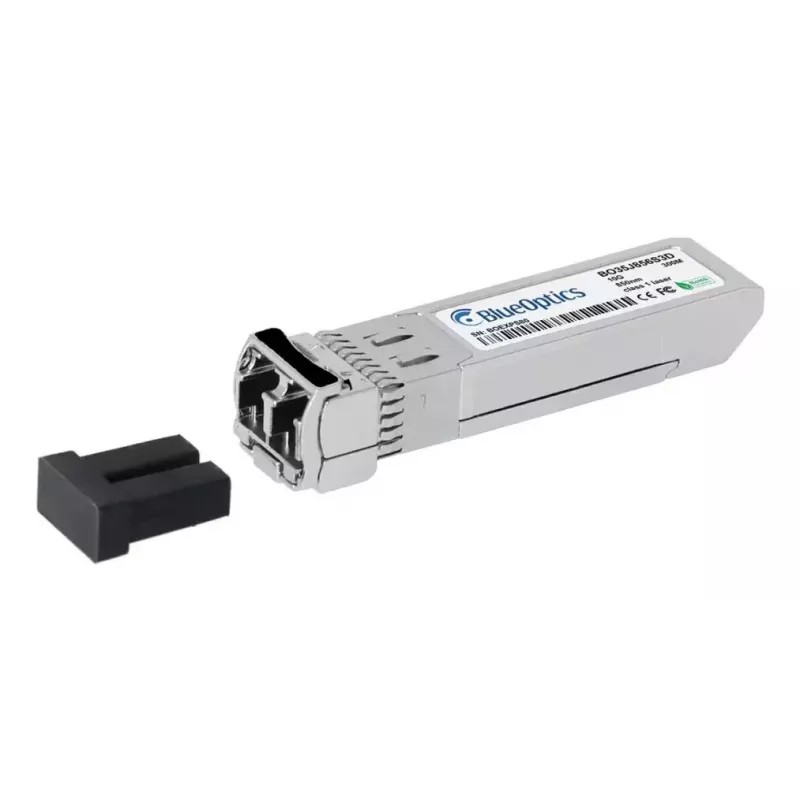

BlueOptics H-SR-SFP+-BO modulo ricetrasmettitore di rete in fibra ottica 10000 Mbit/s SFP+

The BlueOptics H-SR-SFP+-BO is a 10G SFP+ fiber optic transceiver module designed for short-range multimode fiber links. Supporting a maximum data transfer rate of 10000 Mbit/s and an LC Duplex connection, this silver-form-factor module implements 10GBASE-SR functionality with 850 nm transmit and receive wavelengths. It is compact and lightweight (approximately 20 g) and complies with CE, RoHS and FCC standards. The module includes Digital Diagnostics Monitoring (DDM/DOM) capability for real-time reporting of supply voltage, laser current, optical power and temperature when supported by the host device.

Advantages

The transceiver follows MSA (Multi-Source Agreement) mechanical and electrical specifications, ensuring interoperability with common network hardware that accepts SFP+ modules. Built from selected components such as quality lasers and ICs, the module is engineered for extended service life and high availability, with MTBF values suitable for continuous operation. Optical links using this module are immune to electromagnetic interference and support parallel transmit and receive channels via LC Duplex connectors.

Suitable for

Key specifications

How to use

Install the BlueOptics SFP+ transceiver into an empty SFP+ port on a switch, router or other compatible device while the host is powered according to the device vendor’s instructions. Connect multimode LC Duplex patch cables between paired modules or to a patch panel, ensuring proper handling of fiber connectors to avoid contamination. If the host supports DDM/DOM, monitor supply voltage, optical power and temperature through the host management interface for link health and diagnostics. Follow equipment vendor guidelines for hot-plugging and for any required firmware or compatibility settings.

Recommendations

Use factory-cleaned LC connectors and appropriate multimode fiber (OM3/OM4 recommended for optimal short-range 10G performance). Verify compatibility with the host device’s SFP+ acceptance list and enable DDM/DOM in the host when remote diagnostics are required. Avoid excessive bending of fiber cables and store spare modules in antistatic packaging.
