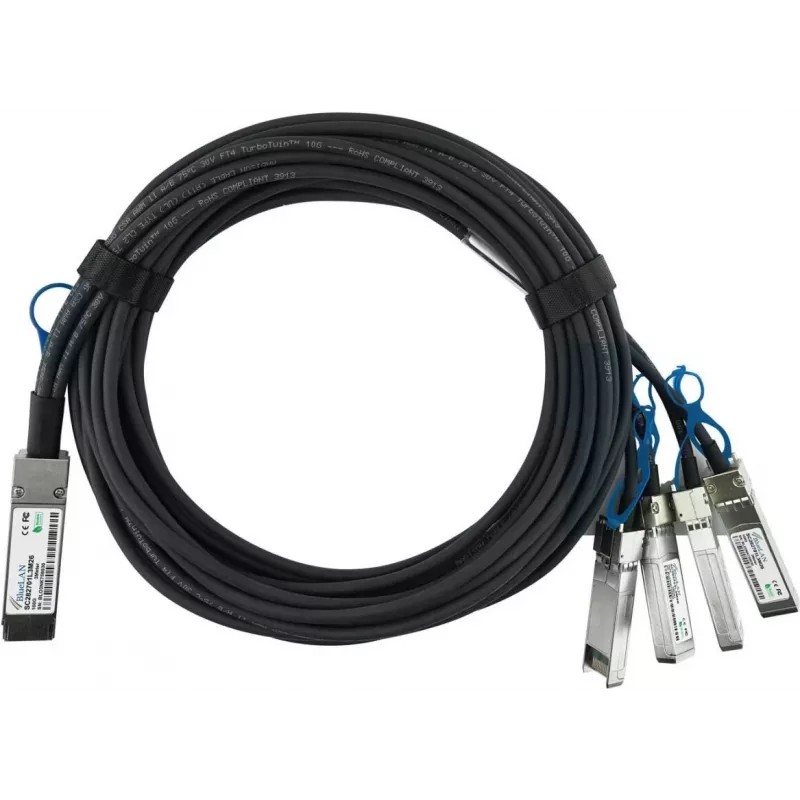

BlueOptics H3C compatibile QSFP-100G-4SFP-25G-CAB-5M-BL cavo breakout Direct Attach passivo 5m

The BlueOptics QSFP-100G-4SFP-25G-CAB-5M-BL is a high-performance passive direct attach copper breakout cable designed for 100 Gigabit Ethernet connectivity. It converts a single QSFP28 port into four independent 25 Gigabit SFP28 links, providing a cost-effective and low-power solution for data center interconnects, server-to-switch, and switch-to-switch applications. This cable is fully compatible with H3C equipment and complies with IEEE 802.3bj and SFF standards.

Advantages

This breakout cable offers significant advantages over active optical cables or transceivers: ultra-low power consumption (passive design), high reliability, and reduced cost per port. The 5-meter length with 26 AWG wire gauge ensures optimal signal integrity for short-range high-speed connections. Hot-pluggable QSFP28 and SFP28 connectors enable easy installation and maintenance without network downtime.

Suitable for

• Data center top-of-rack (ToR) to server connections
• High-performance computing clusters
• Enterprise network aggregation
• H3C compatible switches and routers

Key specifications

• Product Type: Direct Attach Cable (DAC) Breakout
• Connector A: QSFP28 (100GBASE-CR4)
• Connector B: 4x SFP28 (25GBASE-CR)
• Data Rate: 100 Gbps aggregate (4x 25 Gbps per lane)
• Cable Length: 5 meters (16.4 feet)
• Wire Gauge: 26 AWG
• Impedance: 100 Ohm
• Compliance: IEEE 802.3bj, SFF-8665, SFF-8402, RoHS
• Hot-Pluggable: Yes
• Power Consumption: Passive (no external power required)

Recommendations

For optimal performance, ensure that both the host switch and the connected devices support 100GBASE-CR4 and 25GBASE-CR standards respectively. This cable is ideal for short-distance, high-bandwidth links within racks or adjacent racks. Always verify compatibility with your specific H3C model before deployment.
