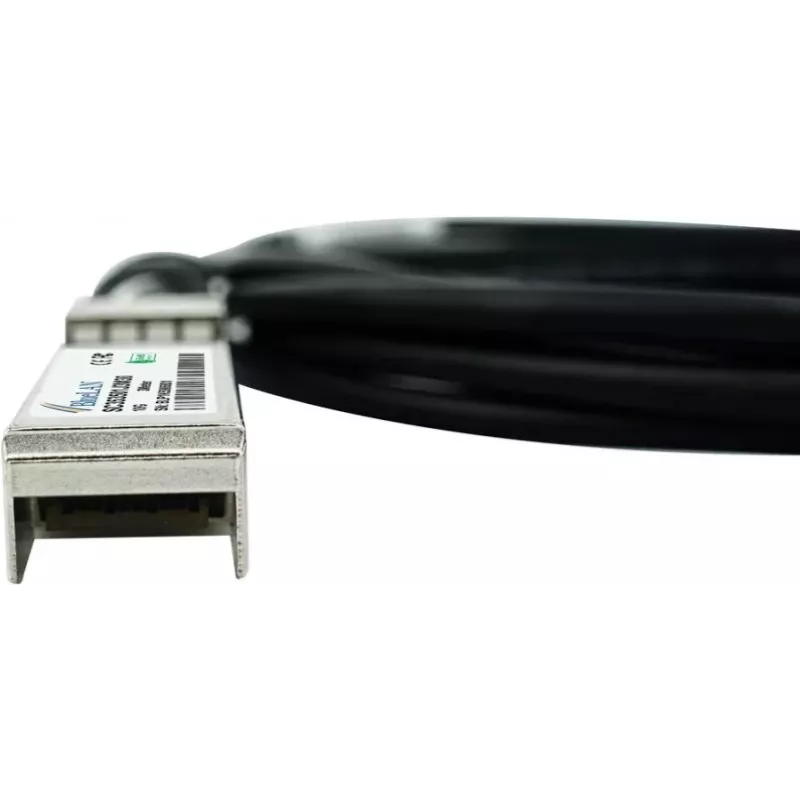

BlueOptics Hirschmann SFP-10-DAC-2m cavo Direct Attach SFP+ passivo BlueLAN 10GBASE-CR compatibile, 2 metri, AWG30

The BlueOptics Hirschmann SFP-10-DAC-2m compatible BlueLAN DAC SFP+ cable is a high-performance, passive copper direct attach cable designed for 10 Gigabit Ethernet connections. It provides a cost-effective and reliable solution for short-range interconnects within data centers, enterprise networks, and storage area networks (SAN). With a length of 2 meters and AWG30 gauge, this cable ensures low power consumption and high signal integrity.

Advantages

This direct attach cable eliminates the need for separate transceivers and fiber optic cabling, reducing cost and complexity. It is hot-swappable and MSA compliant, ensuring compatibility with a wide range of SFP+ ports. The passive copper design consumes less than 0.1W per end, making it energy-efficient. The cable is certified RoHS, CE, and FCC, guaranteeing compliance with international standards.

Suitable for

• Data center top-of-rack and end-of-row connections
• Enterprise network server and switch interconnects
• Storage area network (SAN) links
• High-performance computing clusters

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Cable Type: SFP+ to SFP+
• Data Rate: 10 Gigabit Ethernet (10GbE)
• Standard: 10GBASE-CR, IEEE 802.3ae, SFF-8431 (SFP+ MSA)
• Cable Length: 2 Meter (6.56 ft)
• Cable Gauge: AWG30
• Cable Construction: Passive Copper
• Connector Type: SFP+
• Compatibility: Hirschmann SFP-10-DAC-2m, MSA Compliant SFP+ Ports
• Protocol Support: 10GBASE-CR, Fibre Channel over Ethernet (FCoE)
• Hot-Swappable: Yes
• Power Consumption: < 0.1W per end
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Certifications: RoHS, CE, FCC
• Voltage Supply: 3.3V (from host SFP+ port)

Recommendations

For optimal performance, ensure that both ends of the cable are connected to SFP+ ports that support 10GBASE-CR standard. This cable is ideal for short-distance, high-speed connections within racks or between adjacent racks. It is recommended for use in environments where low latency and high reliability are critical.
